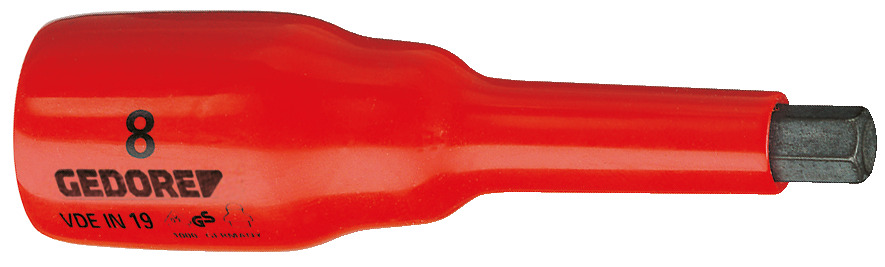

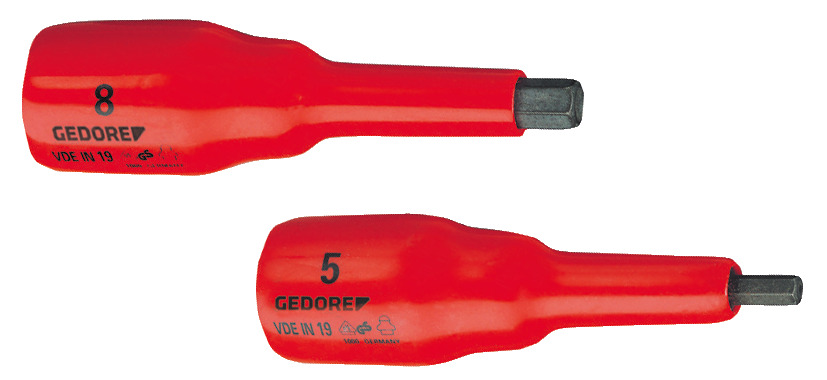

VDE IN 19 VDE Screwdriver bit socket 1/2″ for in-hex screws

Order Code: 5677

Specifications

About this product

  • With pressed-in pin
  • With square drive as per DIN 3120 - C 12.5, ISO 1174, with ball retaining groove
  • Tip made of GEDORE vanadium special steel
  • VDE insulation up to 1000 V, acc. to EN 60900/IEC 60900, two-ply Check-Tool insulation
  • These inserts can only be combined with No. VDE 1991, VDE 1993 U, VDE 1990, VDE 4508-05

Information

  • Contents (Qty of pieces):1
  • Total length [mm]:106 mm
  • Drive mount, square [metric]:12,5 mm
  • Total width [mm]:27 mm
  • Material:Chrome-vanadium steel 31CrV3
  • Drive connector square [inch]:1/2"
  • Working length:106,0 mm
  • Surface:2-fold Check-Tool insulation
  • Standard:DIN 3120 – C 12,5 ISO 1174 EN 60900/IEC60900
  • REACH:compliant
  • Safety:Ball Catching Cricket
  • Insert Ø Actuator:27 mm
