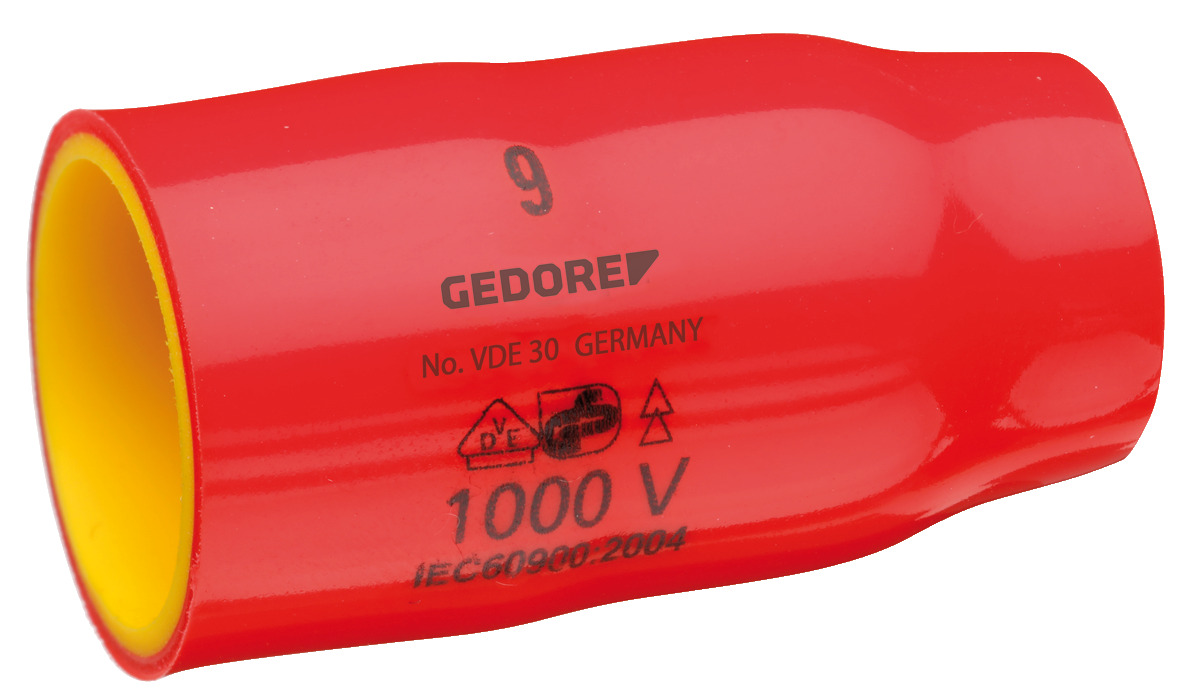

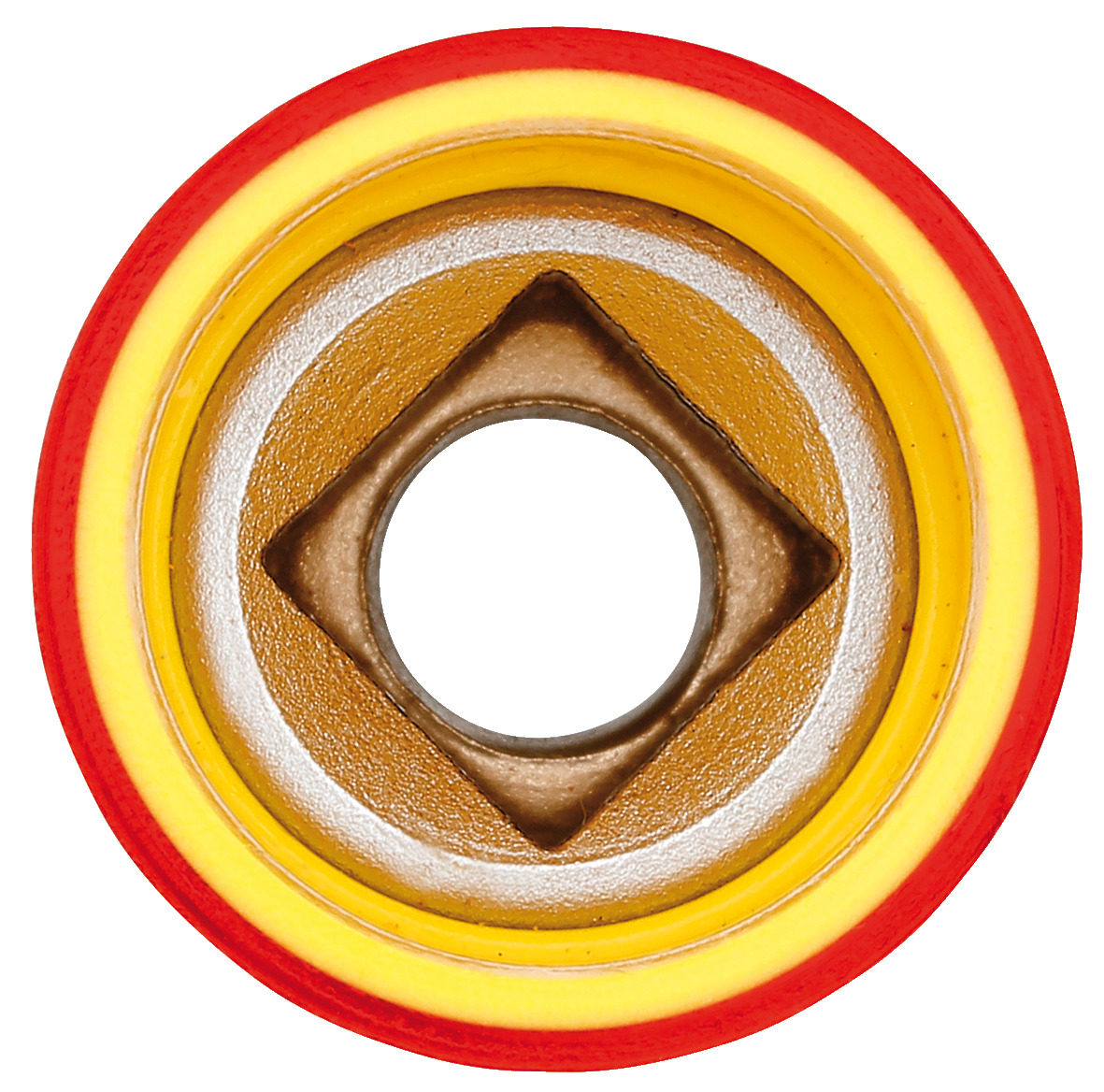

VDE 30 VDE Socket 3/8″

Order Code: 5739

Specification

About this product

  • hexagonal, manually operated
  • With square drive as per DIN 3120 - C 10, ISO 1174
  • Gedore vanadium steel 31CrV3
  • protective insulation up to 1000 V, according to EN 60900/IEC 60900, 2-fold Check-Tool insulation
  • 16 - 18 mm insulation overhang

Information

  • Contents (Qty of pieces): 1 tlg.
  • Total length [mm]: 44 mm
  • Drive connector square fem: 10,0 mm
  • Material: Chrome-vanadium steel 31CrV3
  • Drive connector square fem: 3/8"
  • Working length: 44,0 mm
  • Insert-Ø 2: 23,0 mm
  • Surface: 2-fold Check-Tool insulation, VDE insulated up to 1000 V
  • Standard: ISO 1174 EN 60900/IEC60900
  • REACH registration available: 0
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
