Acc. to DIN EN ISO 6789, traceable to national standards
Robust workshop construction
Wide measuring range in Nm, can be switched to cNm, lbf·ft or lbf·in
The backlight allows the display to be read even in poor lighting conditions
Characteristics:
Torque and torque angle measure
4 different measuring modes
Factory-supplied with factory calibration certificate in accordance with GEDORE's in-house standard GTTWN001, traceable to national standards
Calibration according to DKD-R 3-7 Class 1 including calibration certificate with accreditation symbol (optional)
Programmable with different gauges for insertion tools
Free evaluation PC software included
Measurement accuracy torque angle +/- 1 %, but min. +/- 1° on 360° with min. 4°/sec
Different depth gauges for end fittings programmable
Simple to operate with easy to understand Icon-menu navigation and 4 functional keys
Clearly readable, illuminated LCD display
Resolution torque: 0.1 Nm
Resolution torque angle: 0.1°

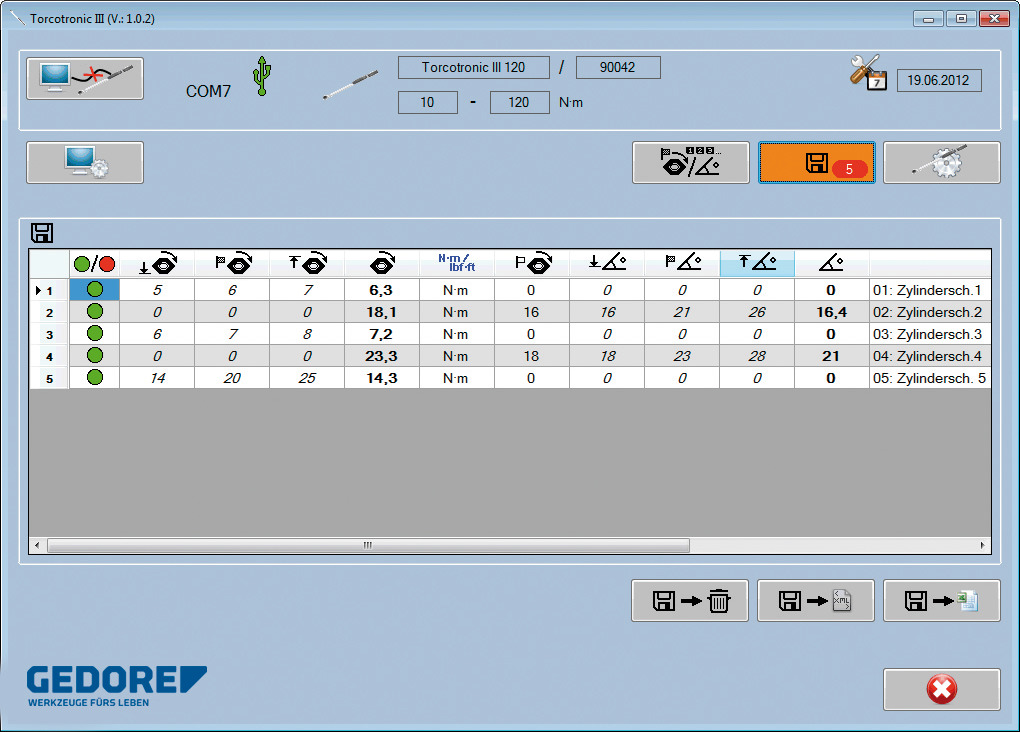

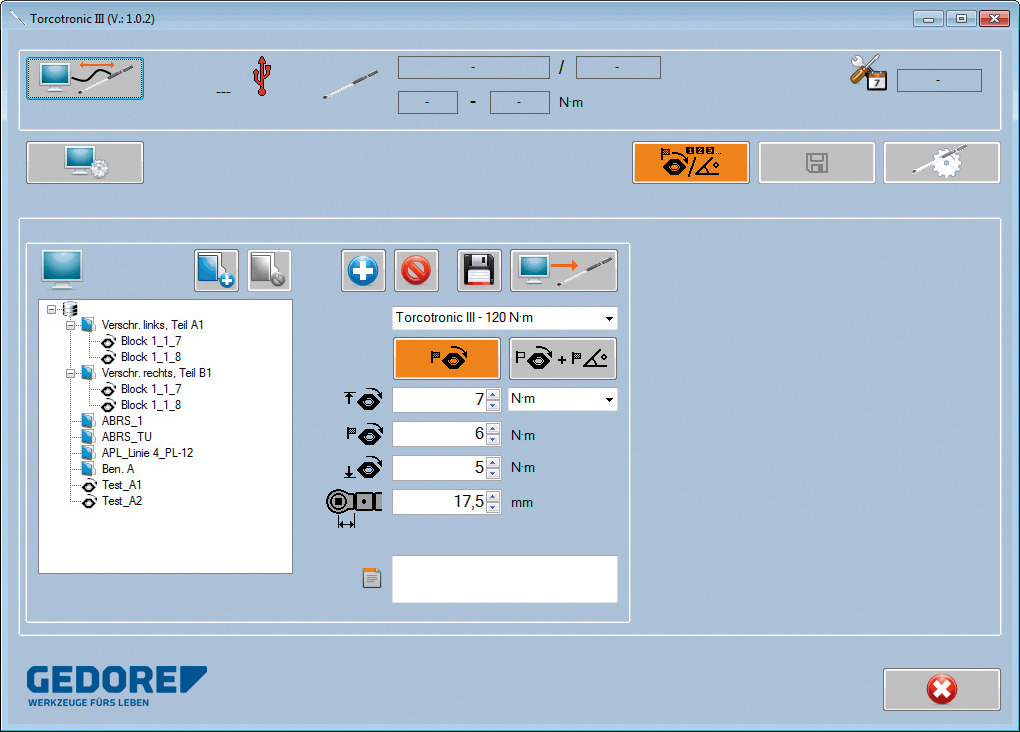

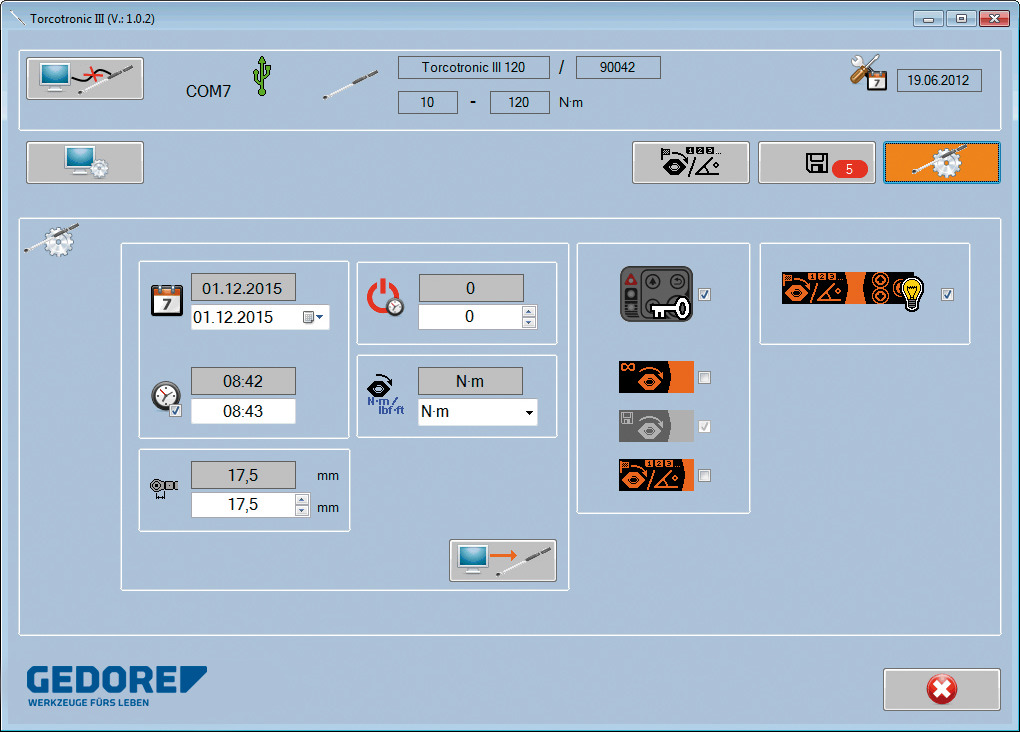

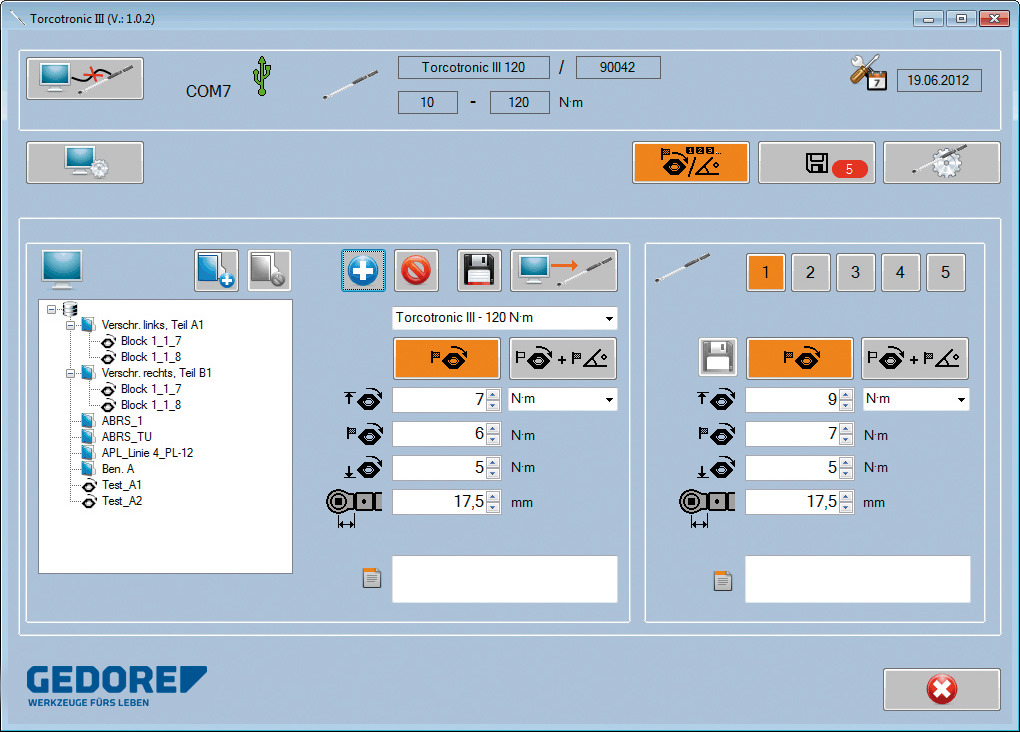

PC-software easy to operate for uncomplicated programming and documentation of data
Data can be transfered to MS Excel®
Keyboard lock
Operation with standard Mignon AA or optional with rechargeable-battery (NiMH)
Visual signal: 3x LED (yellow, green, red)
Acoustic signal: buzzer
TÜV SÜD approved, CE and RoHS
Information
Drive square inch:1/2"
Contents (Qty of pieces):1
Drive connector square [metric]:12,5 mm
Epa-/Esd-Model:0
Drive type/drive:Rectangular cavity
REACH:compliant
Measurement accuracy:± 1% Toleranz vom Ablesewert, ± 1 Digit
Interface:USB
Graphic display:0
Measuring acc.angle rotation:±1% , min. ±1° auf 360° bei mind. 4°/sec.
Evaluation software:1
Precision +/-:+/- 1 %
Tightening direction:Left and right
Fixed setting:0
Target groups:Automotive
Industry
Construction and commercial vehicles
Military
Energy
Mechanical engineering
Workshop
Utilities
Service
Railway
Agriculture
Oil & Gas
Range of application:Assembly
Series assembly
Production
Quality control
Maintenance and repair
