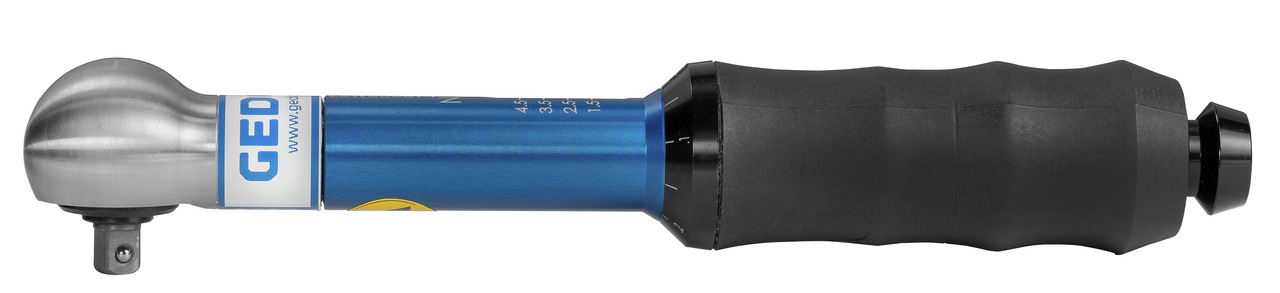

TSC Torque wrench SLIPPER N·m

Order Code: 4596

Specification

About this product

  • Use:
  • Controlled screw tightening in the most common range of 1 - 10 N·m
  • Ideal for assembly work where controlled tightening with low torque values is required (e.g. electronic hardware sector, precision mechanics etc.)
  • Features:
  • Adjustable torque wrench - with scale
  • 1/4" square drive with ball locking device
  • With integrated ratchet-function for controlled clockwise tightening
  • Working accuracy: +/- 6 % tolerance of set torque
  • Acc. to DIN EN ISO 6789, traceable to national standards
  • Precision mechanism slips very noticeably and audibly ("click") when the pre-set value is achieved - over-tightening is not possible
  • Micrometre scale graduation: 0,05 N·m bzw. 0,1 N·m
  • 2 models in the range 1 - 10 N·m
  • Lightweight, but robust and corrosion-resistant construction design
  • Very convenient non-slip rubber handgrip
  • EPA-conformant (Electrostatic Protected Area), for use in sensitive electrostatic applications
  • Scope of delivery:
  • Torque wrench Typ TSC SLIPPER
  • Test certificate acc. to DIN EN ISO 6789
  • Delivery in sturdy cardboard packaging

Information

  • Net weight [g]: 235 g
  • Drive connector square male: 1/4"
  • Contents (Qty of pieces): 1 tlg.
  • Total length [mm]: 195 mm
  • Drive connector square male: 6,3 mm
  • Epa-/Esd-Model: 1
  • Drive type/drive: Single square ratchet
  • REACH registration available: 0
  • Net weight [kg]: 0,235 kg
  • Trigger mechanism: Friction clutch
  • Precision +/-: +/- 6 %
  • Tightening direction: Right
  • Fixed setting: 0
  • Test certificate: DIN EN ISO 6789-2:2017
  • Target groups: Automotive Electronics industry Industry Precision mechanics Military Mechanical engineering Service Control cabinet construction
  • Range of application: Assembly Series assembly Production Quality control Maintenance and repair
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
