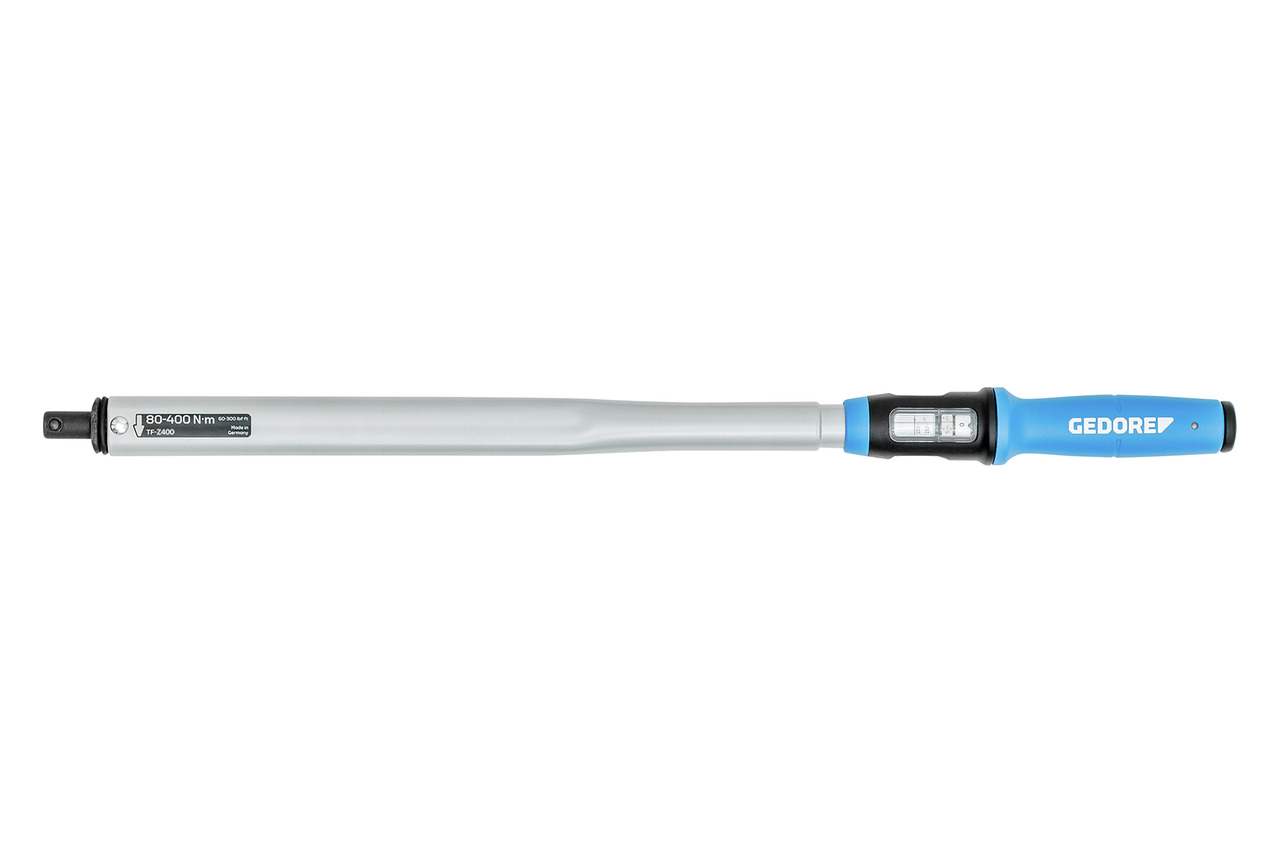

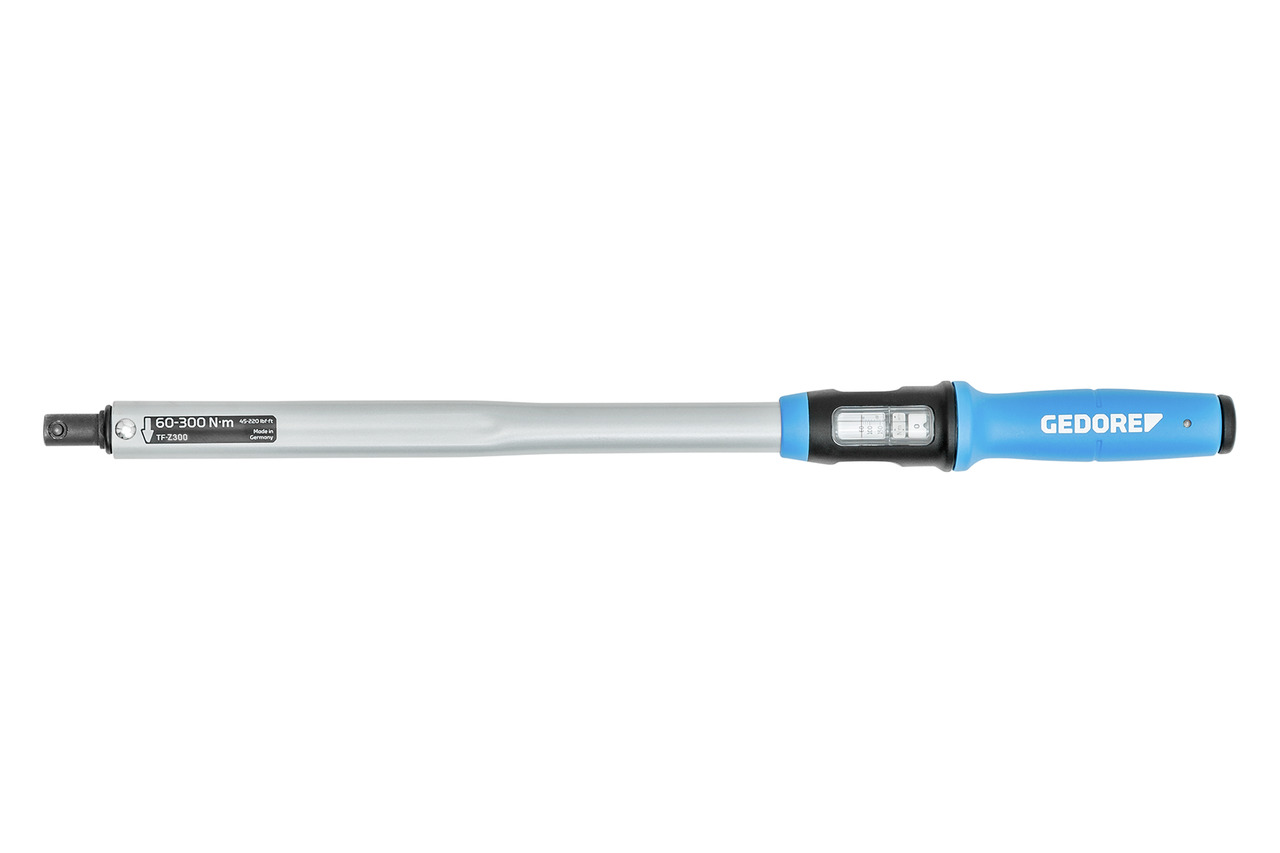

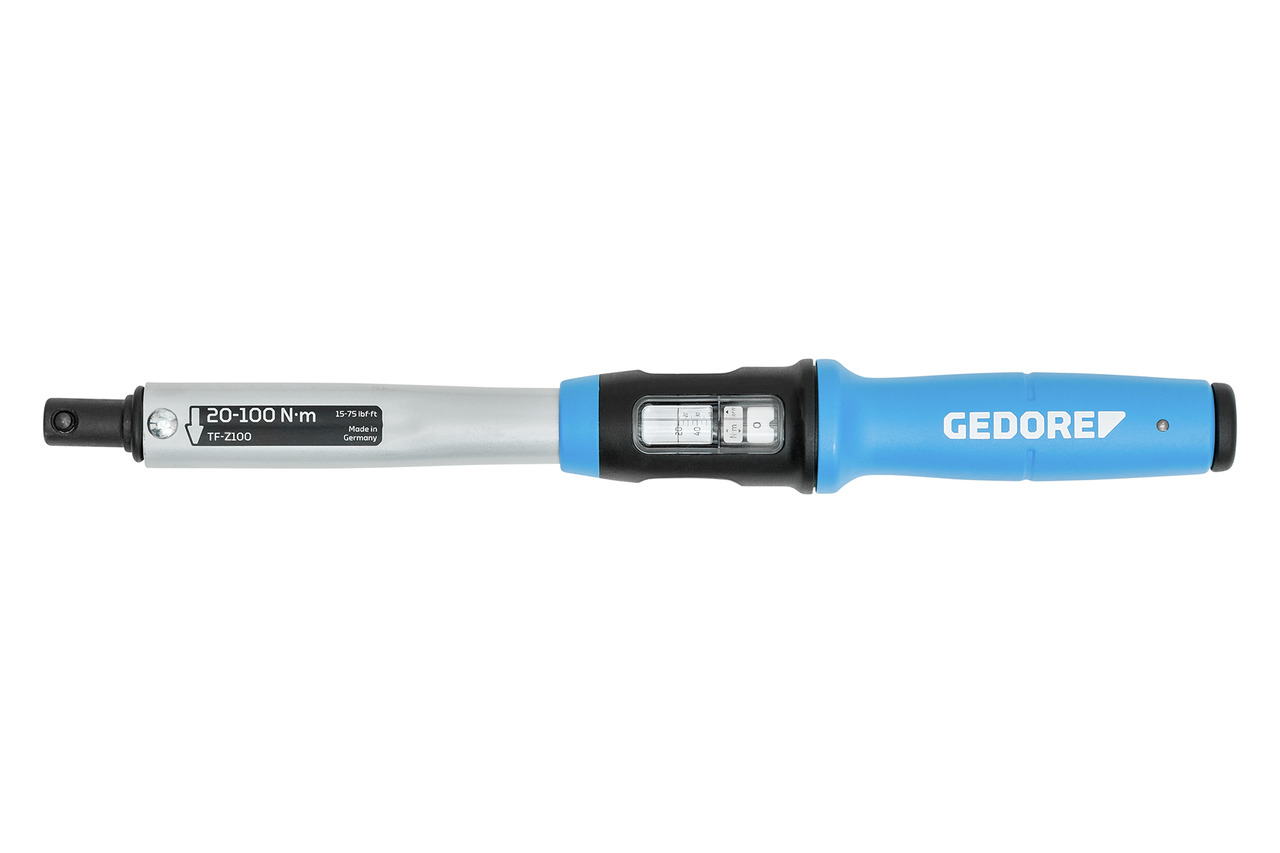

TF‑Z Torque wrench TORCOFIX Z

Order Code: 165212

Specifications

About this product

  • Socket:
  • Controlled screw tightening in the range of 5 - 850 Nm / 3,7 - 630 lbf·ft
  • Adjustable, releasing and sturdy tubular torque wrench with spigot end for industry and the trades
  • Features:
  • Classified as per DIN EN ISO 6789-2:2017 Type II Class A; adjusted to a maximum permissible +/-3 % deviation and thus with a greater precision than the standard-stipulated +/-4 %
  • Incl. traceable test certificate (DIN EN ISO 6789-2:2017)
  • For controlled right- and left-hand tightening (change tool for changing direction)
  • Trunnion mounting in the versions Ø 16 mm and Ø 22 mm
  • Factory depth gauge: 32 mm (Ø 16 mm) or 56 mm (Ø 22 mm)
  • Robust, matt powder-coated tubular steel construction, with galvanized ratchet and high-quality plastic parts
  • New ergonomic handle, shaped according to the natural grip position of the hand
  • Clearly recognisable and tactile hand centring aid and calibration aid in the middle of the handle
  • Double scale Nm / lbf·ft and vernier are protected from abrasion and contamination by an enlarged viewing window
  • With vernier scale for Nm main scale for setting intermediate scale values; lbf-ft setting only via main scale
  • Vertical alignment of the scale, torque adjustment therefore suitable for left and right handers
  • Scale line positioned directly above the scale prevents reading errors (parallax errors)
  • Unit labeling integrated in the scale frame and also protected by viewing windows,
  • Precise jump-off mechanism generates a clearly perceptible and audible trigger signal when the set torque value is reached
  • Incl. roll away protection, prevents rolling away when the tool is put down

Information

  • Contents (Qty of pieces):1
  • Torque range (min./max.) [Nm]:-
  • Torque range (min./max.):-
  • Material:Tubular steel construction
  • Drive type/drive:Drive pin
  • REACH:compliant
  • Graduation [lbf·ft]:10 lbf·ft
  • Safety:Locking pin
  • Trigger mechanism:Short path triggering
  • Precision +/-:+/- 3 %
  • Tightening direction:Left and right
  • Fixed setting:0
  • Test certificate:DIN EN ISO 6789-2:2017
  • Scale division [Nm]:10 Nm
  • Target groups:Automotive Industry Construction and commercial vehicles Military Energy Mechanical engineering Utilities Service Agriculture Oil & Gas
  • Range of application:Assembly Series assembly Production Maintenance and repair
