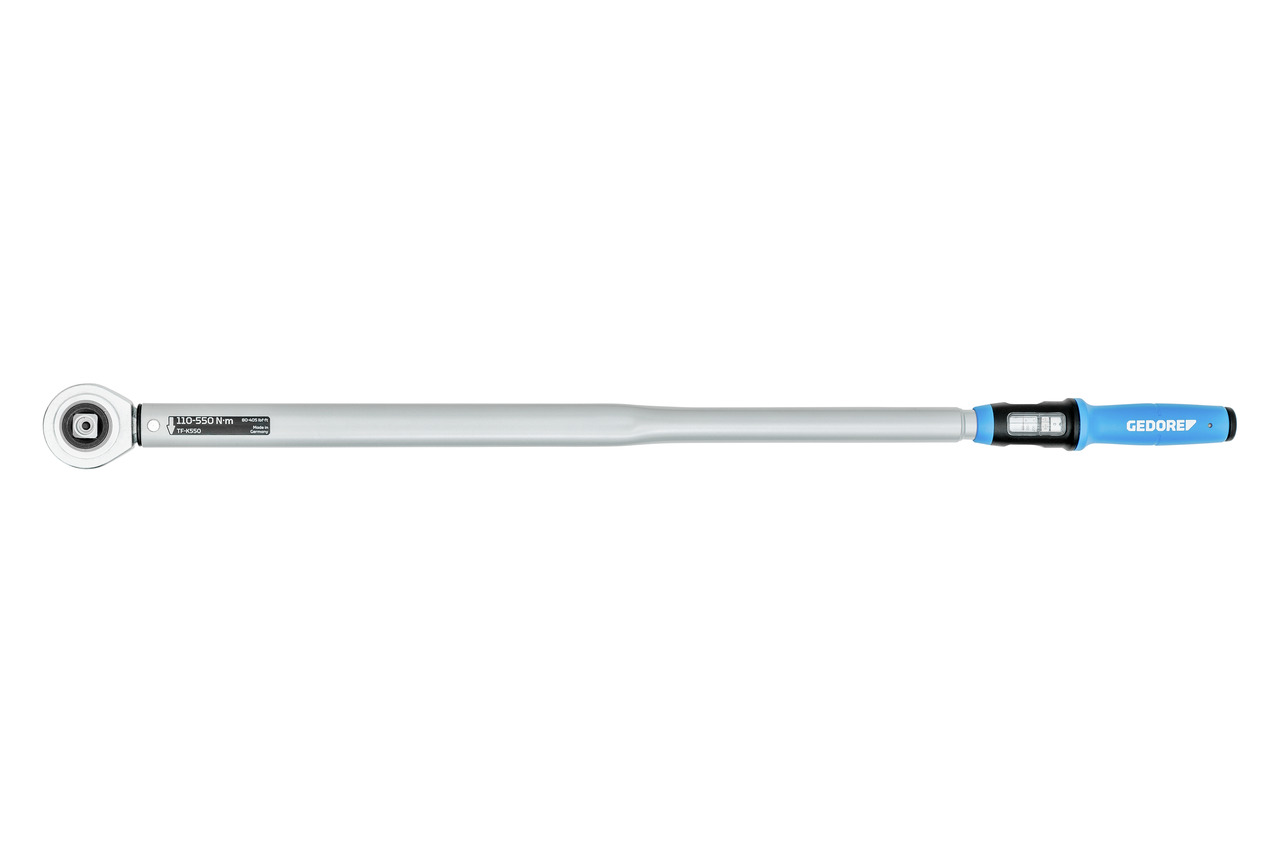

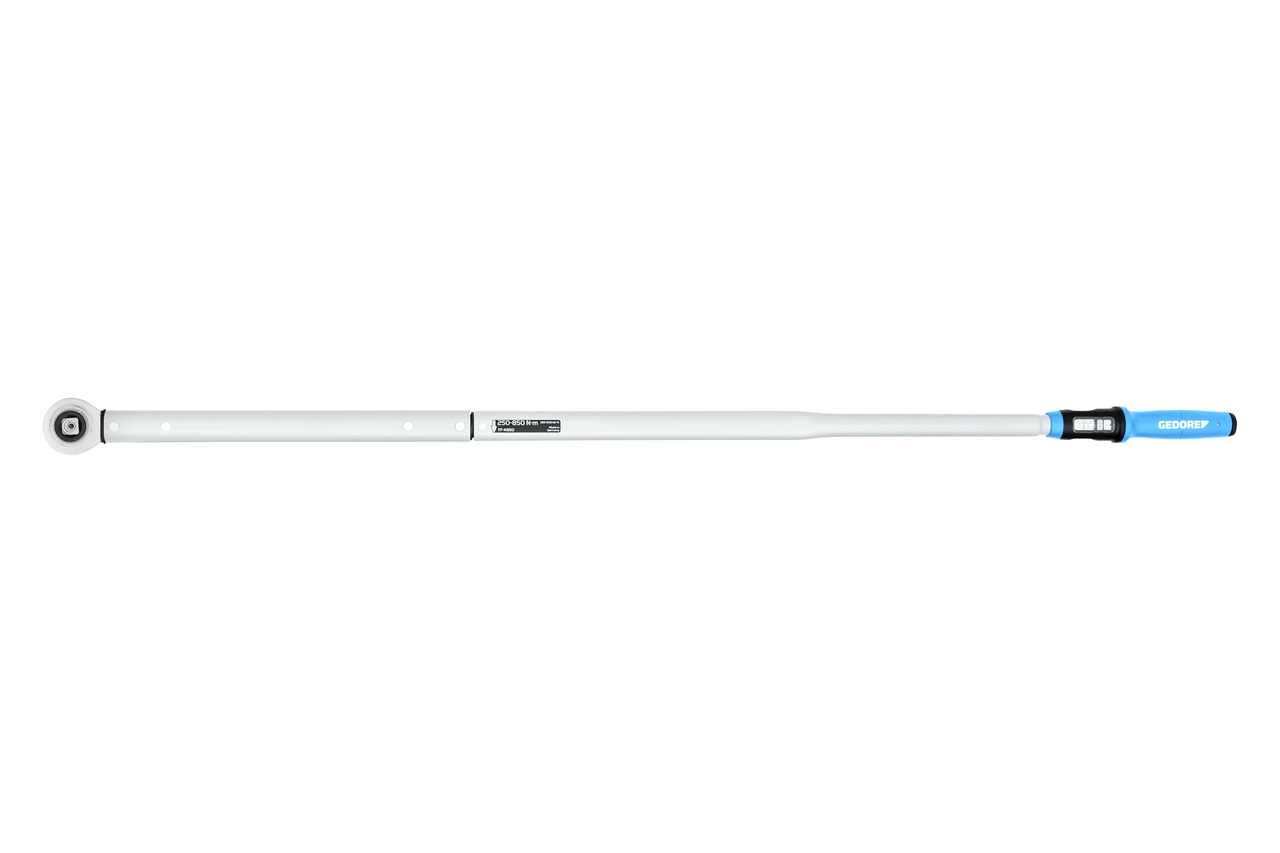

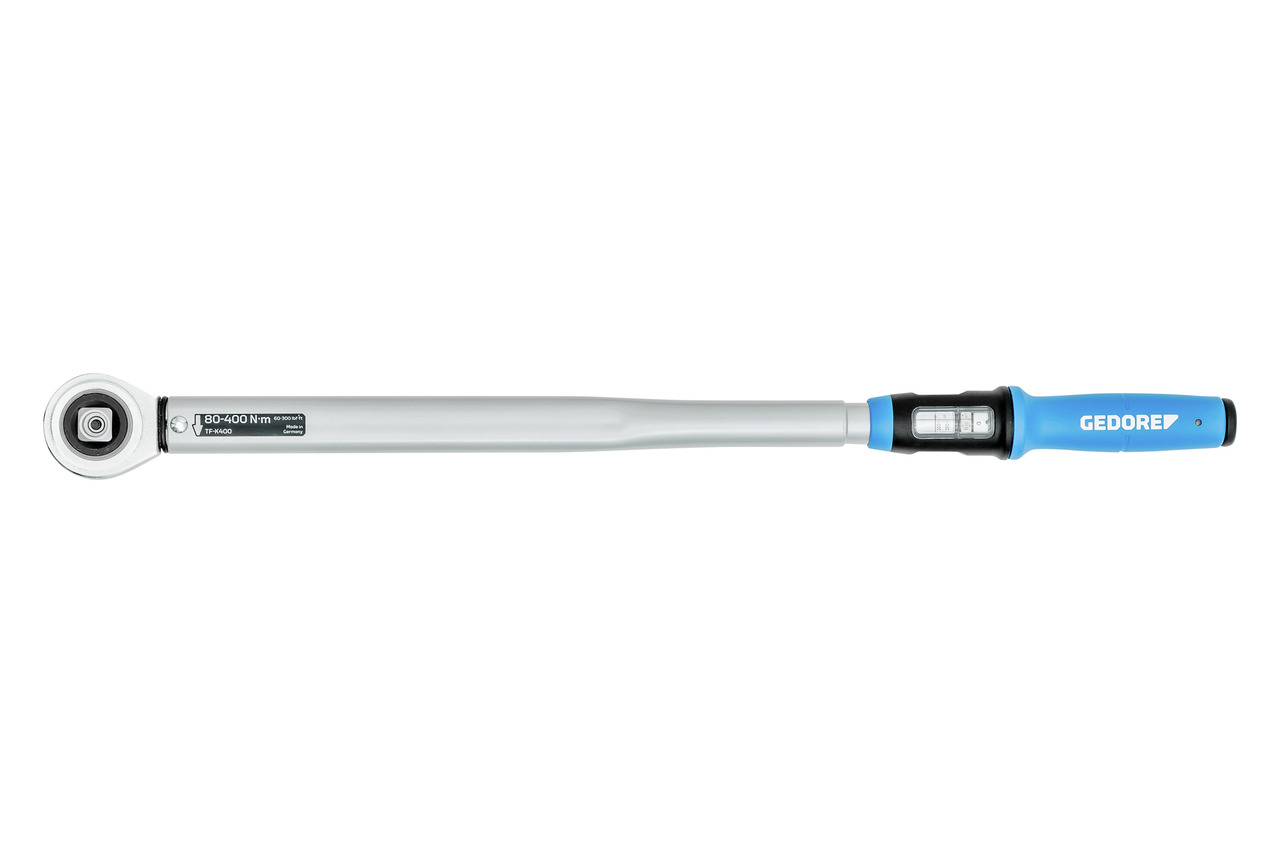

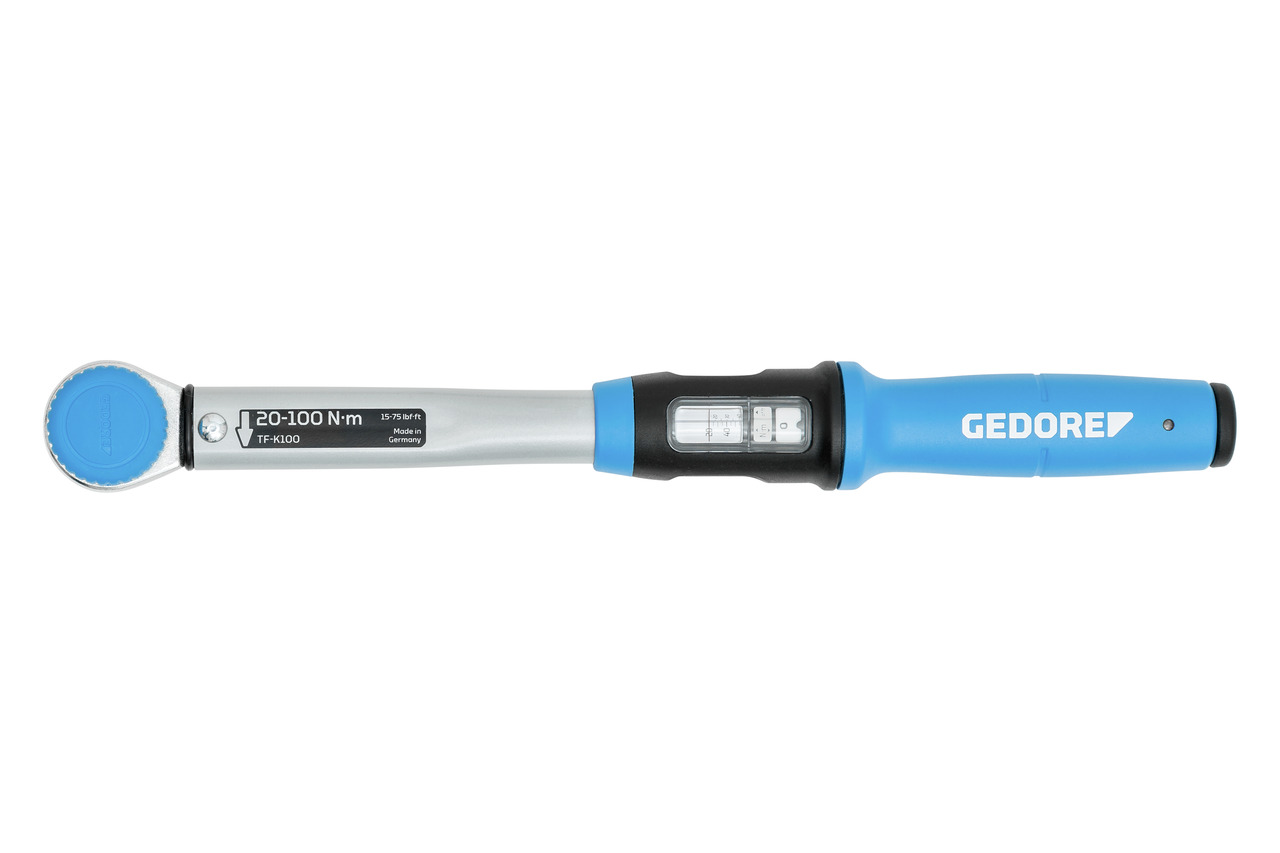

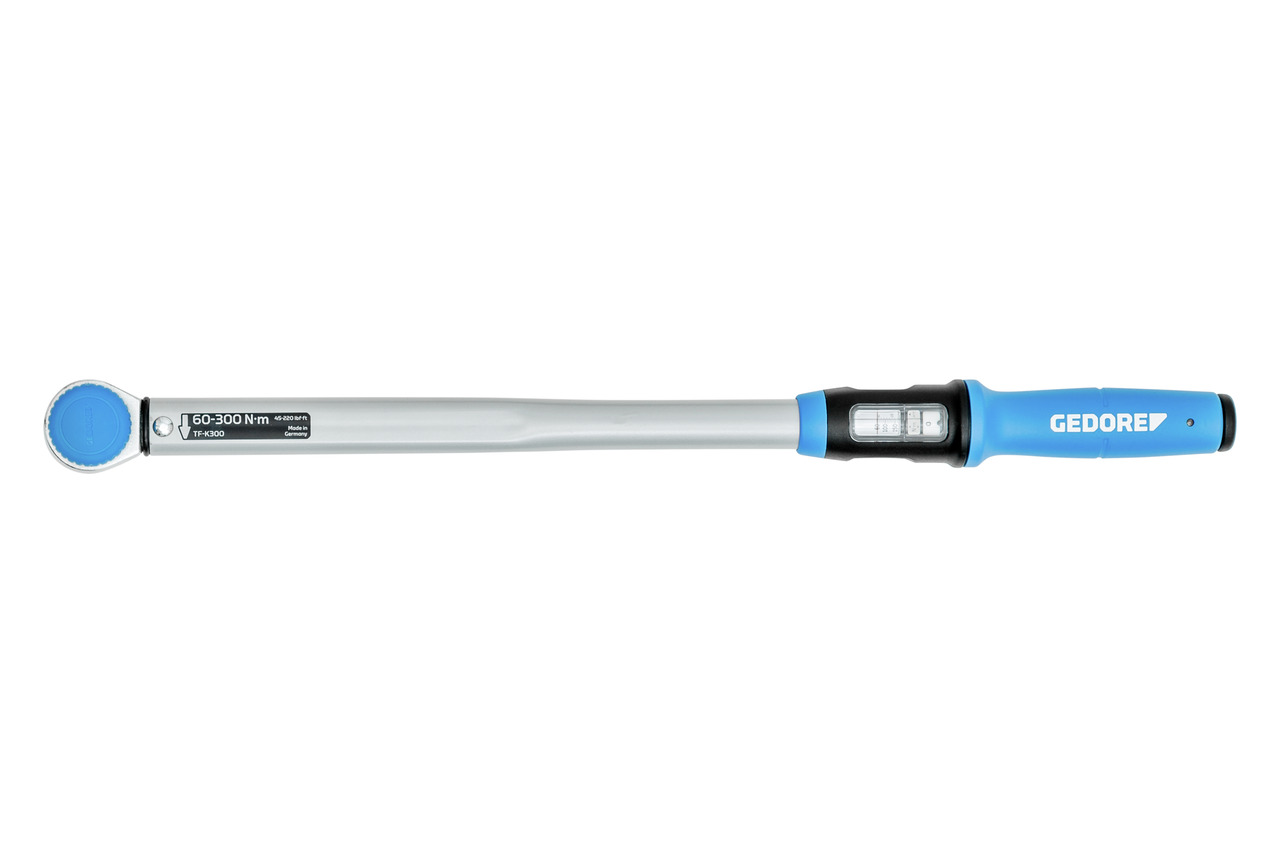

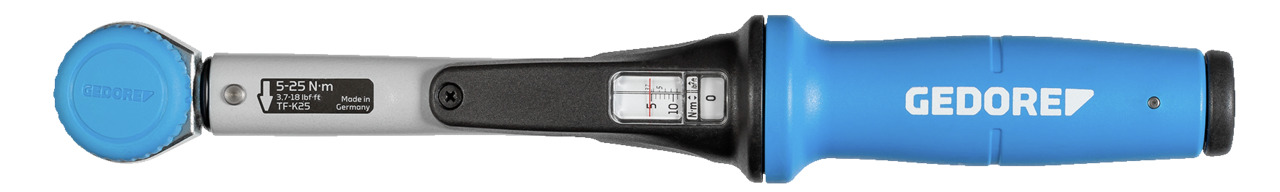

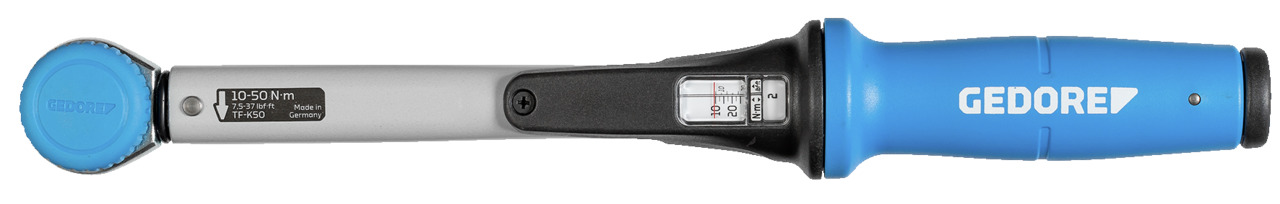

TF‑K Torque wrench TORCOFIX K

Order Code: 165199

Specifications

About this product

  • Socket:
  • Controlled screw tightening in the range of 1 - 850 Nm / 0,75 - 630 lbf·ft
  • Adjustable, releasing and sturdy tubular torque wrench with integrated ratchet and with square drive for industry and the trades
  • Features:
  • Classified as per DIN EN ISO 6789-2:2017 Type II Class A; adjusted to a maximum permissible +/-3 % deviation and thus with a greater precision than the standard-stipulated +/-4 %
  • Incl. traceable test certificate (DIN EN ISO 6789-2:2017)
  • For controlled bi-directional tightening
  • 1/2" mushroom head square with ball lock. From 3/4" with square socket and pin retention
  • Robust, matt powder-coated tubular steel construction, with galvanized ratchet and high-quality plastic parts

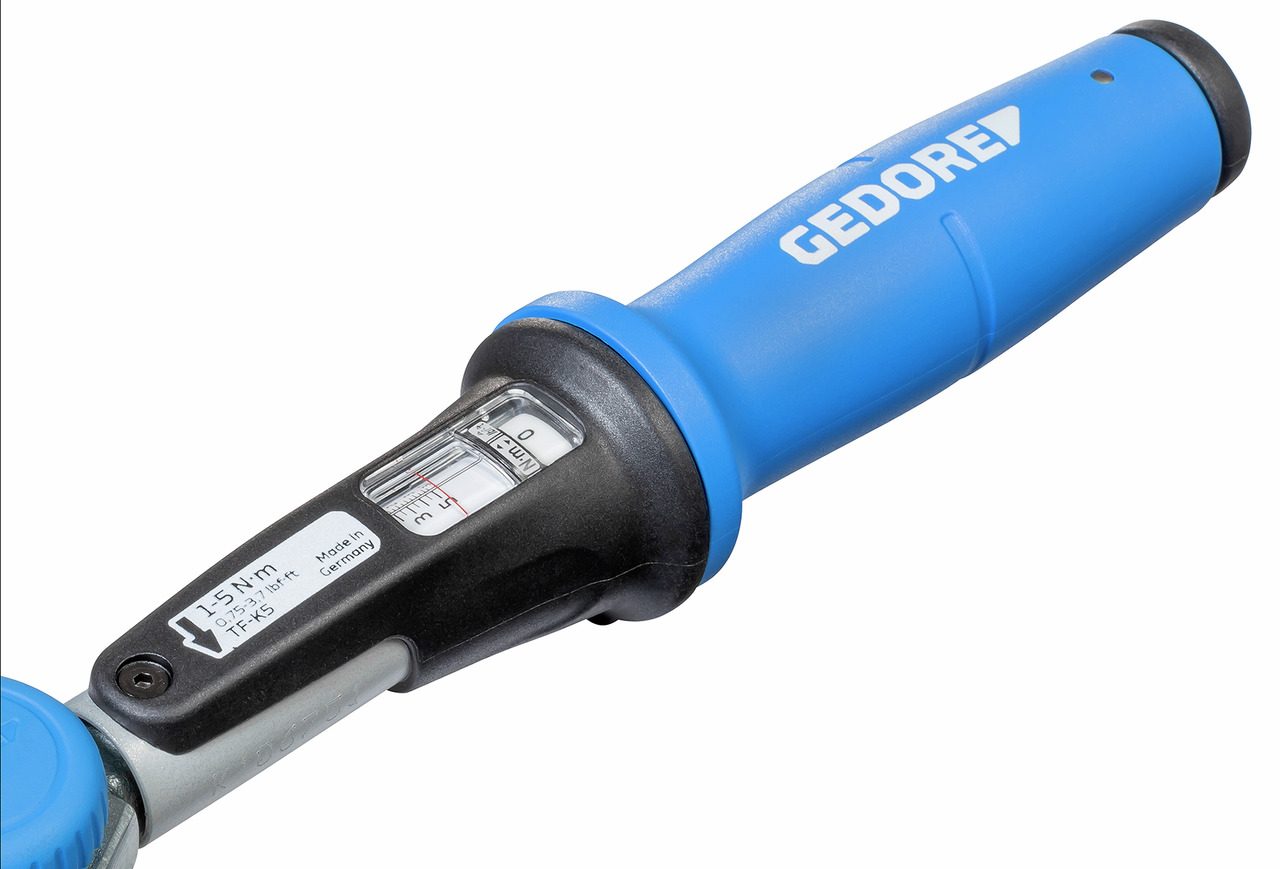

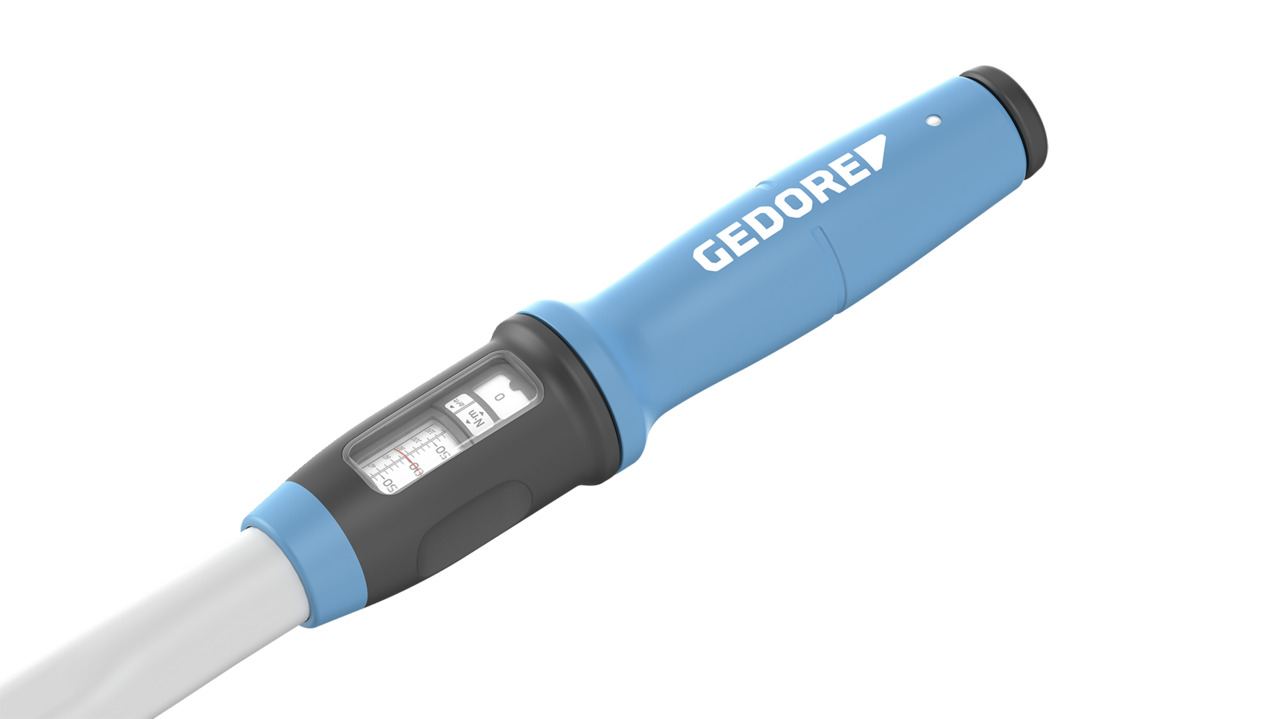

  • New ergonomic handle, shaped according to the natural grip position of the hand
  • clearly recognisable and tactile hand centring aid and calibration aid in the middle of the handle

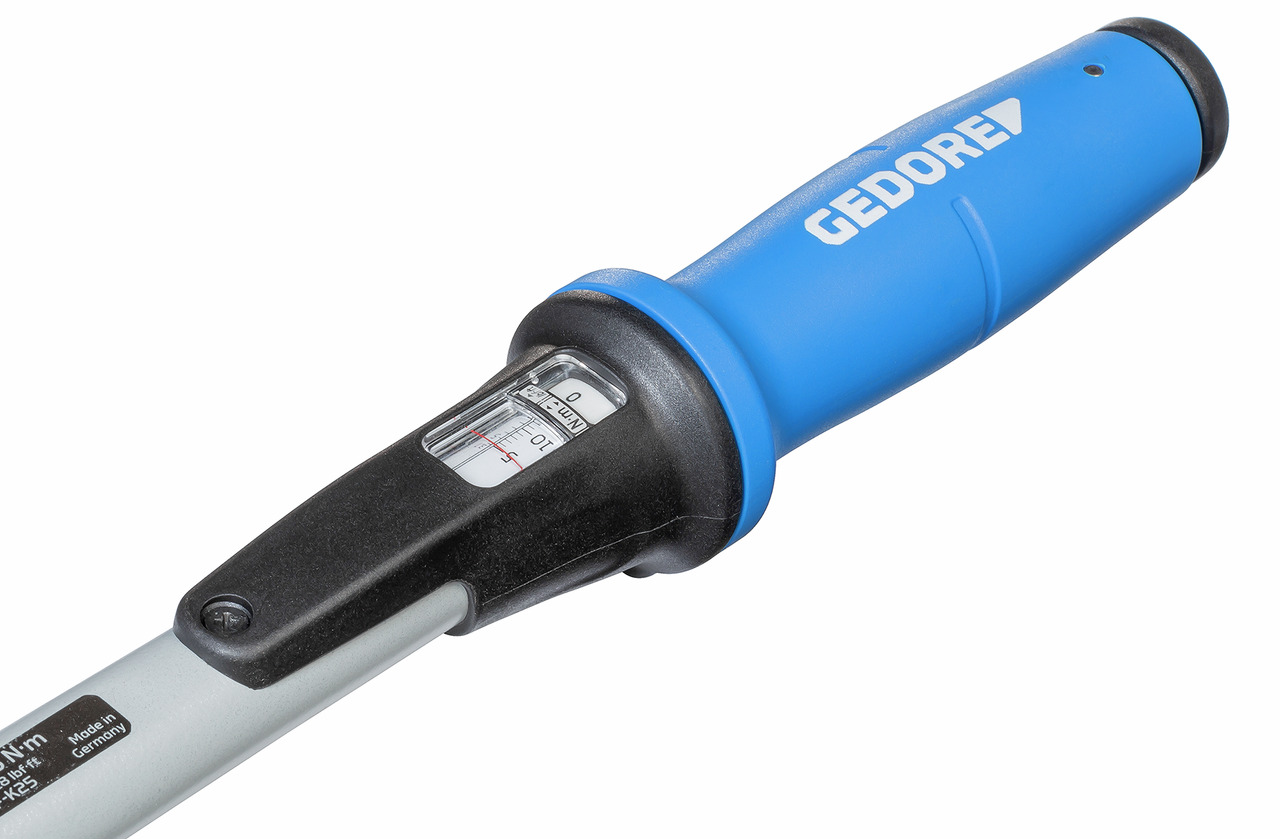

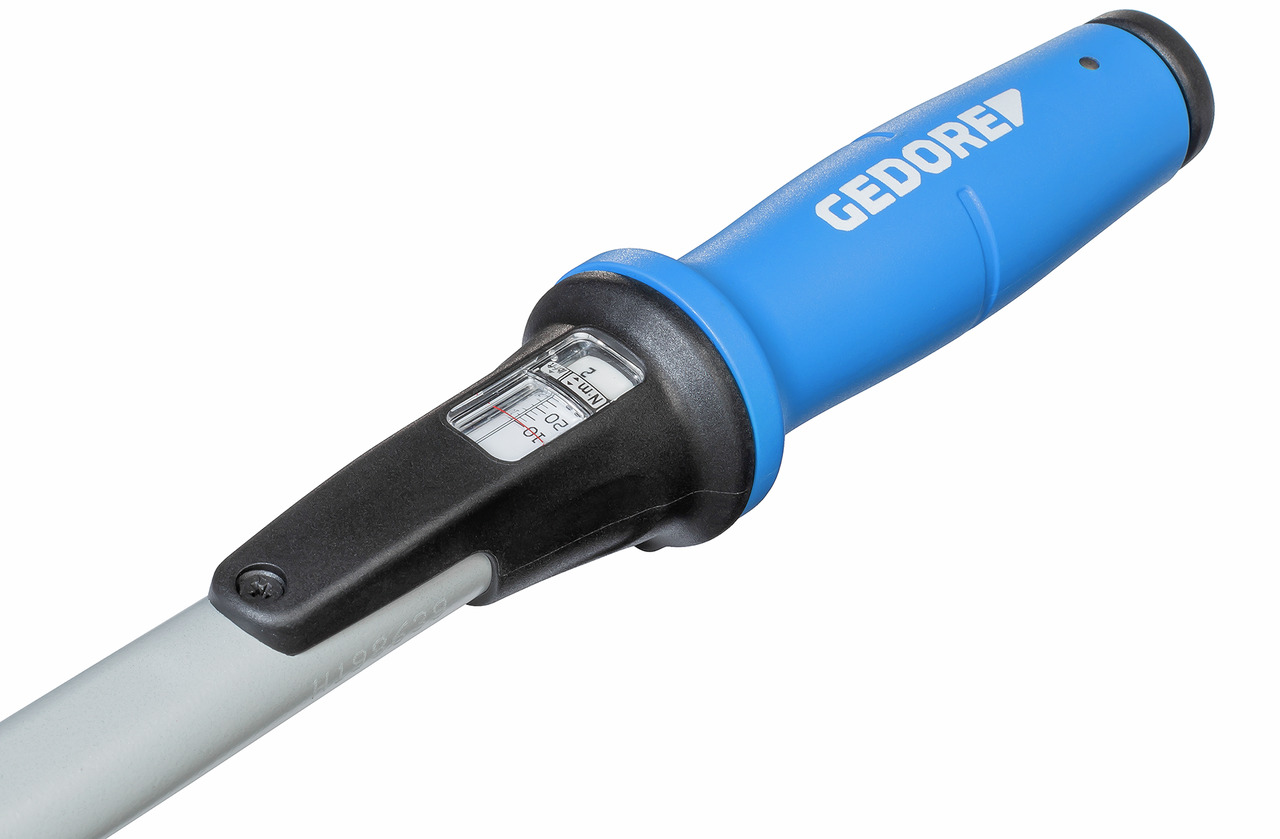

  • Double scale Nm / lbf·ft and vernier are protected from abrasion and contamination by an enlarged viewing window
  • With vernier scale for Nm main scale for setting intermediate scale values; lbf-ft setting only via main scale
  • Vertical alignment of the scale, torque adjustment therefore suitable for left and right handers
  • Scale line positioned directly above the scale prevents reading errors (parallax errors)
  • Unit labeling integrated in the scale frame and also protected by viewing windows
  • Precise mechanism generates a clearly perceptible and audible trigger signal when the set torque value is reached
  • incl. roll away protection, prevents rolling away when the tool is put down

Information

  • Drive square inch:1/2"
  • Contents (Qty of pieces):1
  • Torque range (min./max.) [Nm]:-
  • Torque range (min./max.):-
  • Total width [mm]:44 mm
  • Material:Tubular steel construction, top-grade plastic parts
  • Drive connector square [metric]:12,5 mm
  • Return angle:7,5 °
  • Head height 1 [mm]:36 mm
  • No. of teeth:48
  • Width of head 1 [mm]:44,0 mm
  • housing to square drive:22 mm
  • Drive type/drive:Mushroom head
  • vernier Nm:1 Nm
  • Standard:DIN 3120 - A 12,5 ISO 1174
  • REACH:compliant
  • Trigger mechanism:Short path triggering
  • Precision +/-:+/- 3 %
  • Tightening direction:Left and right
  • Fixed setting:0
  • Test certificate:DIN EN ISO 6789-2:2017
  • Scale division [Nm]:10 Nm
  • Target groups:Automotive Industry Construction and commercial vehicles Consumer Energy Mechanical engineering Workshop Service Agriculture Oil & Gas Utilities
  • Range of application:Assembly Production Maintenance and repair
