Coupler based on DIN 3120 - A 12,5, ISO 1174, with ball lock
Square drive as per DIN 3120 - C 12,5, ISO 1174, with ball retention groove

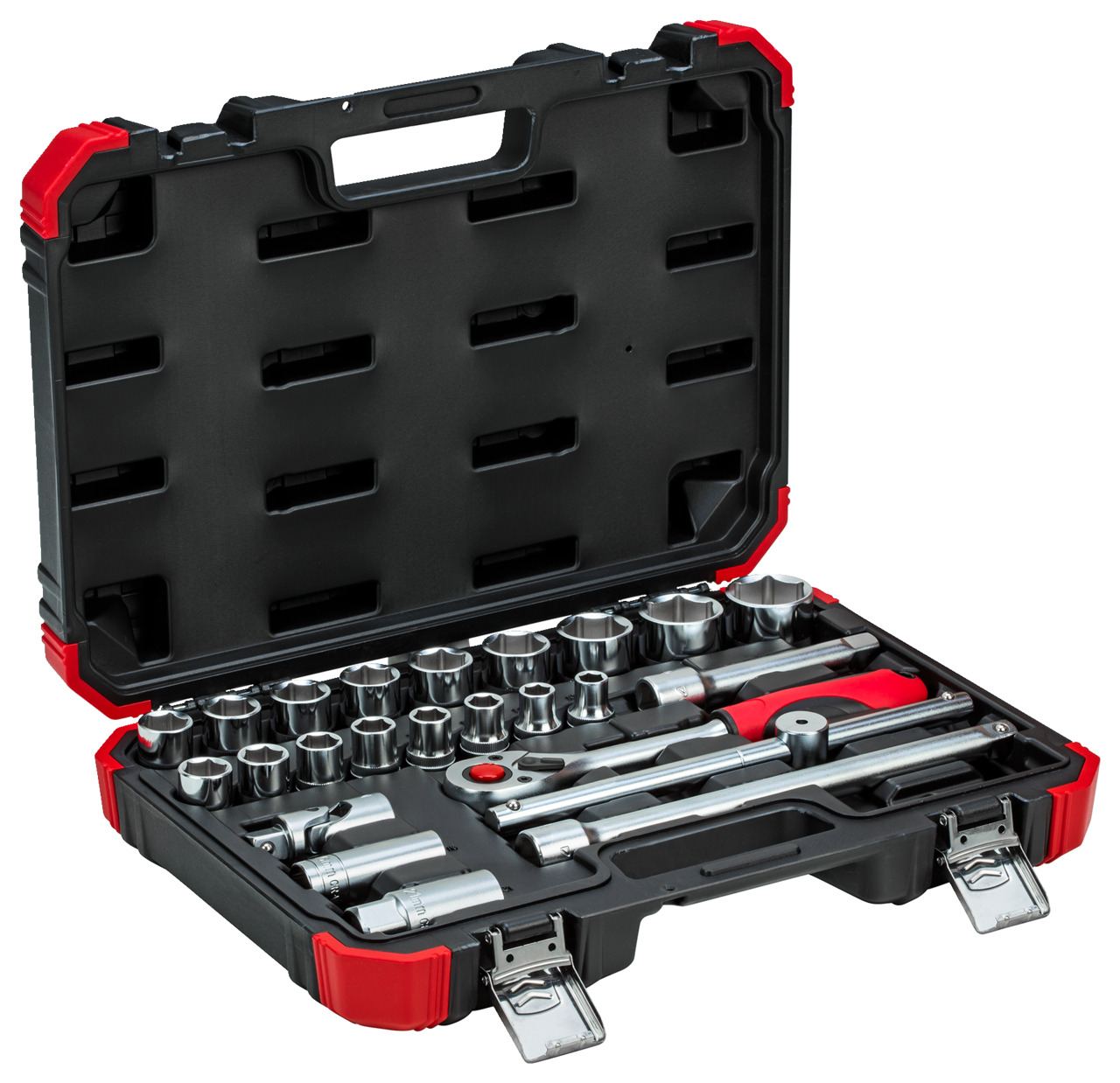

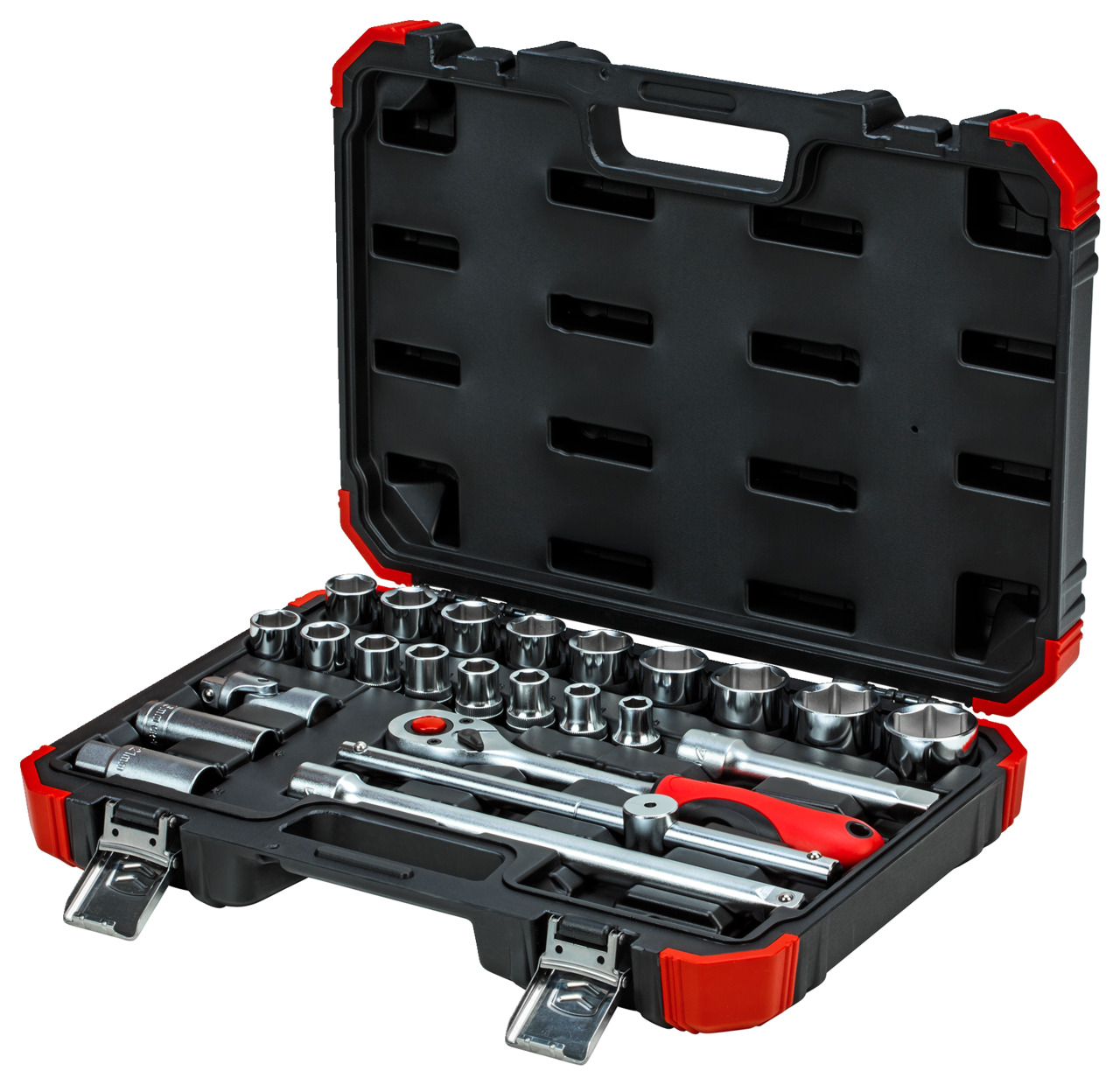

2C reversible ratchet 1/2", lever for reversing clockwise/anticlockwise direction, push-button release, fine-toothed, oval head, dual-material handle for ease in handling, for sockets
Socket 1/2", hex, metric, short, as per DIN 3124, ISO 2725
Spark plug socket 1/2" with pressed-in holding rubber
Spark plug socket 1/2" with pressed-in holding rubber and extra drive hex Size 24
Socket extension 1/2"
Sliding T-bar with slider 1/2, as per DIN 3122, ISO 3315
Universal joint 1/2, screwed-on joint , acc. to DIN 3123 - C 12,5
Chrome-vanadium steel, matt satin chrome-plated
For hand-operated screw work

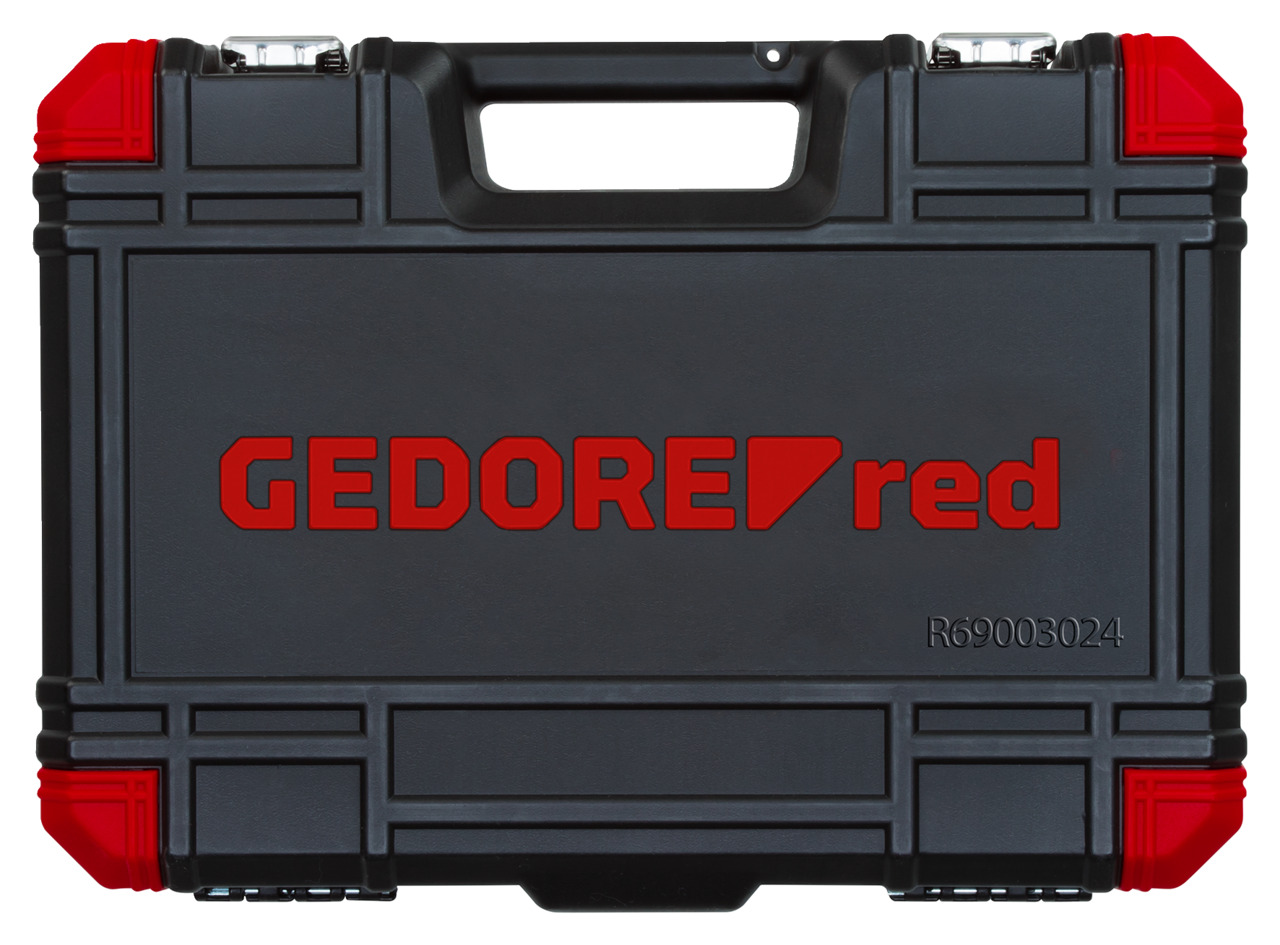

Plastic case in GEDORE red Design
Clamp-secured tools
Metal hinges/fastener
Information
Net weight [g]:4430 g
Drive square inch:1/2"
Contents (Qty of pieces):24
Total length [mm]:383 mm
Total width [mm]:272 mm
Total height [mm]:80 mm
Drive connector square [metric]:12,5 mm
REACH:compliant
Net weight [kg]:4,43 kg
