Option E‑torc 2, 300 “communication / charging station”

• Option E-torc 2 communication / charging station
• 5 models suitable for the E-torc 2 series (25, 150, 300, 600, 1000)
• For stationary loading and storage of the E-torc 2
• Fast charging time (approx. 4 hours for NiMh batteries of the type AA 2700 mA)
• Charging station only suitable for charging NiMh batteries!
• Intelligent battery charging management, permanent monitoring of the charging current

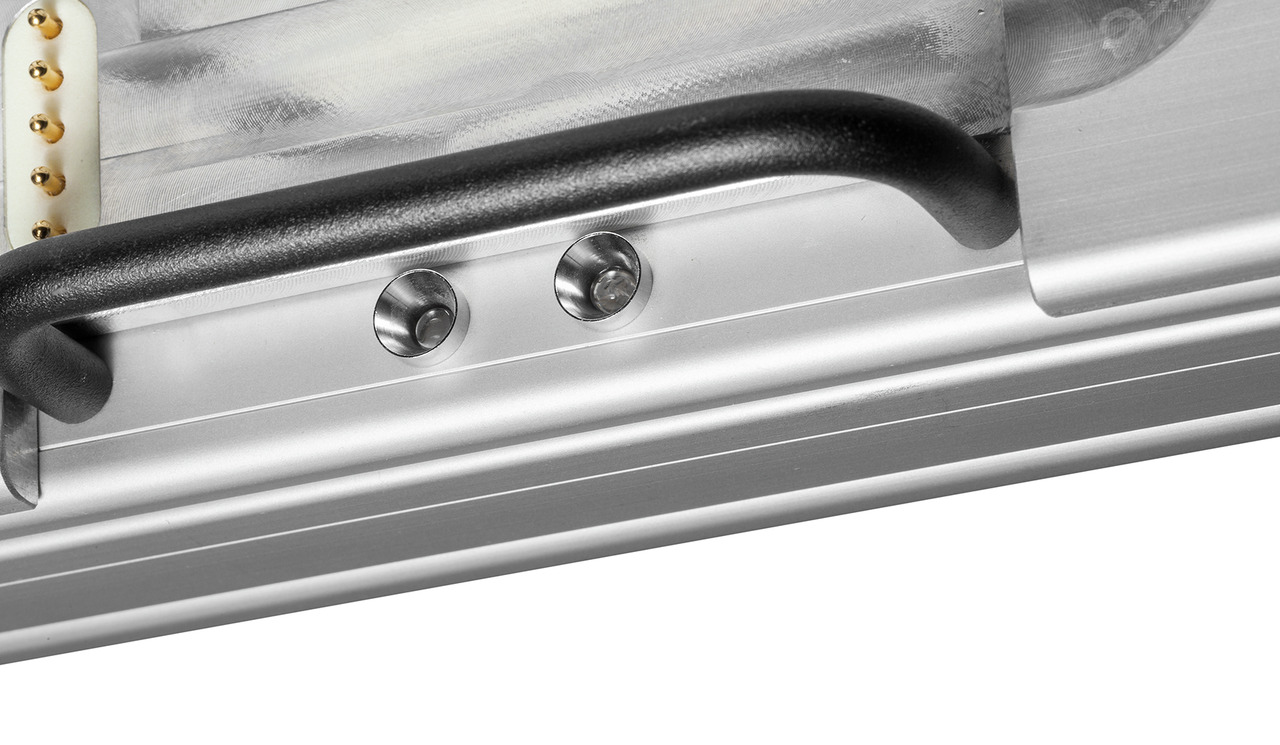

• Charge status display via LED

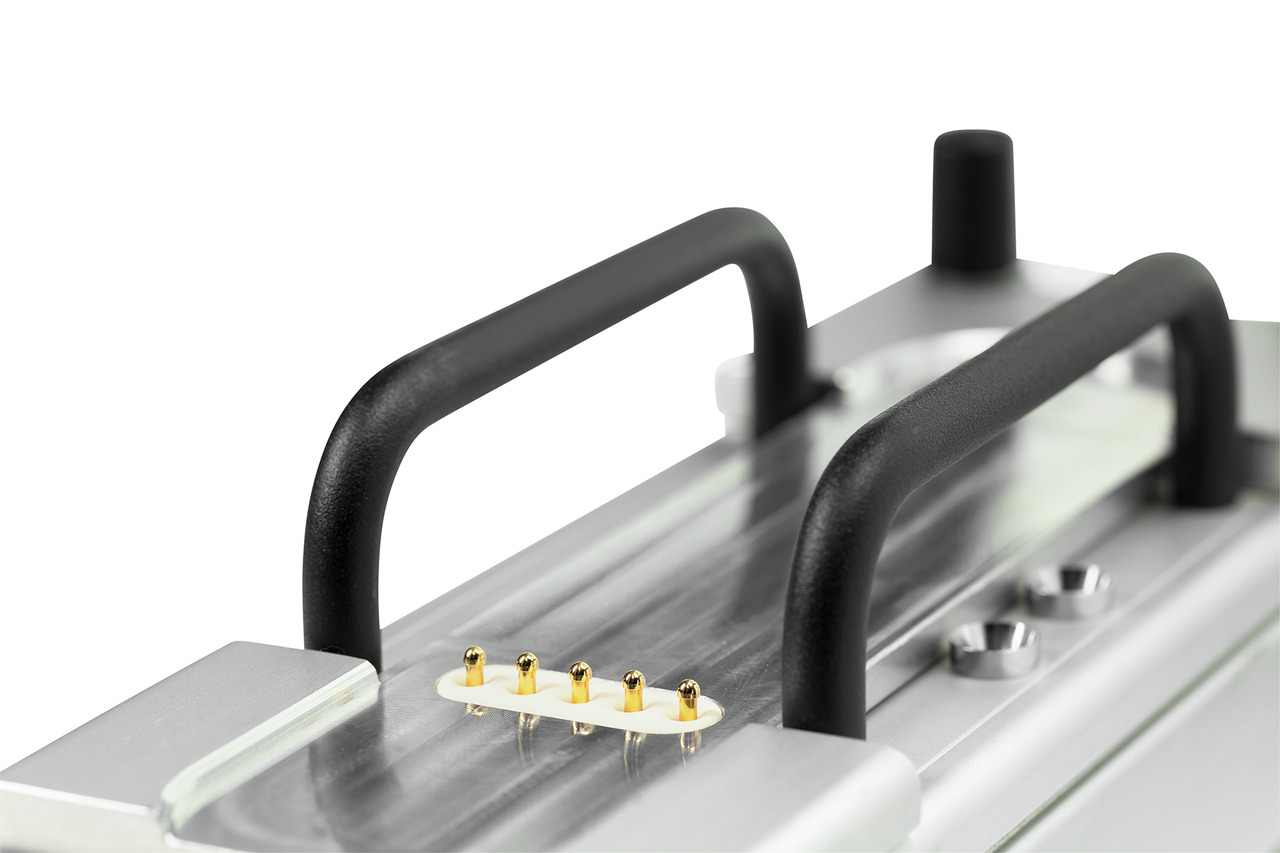

• Connection of the E-torc 2 to the communication / charging station via a contact pin strip
• Data communication possible during the charging process

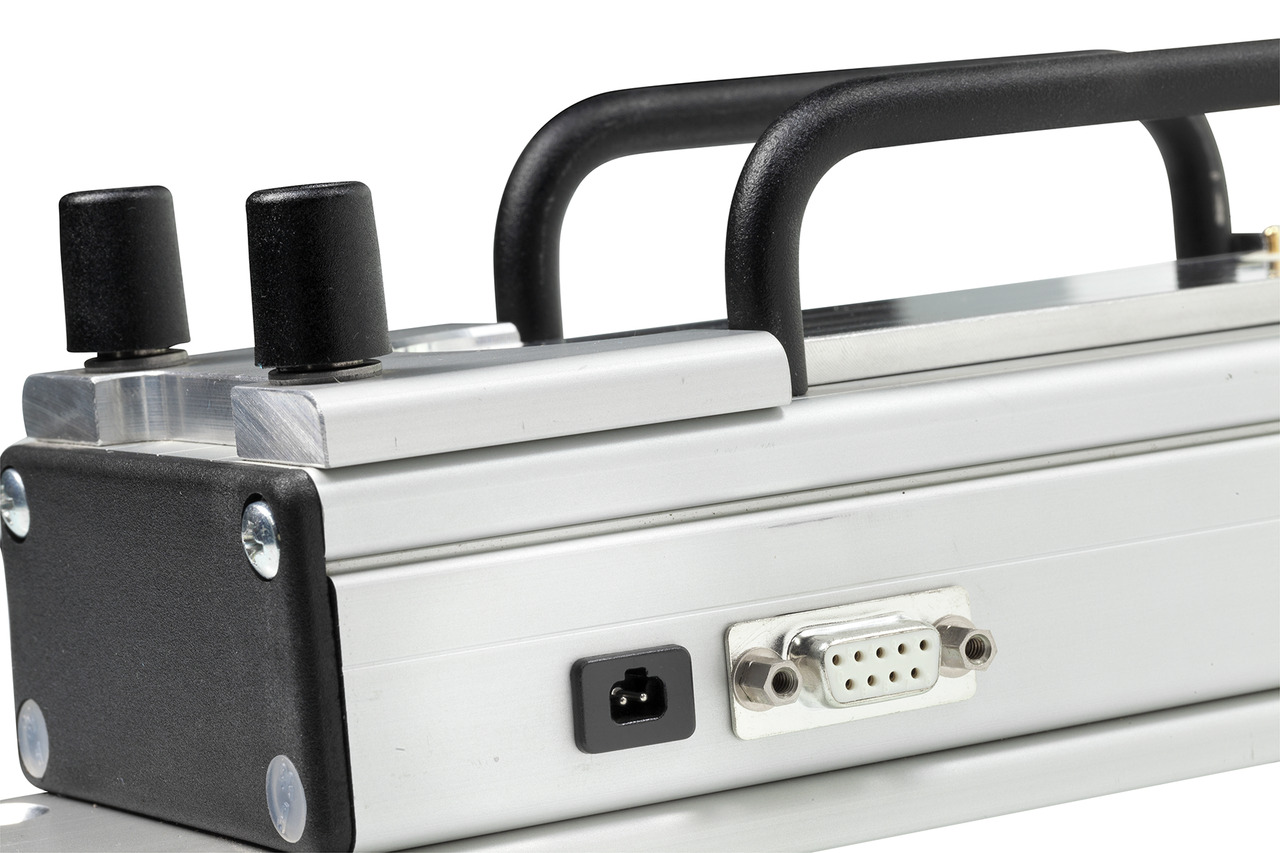

• Data connection via RS232 interface on the side (serial DP 9-pin)
• Simple assembly through existing assembly holes
• Option includes 1 communication / charging station + adaptation of an E-torc 2 (new order) torque wrench

Information

• Contents (Qty of pieces):1
• Charging time:4 h
• Output voltage:5 V
• Supply voltage V:240 V
• No. of batteries:2
• REACH:compliant
• Interface:RS 232 (seriell DP 9 pol. female)
• Evaluation software:0
• Battery type:Nickel Metal Hydride (NiMH)
• Battery capacity:2.700 mAh
• Material housing:Aluminiumprofil
• Charging current [kg]:
• Power supply current [A]:2,4
• Battery voltage [V]:1,2 V
