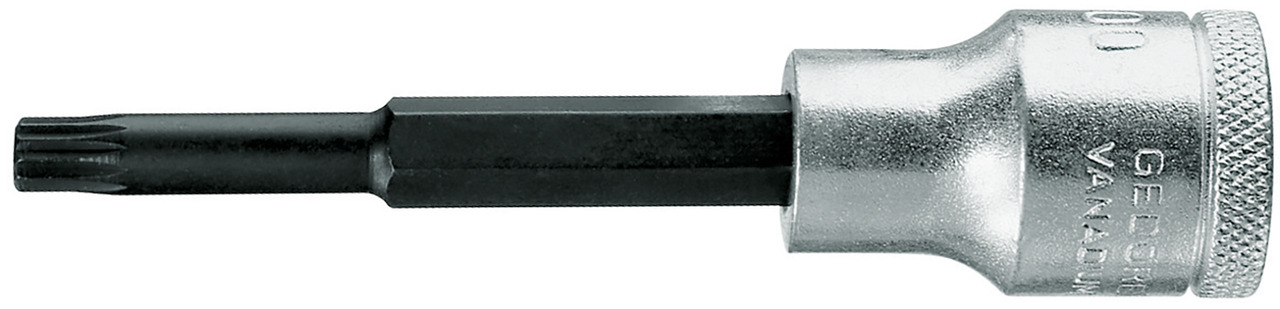

INX 19 L Screwdriver bit socket 1/2″ for recessed head screws XZN, long

Order Code: 5705

Specification

About this product

  • Acc. to DIN 2324
  • Square drive as per DIN 3120 - C 12,5, ISO 1174, with ball retention groove
  • Manually operated, with non-slip cross knurling
  • Chrome-plated
  • With pressed-in pin in Gedore vanadium special steel, manganese-phosphated
  • Tip as per DIN 2325

Information

  • Contents (Qty of pieces): 1 tlg.
  • Total length [mm]: 100 mm
  • Drive connector square fem: 12,5 mm
  • Total width [mm]: 22,5 mm
  • Material: Chrome-vanadium steel
  • Drive connector square fem: 1/2"
  • Working length: 100,0 mm
  • Tip length: 62,0 mm
  • Surface: chrome-plated
  • Standard: DIN 3120 – C 12,5 ISO 1174
  • REACH registration available: 0
  • Insert Ø Actuator: 22,5 mm
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
