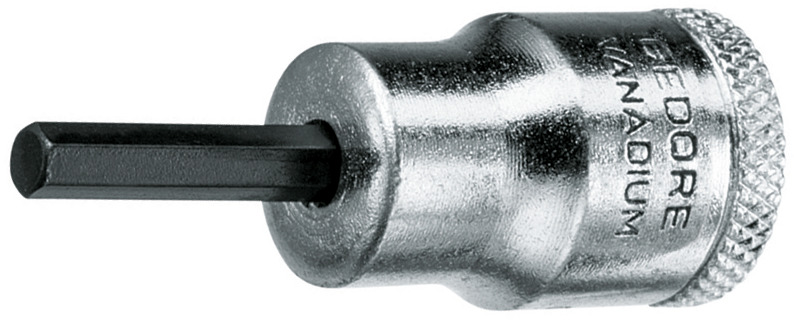

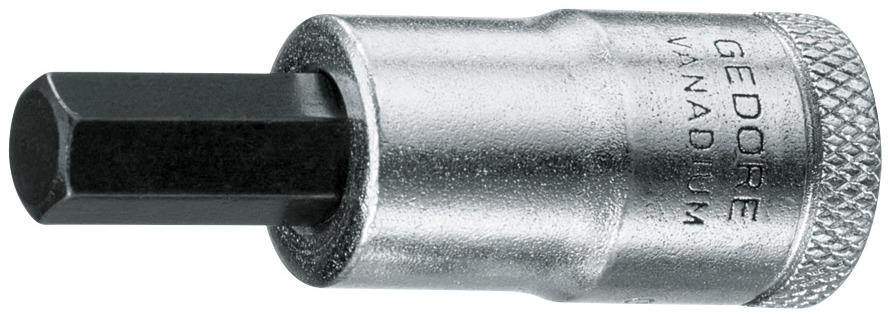

IN 30 (MM) Screwdriver bit socket 3/8″ for in-hex screws

Order Code: 5672

Specification

About this product

  • Acc. to DIN 7422
  • Square drive as per DIN 3120 - C 10, ISO 1174, with ball retention groove
  • Manually operated, with non-slip cross knurling
  • Chrome-plated
  • With pressed-in pin in Gedore vanadium special steel, manganese-phosphated

Information

  • Contents (Qty of pieces): 1 tlg.
  • Total length [mm]: 47 mm
  • Drive connector square fem: 10,0 mm
  • Total width [mm]: 17,5 mm
  • Material: Chrome-vanadium steel
  • Drive connector square fem: 3/8"
  • Tip length: 19,0 mm
  • Surface: chrome-plated
  • Standard: DIN 7422 DIN 3120 – C 10 ISO 1174
  • REACH registration available: 0
  • Insert Ø Actuator: 17,5 mm
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
