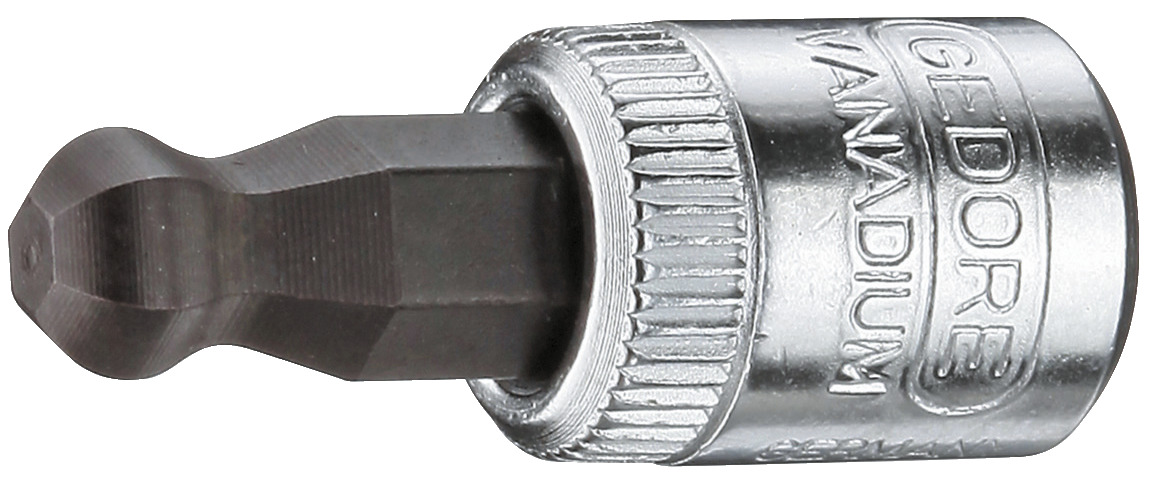

IN 20 K Screwdriver bit socket 1/4″ with ball end, for in-hex screws

Order Code: 5684

Specification

About this product

  • Square drive as per DIN 3120 - C 6.3, ISO 1174, with ball retention groove
  • Hand operated, knurled for good grip
  • Chrome-plated
  • With pressed-in pin, phosphated
  • Total swivel angle approx. 15-20°
  • Chrome-vanadium steel

Information

  • Contents (Qty of pieces): 1 tlg.
  • Total length [mm]: 37 mm
  • Drive connector square fem: 6,3 mm
  • Material: Chrome-vanadium steel
  • Drive connector square fem: 1/4"
  • Working length: 37,0 mm
  • Insert-Ø 1: 12,0 mm
  • Tip length: 14,5 mm
  • Surface: chrome-plated
  • Standard: DIN 3120 – C 6,3 ISO 1174
  • REACH registration available: 0
  • Insert Ø Actuator: 12 mm
  • Total swivel angle: 15-20°
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
