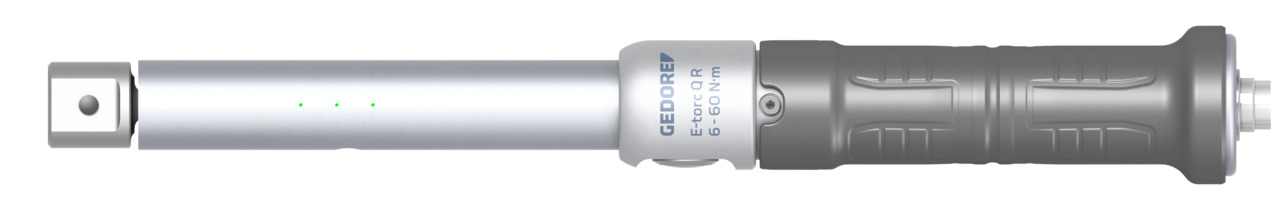

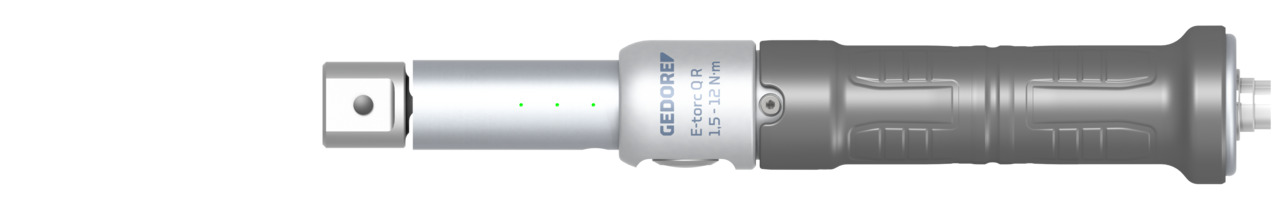

ETQR Electronic Torque wrench

Order Code: 164750

Specifications

About this product

  • The features:
  • Electr. torque angle of rotation Measuring tool in screwdriver form
  • ergonomically designed handle
  • Ideal for the controlled test / measurement of very small torques (>= 0.25 Nm)
  • LED signalling and confirmation button integrated in handle
  • 1/4" hexagon socket for direct bit insertion
  • The user interfaces:
  • Connection via separately available cable (ETQR connection cable 3066436) to E-torc QR display
  • The accuracy:
  • Factory calibration certificate according to DIN ISO 6789 type 1 class C
  • Calibration certificate DAKkS DKDR 3-7 Class 1 (optional)
  • Scope of delivery:
  • ETQR Measuring head Torque screwdriver
  • In GEDORE L-BOXX® 136 No. 1100 L
  • Incl. calibration certificate

Information

  • Contents (Qty of pieces):1
  • Epa-/Esd-Model:0
  • Drive type/drive:Rectangular cavity
  • REACH:compliant
  • Measurement accuracy:± 1% Toleranz vom Ablesewert, ± 1 Digit
  • Graphic display:0
  • Measuring acc.angle rotation:±1% , min. ±1° auf 360° bei mind. 4°/sec.
  • Evaluation software:0
  • Precision +/-:+/- 1 %
  • Tightening direction:Left and right
  • Fixed setting:0
  • Target groups:Automotive Electronics industry Industry Construction and commercial vehicles Military Energy Mechanical engineering Service Railway
  • Range of application:Assembly Series assembly Production Quality control Maintenance and repair Bolting case analysis
