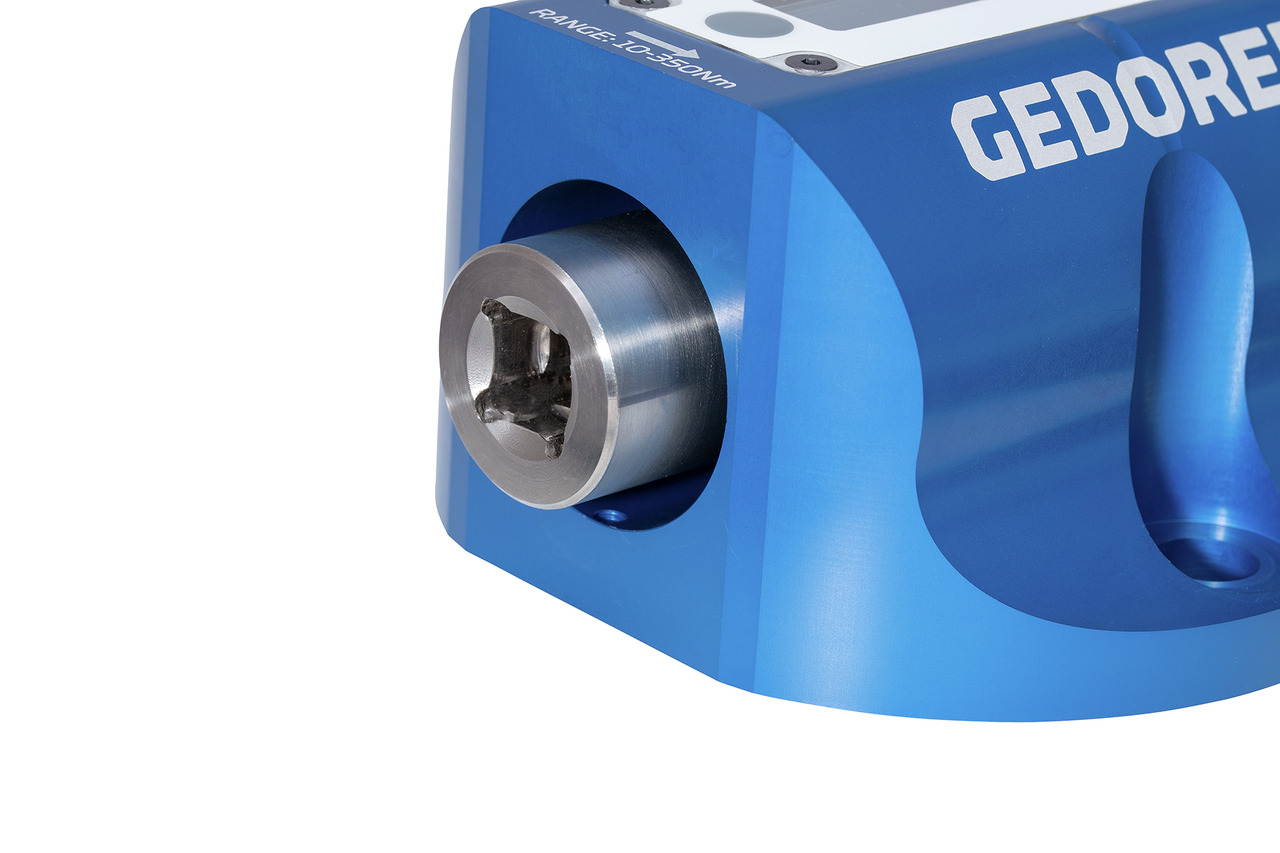

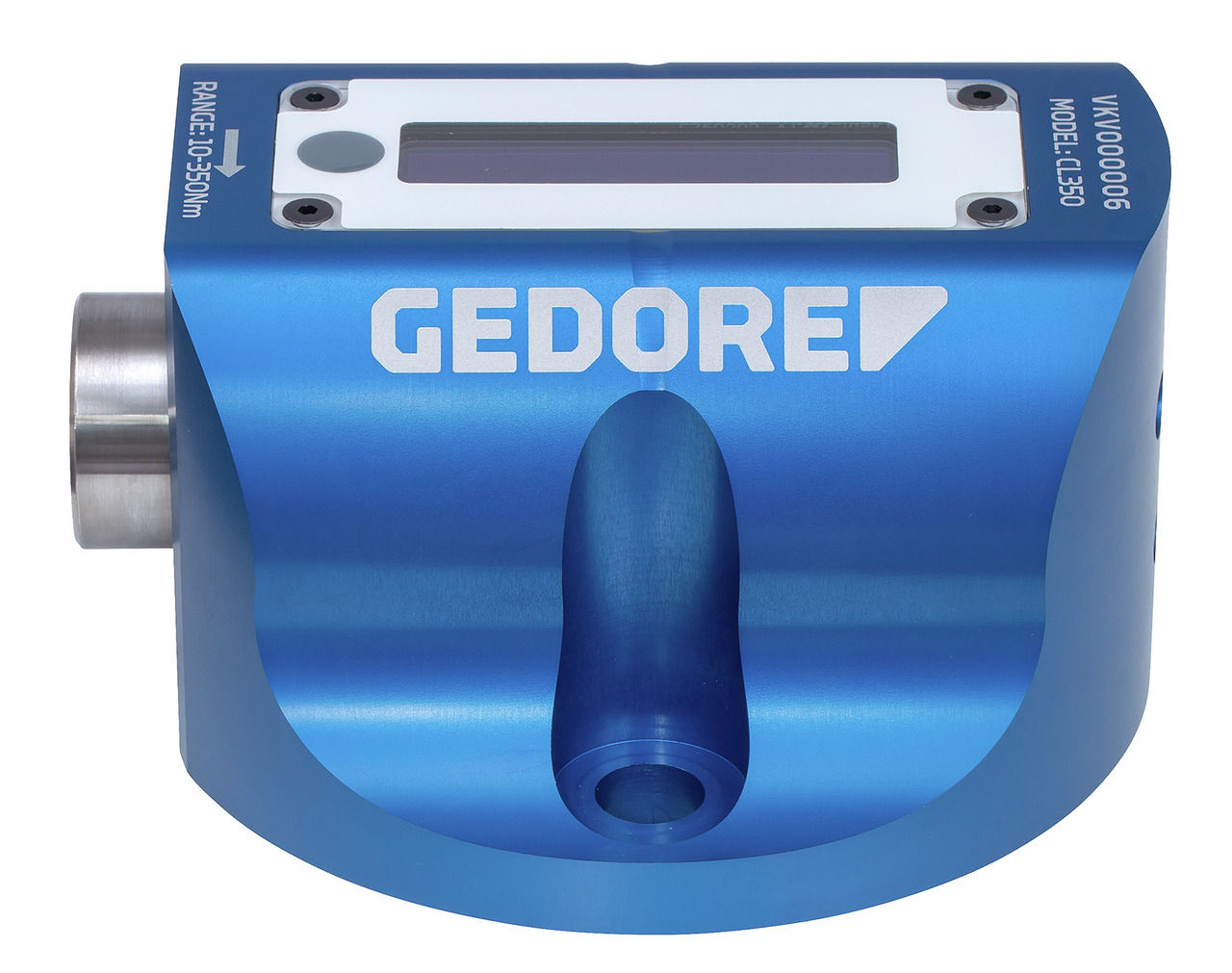

Electronic testing device Capture Lite 0.25–350 N‑m / 1.9 lbf-ft — 260 lbf-ft

• Digital torque tester for testing torque wrenches and torque screwdrivers
• Light yet robust due to aluminium housing
• 5 models in the range from 0.02 Nm to 350 Nm
• 7 models in the range from 0,02 to 3.000 N·m
• Measuring tolerance +/- 1 % for all readings
• 3 measuring modes: floating value display (track), kink point detection (first peak), peak value measurement (peak)
• Simple & Easy operation due to 1-button operation (measuring mode, unit)
• Switchable between Nm, lbf·ft and lbf·in
• Optimal readability due to single-line illuminated OLED display
• Autostart function when a torque tool is inserted
• Auto-sleep mode when not in use
• Easy mounting on the table or on the wall
• Power supply and data output via USB connection

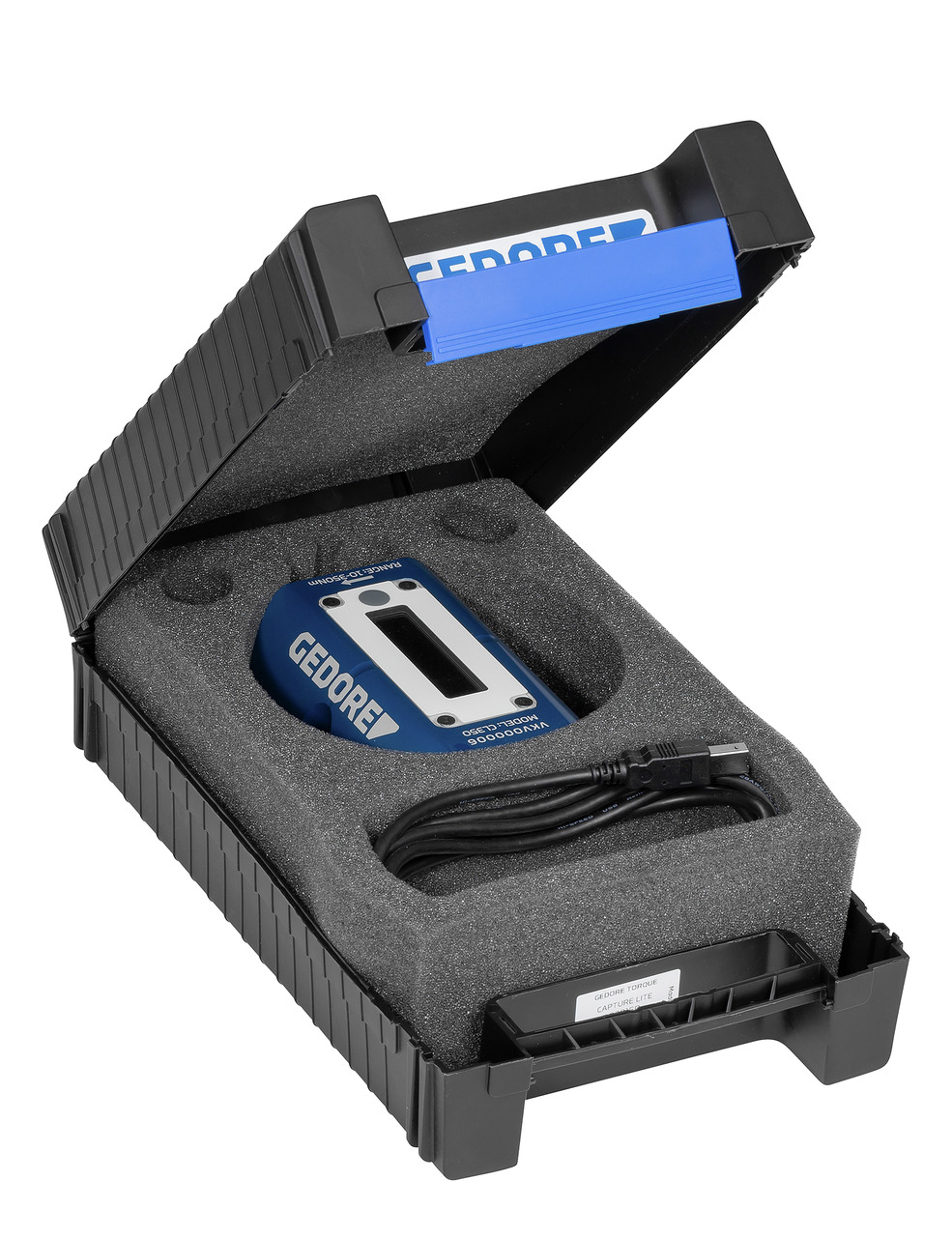

• Scope of delivery:
• Capture Lite tester
• USB connection cable
• Adapter (depending on model)
• Operating instructions
• Test certificate
• Stable plastic case with inlay
• Stable plastic case with inlay

Information

• Contents (Qty of pieces):1
• Total length [mm]:135 mm
• Total width [mm]:120 mm
• Total height [mm]:70 mm
• Material:Aluminium housing
• Surface:anodized
• REACH:compliant
• Measurement accuracy:± 1 % Toleranz bei allen Ablesewerten
• Interface:USB
• Operating direction:right
• Overload protection:0
• Graphic display:0
