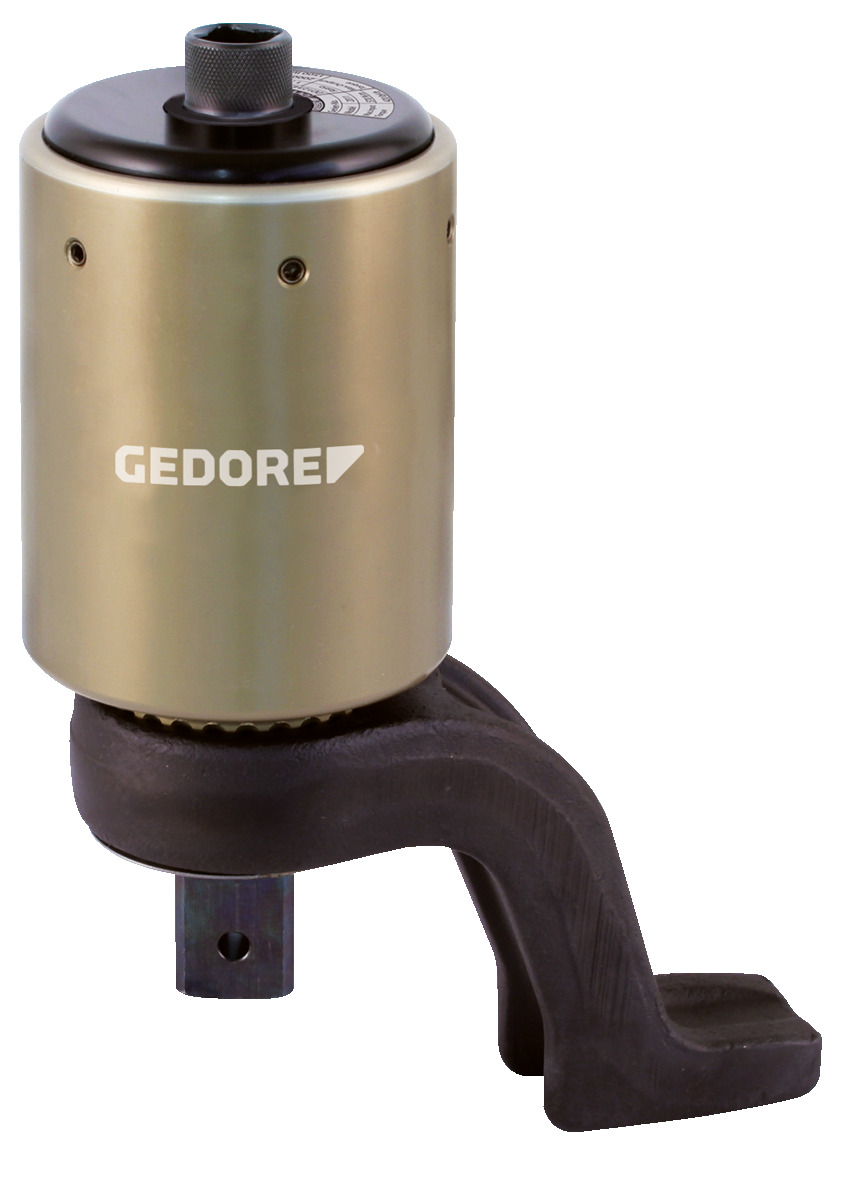

DVV-40Z + DVV-40ZRS Torque multiplier DREMOPLUS ALU 4000 N·m / 2930 lbf·ft

Order Code: 4617

Specification

About this product

  • Especially suitable for:
  • Machinery and plant engineering
  • Cable cars, lifts and masts
  • Heavy industry, construction sites
  • Bridge construction
  • Shipbuilding, aircraft and railway construction
  • Refineries, plastics industry
  • Power plants of all kinds
  • Features:
  • Mechanical hand torque multiplier for controlled screw tightening and unloosening screw connections

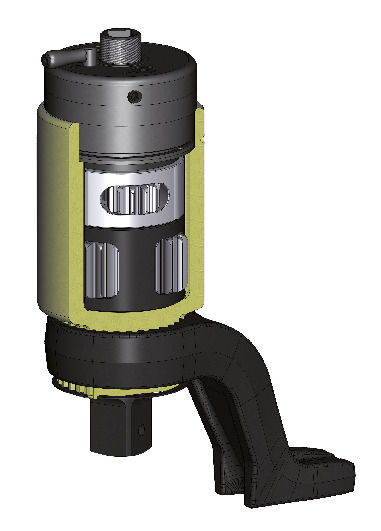

  • With a two-stage planet gear
  • High-performance aluminium housing
  • Models with 1:16 gear ratio
  • DVV-40ZRS model with anti-wind-up ratchet (RS)
  • With non-destructive overload protection "Slipper" to protect the gearbox, right and left hand
  • Z-form, offset reaction arm depending on model made of chrome-vanadium steel
  • Guaranteed accuracy: Better than +/- 3 % tolerance
  • To operate with a suitable torque wrench
  • 2 models with maximum load in the range of max. 4000 N·m
  • Output square with hole for Impact sockets with locking pin and ring

Information

  • Drive connector square male: 1/2"
  • Contents (Qty of pieces): 1 tlg.
  • Drive connector square fem: 12,5 mm
  • Multiplication at the ratio: 1:16
  • Output square: 1"
  • Drive connector square fem: 1/2"
  • Output torque (max.) [N-m]: 4000
  • Output torque (max.): 2390
  • drive-start reaction arm: 68
  • drive-end reaction arm: 133
  • REACH registration available: 0
  • Total width w/o reaction arm: 88
  • Backflow protection: 0
  • Version reaction arm: Z-Form, cranked
  • Output square (metric): 25 mm
  • Output square (inch): 1"
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
