DVV-13Z torque multiplier DREMOPLUS ALU 1300 N m / 950 lbf ft

In stock

Order Code: 4616

Specifications

Height (cm)0
Length (cm)0
Width (cm)0
DimensionsN/A
WeightN/A

About this product

  • Especially suitable for:
  • Industry, construction sites, car and truck garages, agricultural technology
  • Bridge, ship, aircraft and railway construction, refineries
  • Machinery and plant engineering, maintenance
  • Features:
  • Mechanical hand torque multiplier for controlled screw tightening and unloosening screw connections
  • With single stage planetary gearing
  • High-performance aluminium housing
  • With Z-form, offset reaction arm of chrome-vanadium steel
  • Can be optionally retrofitted with L-form straight reaction arm - with adjustable reaction arm - of lightweight metal
  • Model with transmission ratio 1:5
  • Guaranteed accuracy: Better than +/- 3 % tolerance
  • To operate with a suitable torque wrench
  • 1 model with maximum load in the range up to 1300 Nm

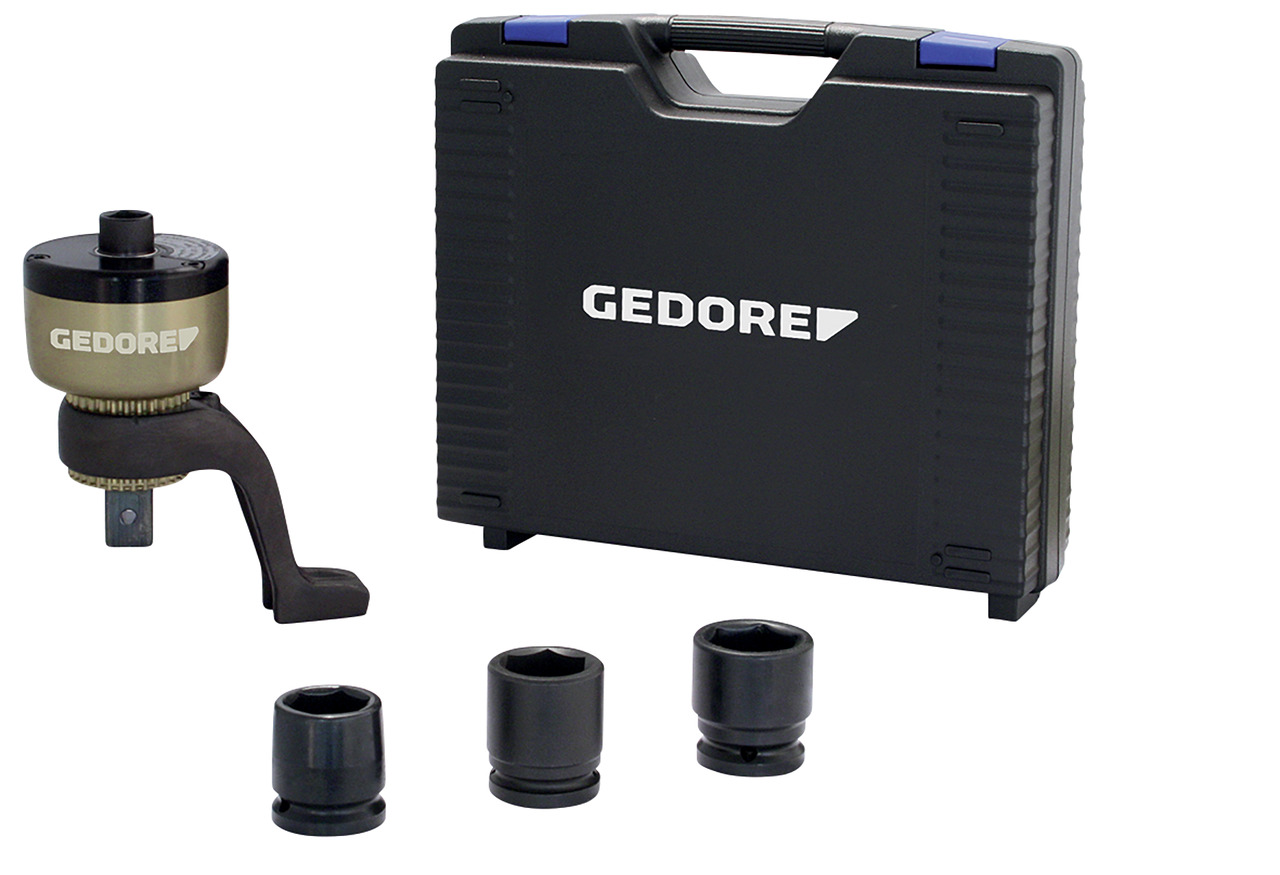

  • Also available as set (No. DVV-13ZG) with three different Impact sockets SW 27, 30, 32 mm
  • Output square with hole for Impact sockets with locking pin and ring

Information

  • Drive square inch:1/2"
  • Contents (Qty of pieces):1
  • Drive mount, square [metric]:12,5 mm
  • Output square:3/4"
  • Drive connector square [inch]:1/2"
  • REACH:compliant
  • Backflow protection:0
  • Version reaction arm:Z-Form, cranked
  • Output square (metric):20 mm
  • Output square (inch):3/4"
