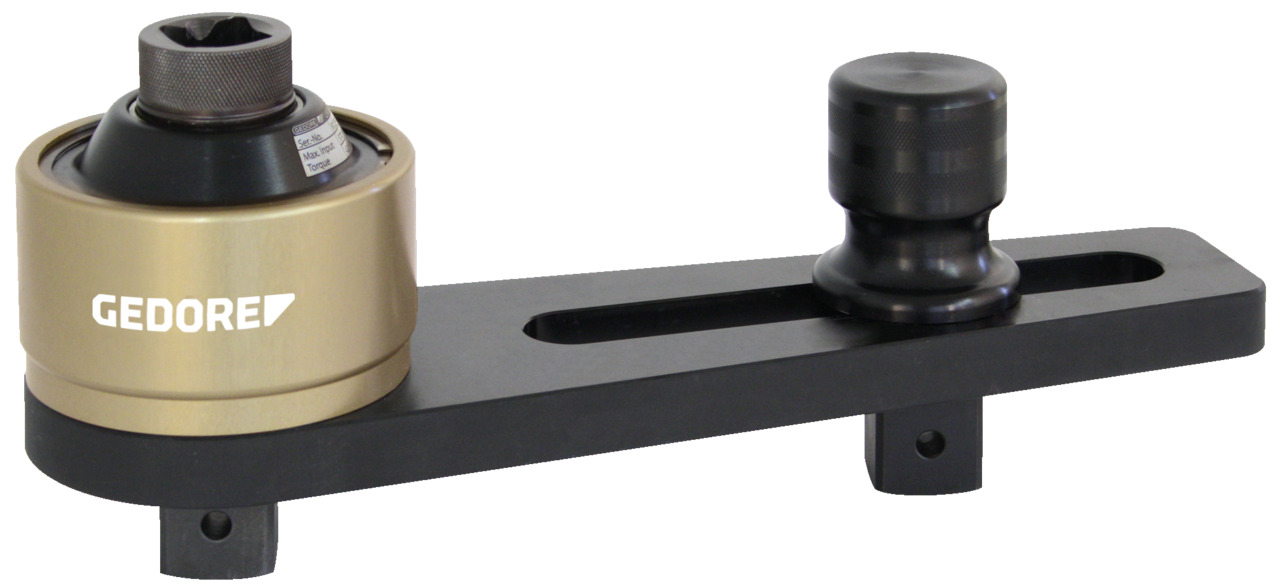

DVI-20L/Z + DVI-28L/Z Torque multiplier DREMOPLUS ALU 2000–2800 N‑m / 1500–2050 lbf-ft
Specification
About this product
- Especially suitable for:
- Industry, construction sites, commercial vehicle and car workshops, agricultural technology, construction machinery
- Bridge, ship, aircraft and railway construction, refineries
- Machinery and plant engineering, maintenance
- Features:
- Mechanical hand torque multiplier for controlled screw tightening and unloosening screw connections
- With a single-stage planet gear
- High-performance aluminium housing
- Models with transmission ratio 1:4, 1:5.5
- Guaranteed accuracy: Better than +/- 3 % tolerance
- To operate with a suitable torque wrench
- 2 models with maximum load in the range from max. 2000 N·m to 2800 N·m
- Model -Z: with cranked reaction arm Z-shaped made of chrome vanadium steel
- Model -L: with straight reaction arm L-shaped, with adjustable reaction square, made of light metal
- Output square with hole for Impact sockets with locking pin and ring
Information
- Contents (Qty of pieces): 1 tlg.
- Drive connector square fem: 20,0 mm
- Output square: 1"
- Drive connector square fem: 3/4"
- REACH registration available: 0
- Backflow protection: 0
- Output square (metric): 25 mm
- Output square (inch): 1"
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
