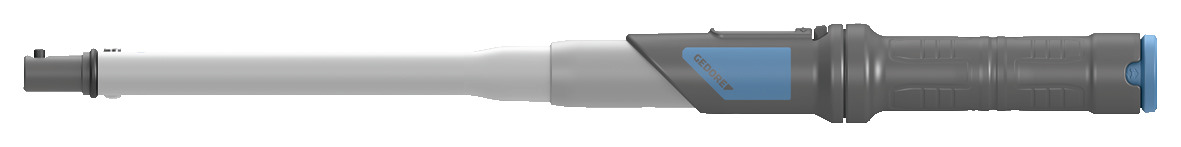

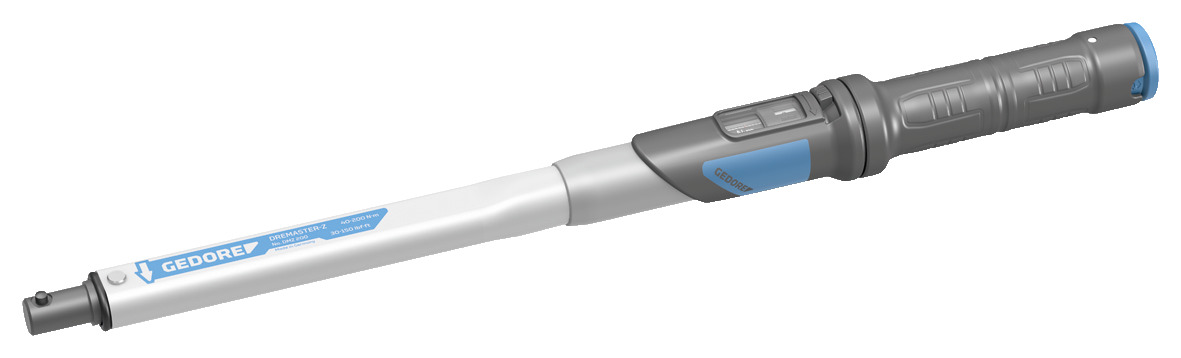

DMZ Torque wrench DREMASTER® Z

Order Code: 4548

Specifications

About this product

  • Socket:
  • Controlled screw tightening in the range of 20 - 850 Nm / 15 - 630 lbf·ft
  • Adjustable, releasing and sturdy tubular torque wrench with spigot end for industry and the trades
  • Features:
  • Classified according to DIN EN ISO 6789-2:2017 Type II Class A, incl. traceable test certificate, calibrated to a maximum permissible deviation of +/- 3 % and thus more precise than the +/- 4 % required by the standard
  • For controlled r.h and l.h. fastening
  • Sturdy, varnished tubular steel construction, with phosphated spigot end (Ø 16 mm or Ø 22 mm) and high-grade plastic parts
  • Ergonomically shaped plastic handgrip with calibration aid
  • Change-over between Nm main scale and lbf·ft ancillary scale to avoid reading errors when setting the torque wante
  • With micrometre scale for main Nm scale for setting interim values
  • Release system triggers a tactile and audible signal
  • Ergonomic system for torque adjustment with reference symbol
  • Provision for rapid setting with hexagon allen key, not included
  • Secured adjusting/setting system
  • Factory depth gauge: 32 mm (Ø 16 mm) or 56 mm (Ø 22 mm)
  • Operation only with end fittings with standardised depth gauges, otherwise inaccuracies can arise
  • Depending on the application, access is possible from the front (e.g. open-end fitting) or side (e.g. reversible ratchet and socket).

Information

  • Contents (Qty of pieces):1
  • Total width [mm]:42,5 mm
  • Total height [mm]:42,5 mm
  • Material:Tubular steel construction, top-grade plastic parts
  • Graduation:10
  • Depth gauge [metric]:32,0 mm
  • Drive type/drive:Drive pin
  • vernier Nm:1 Nm
  • REACH:compliant
  • Safety:Ball safety device
  • Trigger mechanism:Short path triggering
  • Lever length drive side [mm]:32 mm
  • Receptacle width [mm]:16 mm
  • Precision +/-:+/- 3 %
  • Tightening direction:Left and right
  • Fixed setting:0
  • Test certificate:DIN EN ISO 6789-2:2017
  • Target groups:Automotive Industry Construction and commercial vehicles Military Energy Mechanical engineering Utilities Service Agriculture Oil & Gas
  • Range of application:Assembly Series assembly Production Maintenance and repair
