Capture Hub

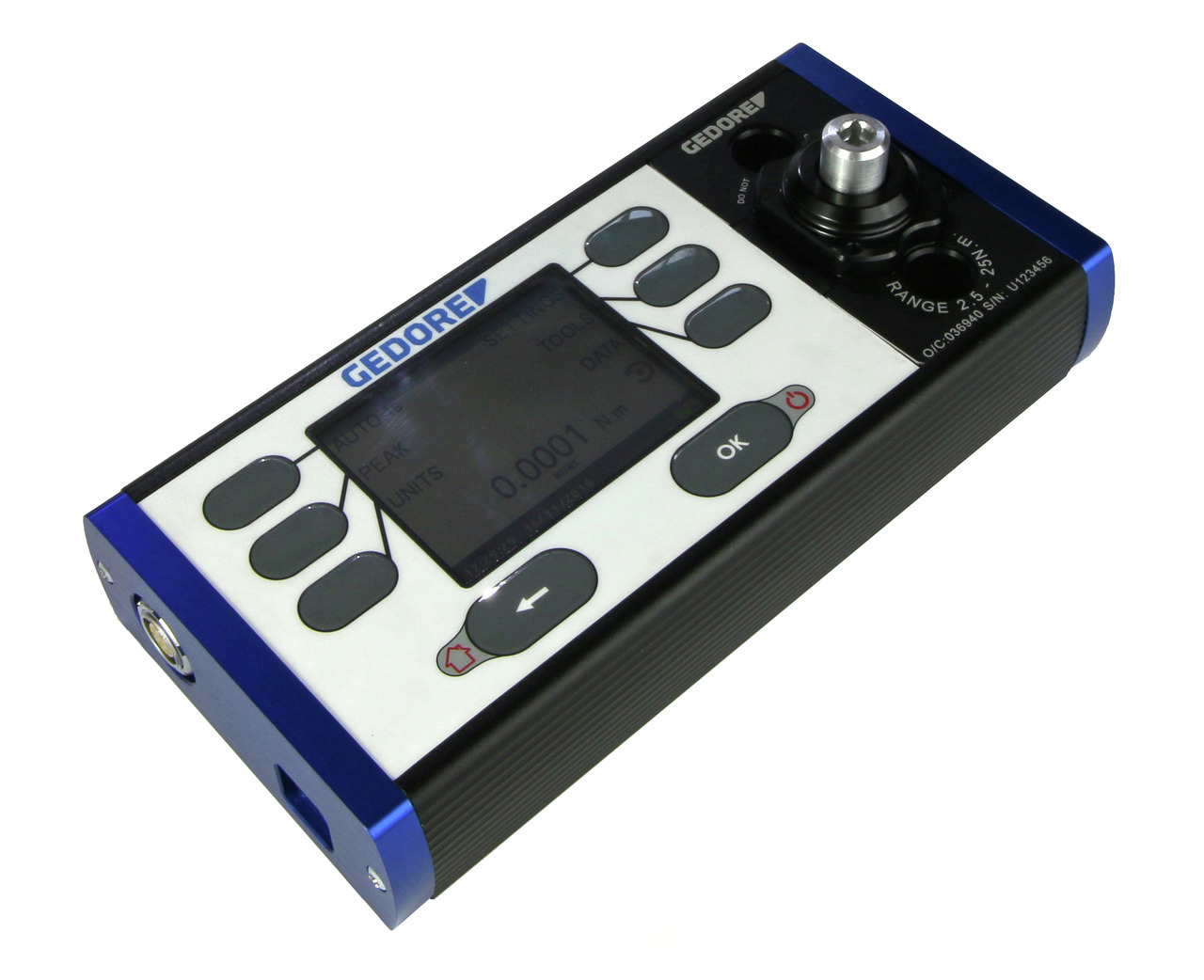

• Digital torque tester for testing torque wrenches and torque screwdrivers
• Light and robust thanks to the aluminum basic housing, horizontal and vertical mounting possible
• 4 models in the range of 0.1-25 Nm
• With 1/4 "square socket (CH25 with 3/8")
• Measuring tolerance +/- 1 % for all readings
• 4 measurement modes: sliding value display (track), breakpoint detection (first peak), peak value measurement (peak), screwdriver test
• Including screw joint simulator attachment for testing screwdrivers
• Switchable units Nm, cNm, lbf·ft, lbf·in, ozf·in
• 50 test sequences can be programmed
• 2000 measured values can be saved
• Clear and high-contrast TFT display
• Expandable by an additional capture sensor (connection socket available)
• Powerful lithium-ion battery for Line Side mains-independent work
• Data output and mains operation via USB connection
• Optional: PC evaluation software "Capture Manager" (2908778)
• Scope of delivery:
• Free evaluation PC software included
• Screw joint simulator
• USB cable
• Power supply unit with Euro plug
• Operating instructions
• Test certificate
• Stable plastic case with inlay

Information

• Contents (Qty of pieces):1
• Total length [mm]:200 mm
• Drive mount, square [metric]:6,3 mm
• Total width [mm]:110 mm
• Total height [mm]:50 mm
• Material:Aluminium housing
• Drive connector square [inch]:1/4"
• REACH:compliant
• Measurement accuracy:± 1 % Toleranz bei allen Ablesewerten
• Interface:USB
• Operating direction:right
• Overload protection:0
• Graphic display:0
