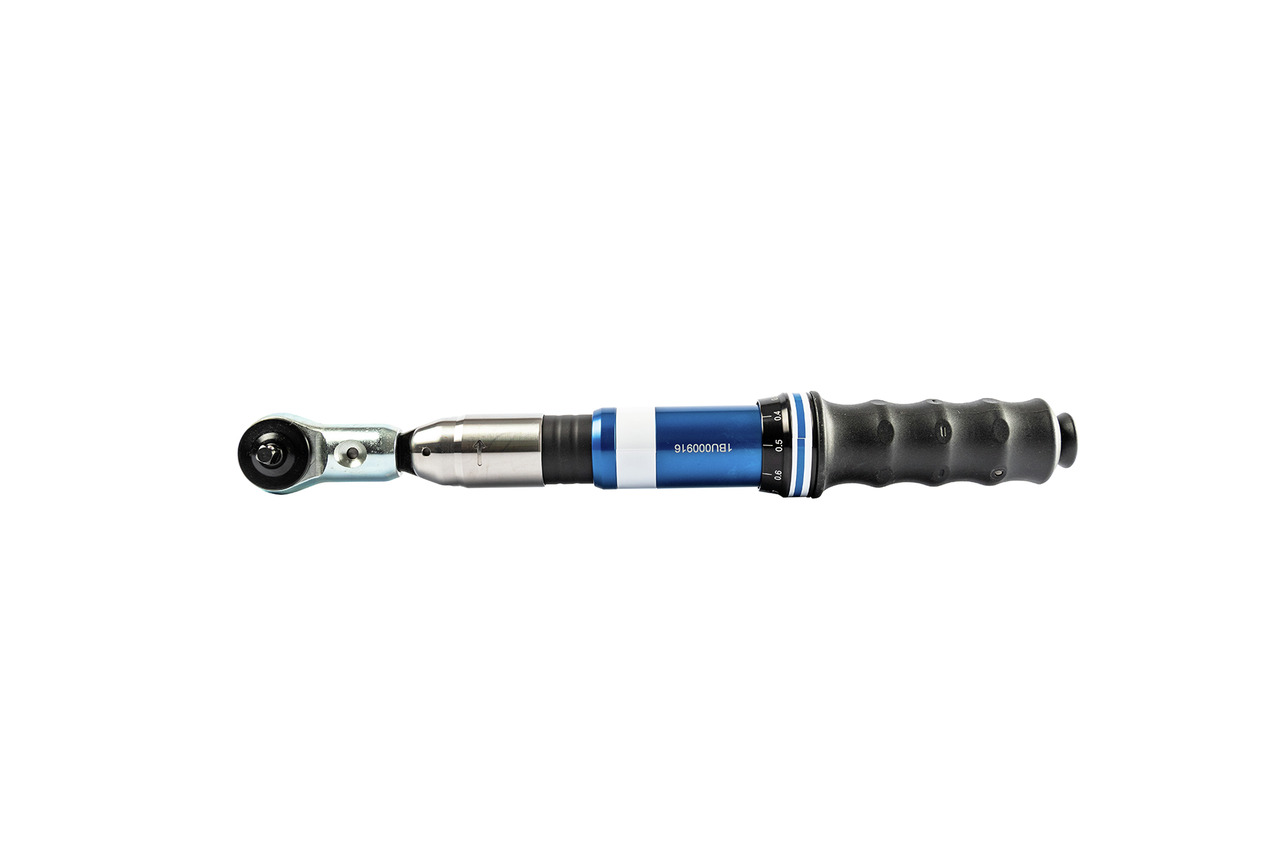

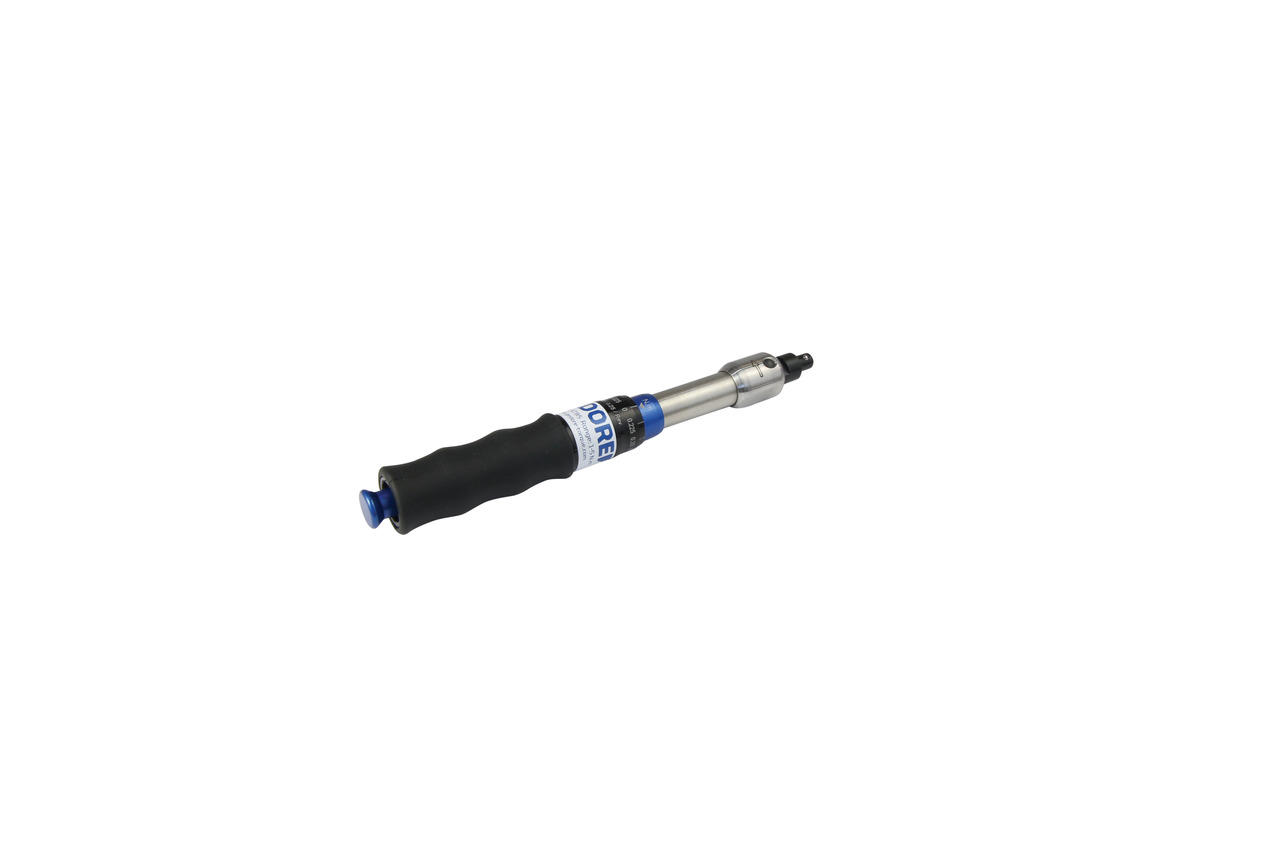

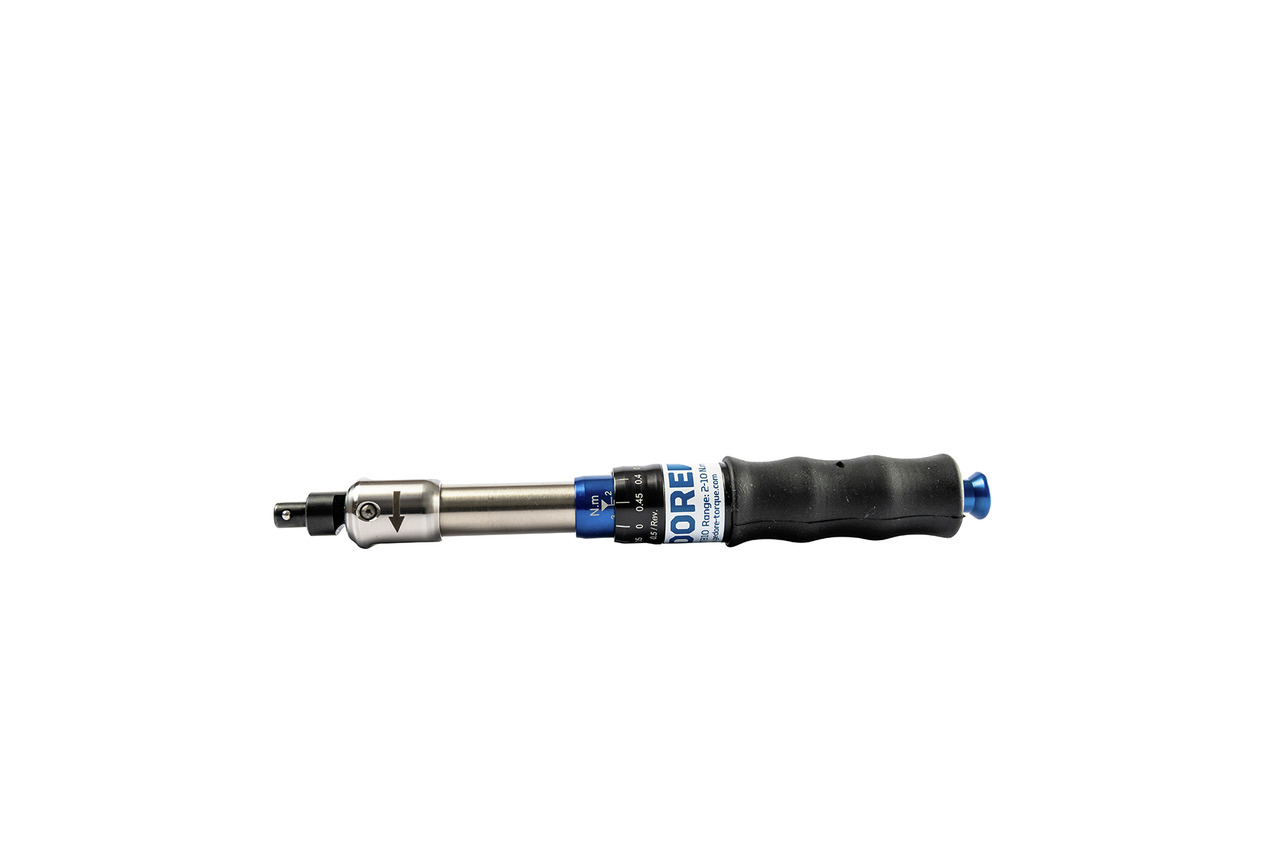

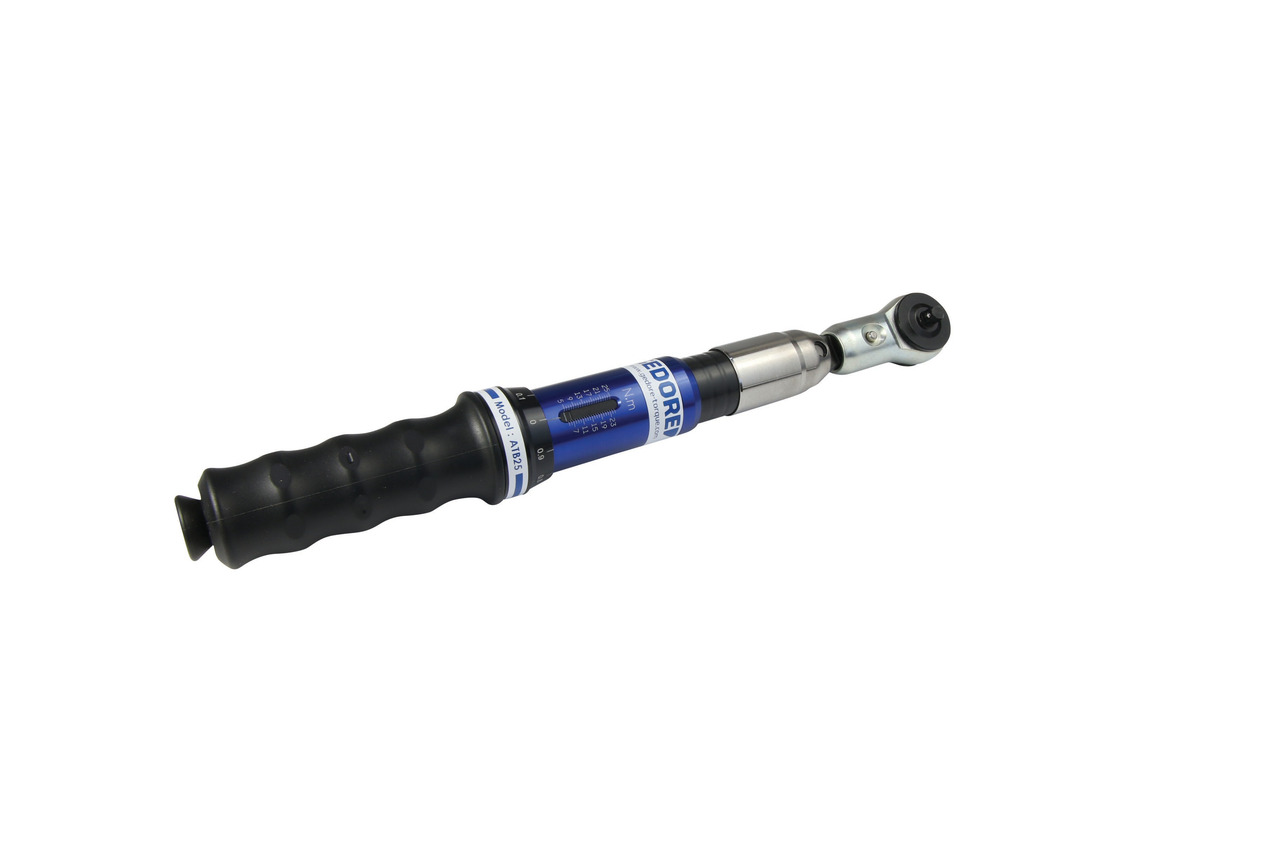

ATB Breaking torque wrench

• Type ATB 2.5 to ATB 10 with 8 mm pin
• Type ATB 25 to ATB 100 with 16 mm pin incl. Insert ratchet
• With micrometre scale, which allows quick and precise adjustment of the desired value
• With adjuster lock that prevents accidental adjustment during use
• Release accuracy: +/- 4% tolerance of the set value (ATB 2.5; ATB 5; ATB 10 +/- 6% tolerance)
• Breaking of the handgrip by 20° when the pre-set torque value is achieved makes over-tightening unlikely
• Classified according to DIN EN ISO 6789 Type II Class A.

Information

• Contents (Qty of pieces): 1 tlg.
• Material: Tubular steel construction
• Epa-/Esd-Model: 0
• Drive type/drive: Drive pin
• REACH registration available: 0
• Trigger mechanism: Long travel triggering
• Precision +/-: +/- 4 %
• Tightening direction: Left and right
• Fixed setting: 0
• Test certificate: DIN EN ISO 6789-02:2017
• Target groups: Automotive Industry Precision mechanics Military Mechanical engineering Service
• Range of application: Assembly Series assembly Production Quality control Repair and maintenance Maintenance and repair Testing and trial departments
• :
• :
• :
• :
• :
• :
• :
• :
• :
• :
• :
• :
• :
• :
• :
• :
• :
• :
• :
• :
• :
• :
• :
• :
• :
• :
• :
• :
