ADS — EDS Torque wrench mit Schleppzeige

Order Code: 144136

Specifications

About this product

  • Socket:
  • Controlled tightening and verification of tightening values
  • For use in almost all industrial manufacturing areas
  • Working ranges from 0.8 - 200 Nm / 7 lbf·in - 160 lbf·ft are covered
  • Features:

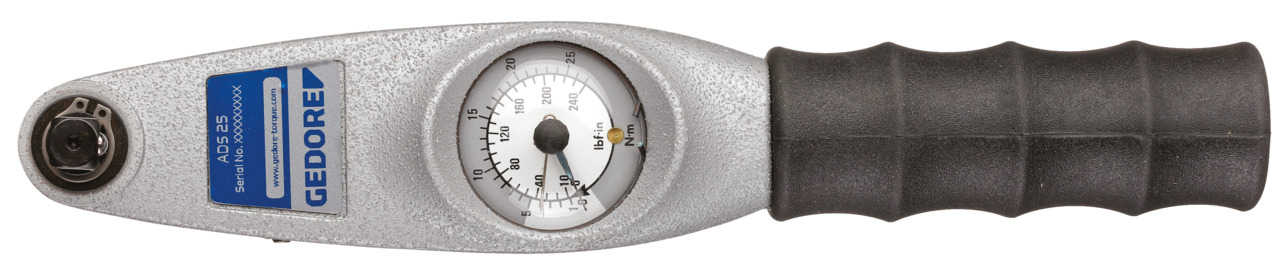

  • Dial-indicating torque wrench with dual scale and slave pointer
  • 1/4" , 3/8" , or 1/2" double square drive with ball lock for controlled clockwise and anticlockwise tightening
  • Versatile usage. Use for Maintenance, Repair, Assembly and Quality Control
  • For controlled screw tightening and torque measurements
  • Display accuracy: +/- 4 % tolerance of the indicated value
  • Acc. to DIN EN ISO 6789, traceable to national standards
  • With dual scale in Nm and lbf·in or lbf·ft double-tinted clearly readable face
  • 5 % overload of the maximum value
  • Housing made of light, robust special aluminium construction - painted silver-grey
  • Black, non-slip rubber handgrips
  • Model No. ADS 4 to No. ADS 40: EPA (Electrostatic Protected Area) compliant, for use in electrostatically sensitive applications
  • Test certificate acc. to DIN EN ISO 6789
  • Scope of delivery:
  • Watch torque wrench
  • Battery (only models with option: Signal)
  • Test certificate acc. to DIN EN ISO 6789
  • Delivery in a robust, black plastic box (No. ADS 4 to BDS 80), otherwise in sturdy cardboard packaging (No. BDS 100 to EDS)

Information

  • Contents (Qty of pieces):1
  • Material:Aluminum housing, tubular steel handle bar
  • Epa-/Esd-Model:0
  • Drive type/drive:Double square ratchet
  • REACH:compliant
  • Measurement accuracy:+/- 4% Toleranz vom angezeigten Wert
  • Graphic display:0
  • Evaluation software:0
  • Precision +/-:+/- 4 %
  • Tightening direction:Left and right
  • Fixed setting:0
  • Test certificate:DIN EN ISO 6789-2:2017
  • Target groups:Automotive Electronics industry Industry Construction and commercial vehicles Military Mechanical engineering Service
  • Range of application:Production Quality control Maintenance and repair
