Controlled screw tightening in the range of 150 - 1000 Nm
Industry and vehicle sector (lorries, industrial vehicles)
Features:
Adjustable torque wrench - with scale

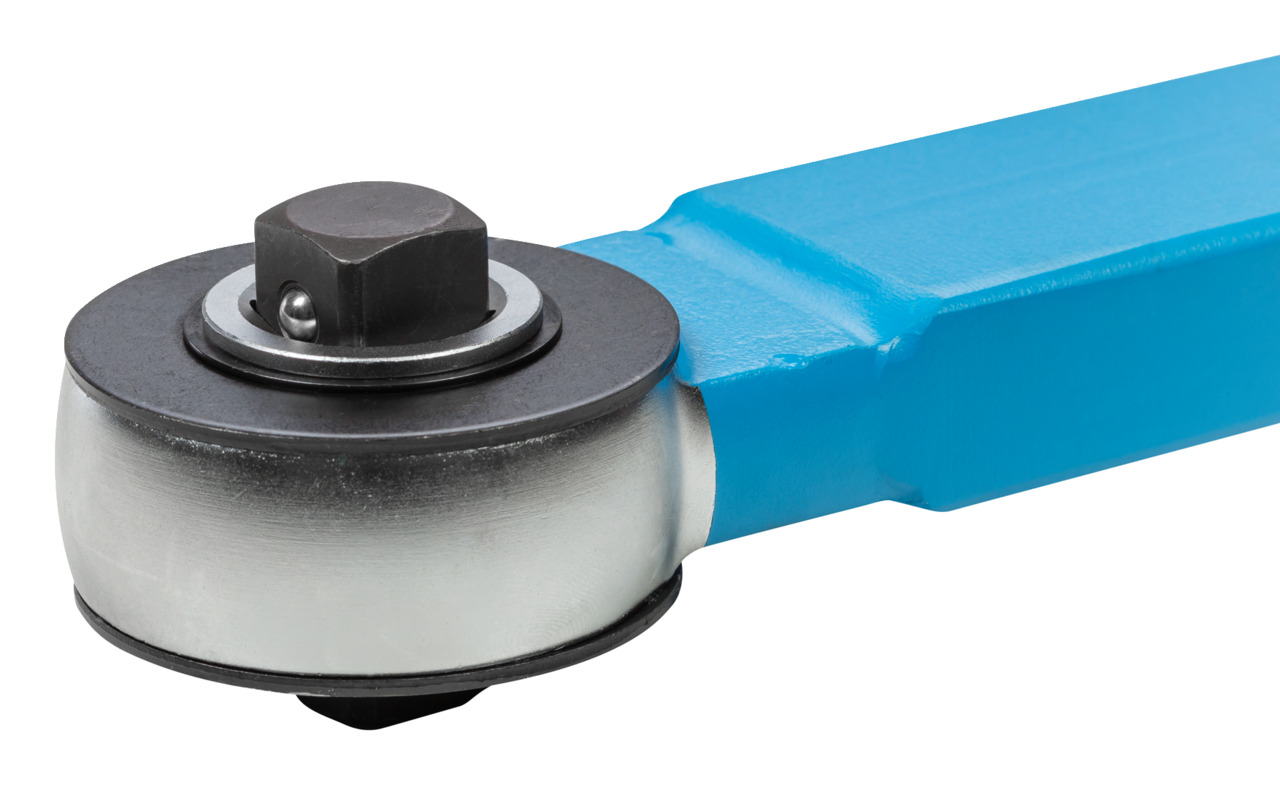

3/4" square drive with integrated ratchet function
Suitable for bi-directional tightening on account of push-through square drive
Working accuracy: +/- 4 % tolerance of set torque
Acc. to DIN EN ISO 6789, traceable to national standards
Breaking mechanism as an actuation signal which can be seen and felt and makes over-tightening unlikely
Double scale in Nm and lbf·ft
Scope of delivery:
Torque wrench Typ 88 KNICKER
Test certificate acc. to DIN EN ISO 6789

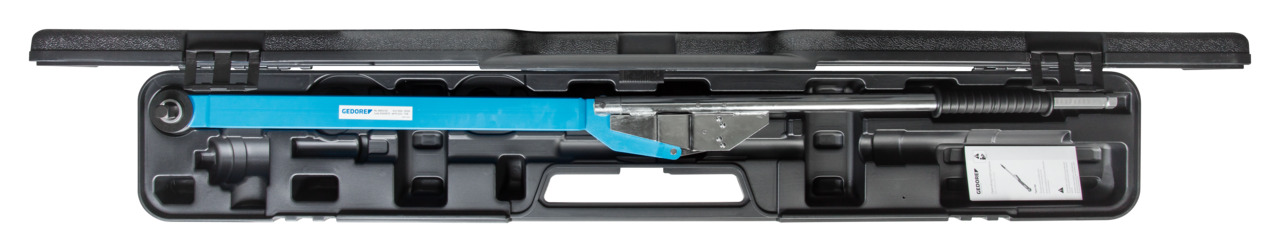

Delivery in sturdy plastic case
Information
Drive square inch:3/4"
Contents (Qty of pieces):1
Material:Tubular steel construction
Drive connector square [metric]:20 mm
Return angle:10 °
No. of teeth:36
Drive type/drive:Push-through square
REACH:compliant
Graduation [lbf·ft]:10 lbf·ft
Storage/Content:Plastic case
Trigger mechanism:Long travel triggering
Precision +/-:+/- 4 %
Tightening direction:Left and right
Fixed setting:0
Scale division [Nm]:20 Nm
Target groups:Automotive
Industry
Construction and commercial vehicles
Consumer
Military
Mechanical engineering
Utilities
Service
Railway
Agriculture
Oil & Gas
Range of application:Assembly
Maintenance and repair
