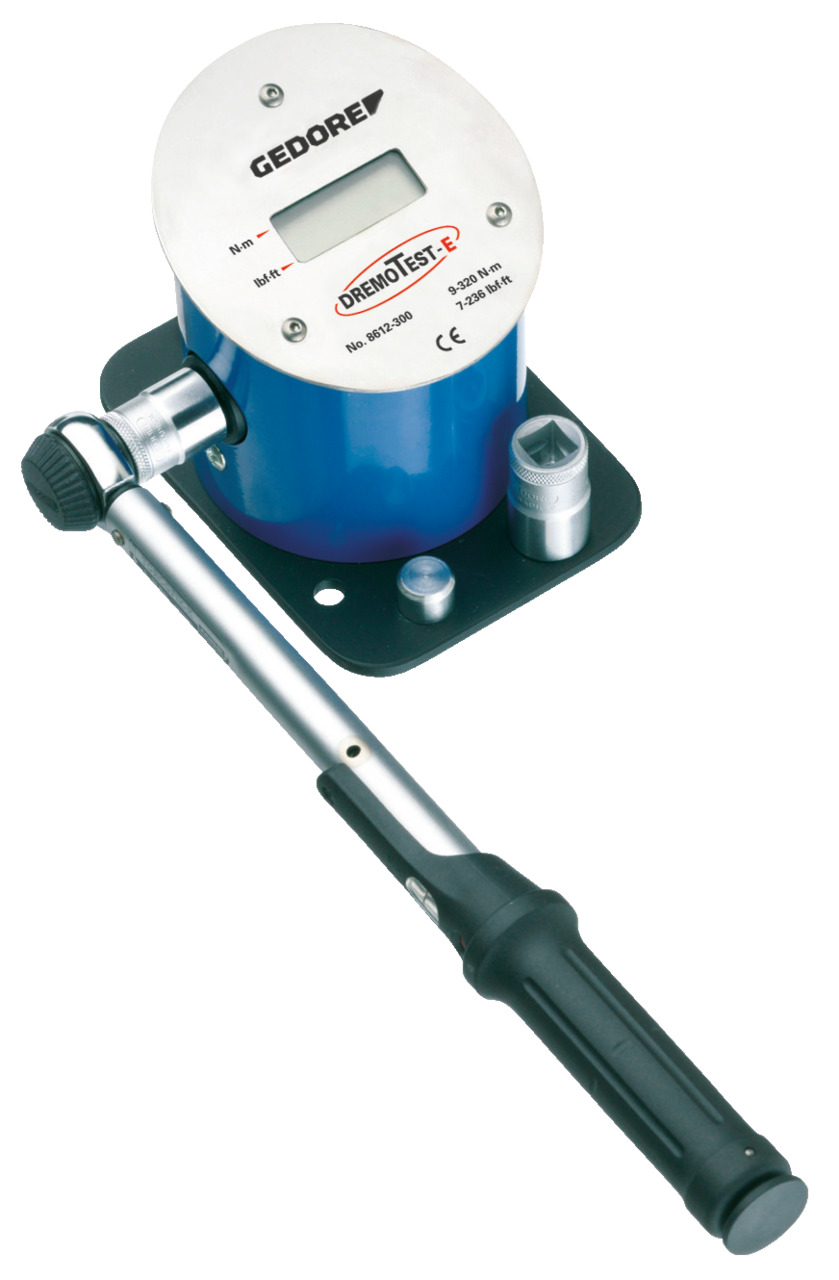

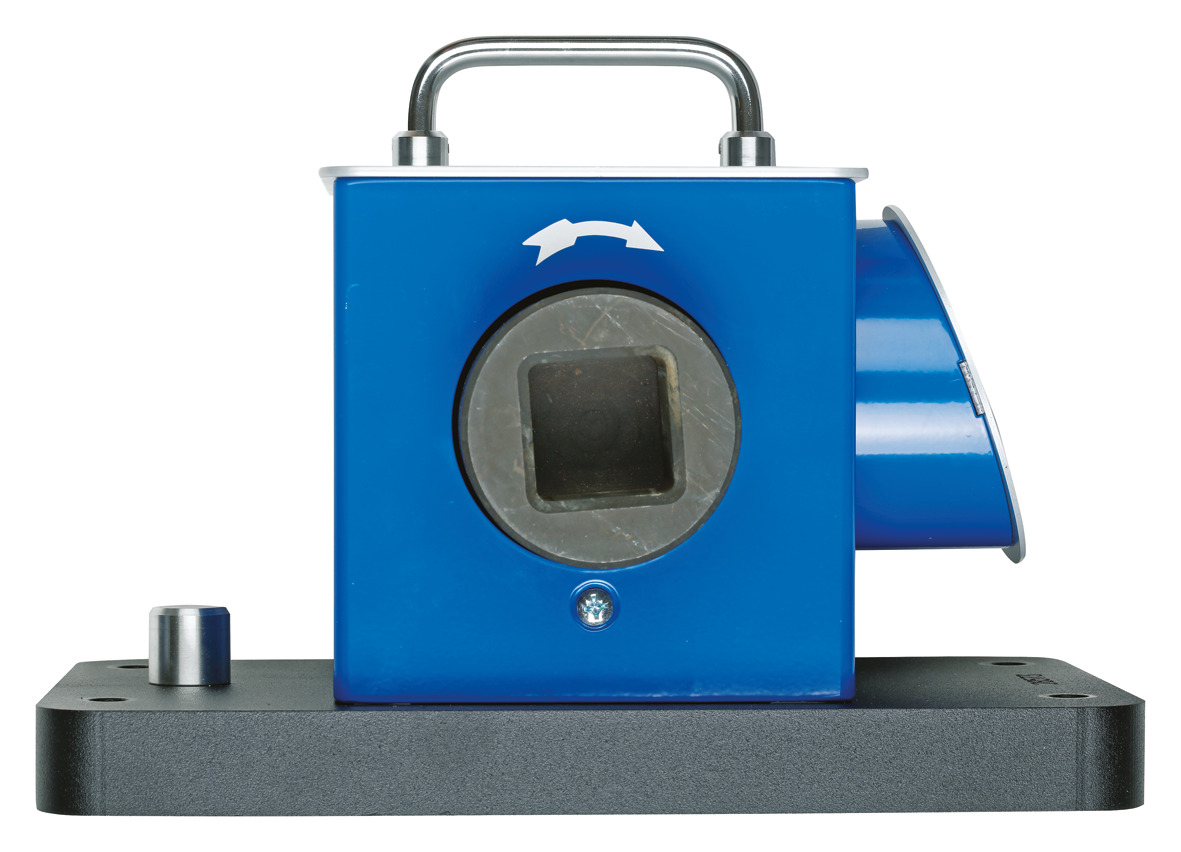

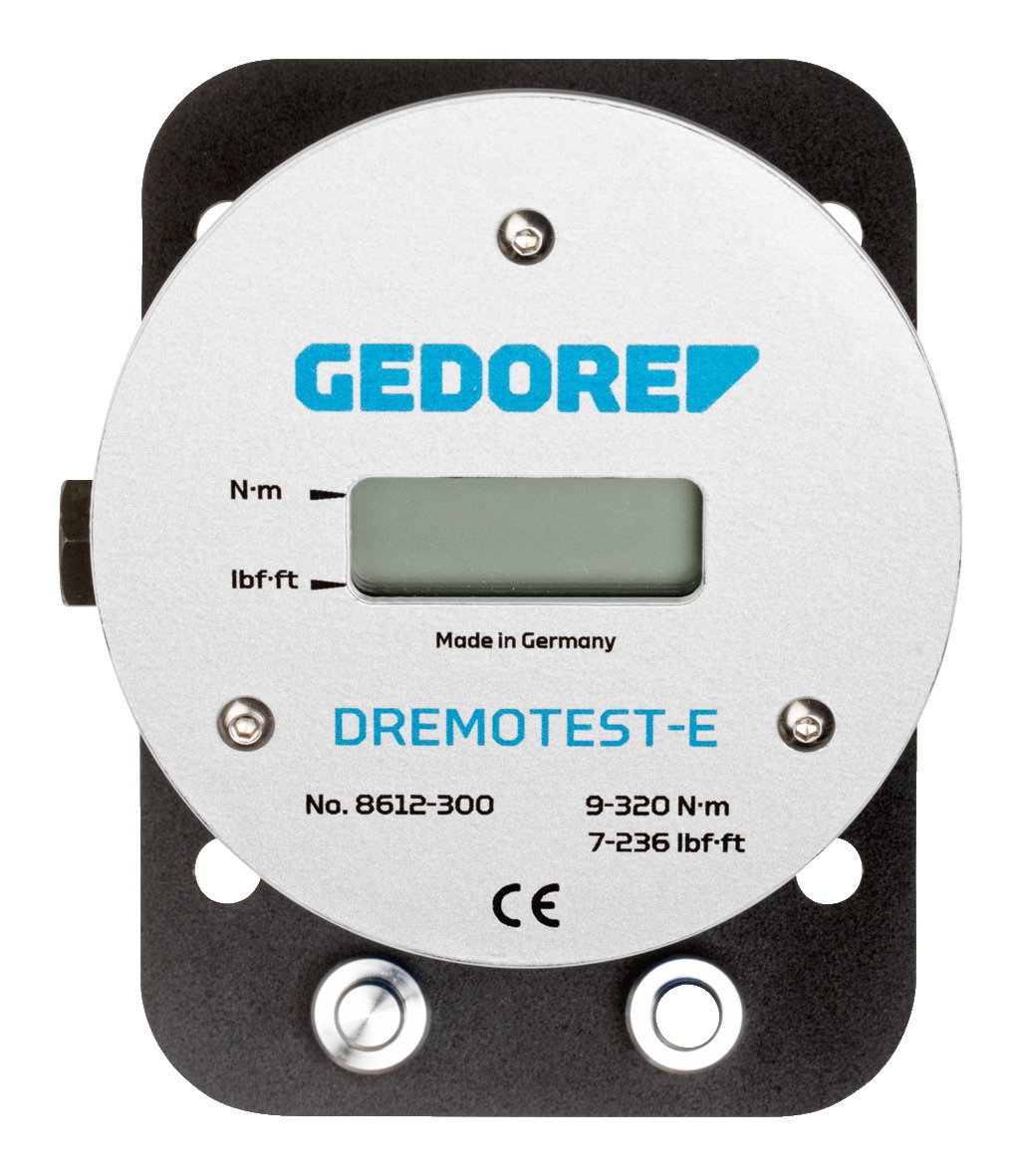

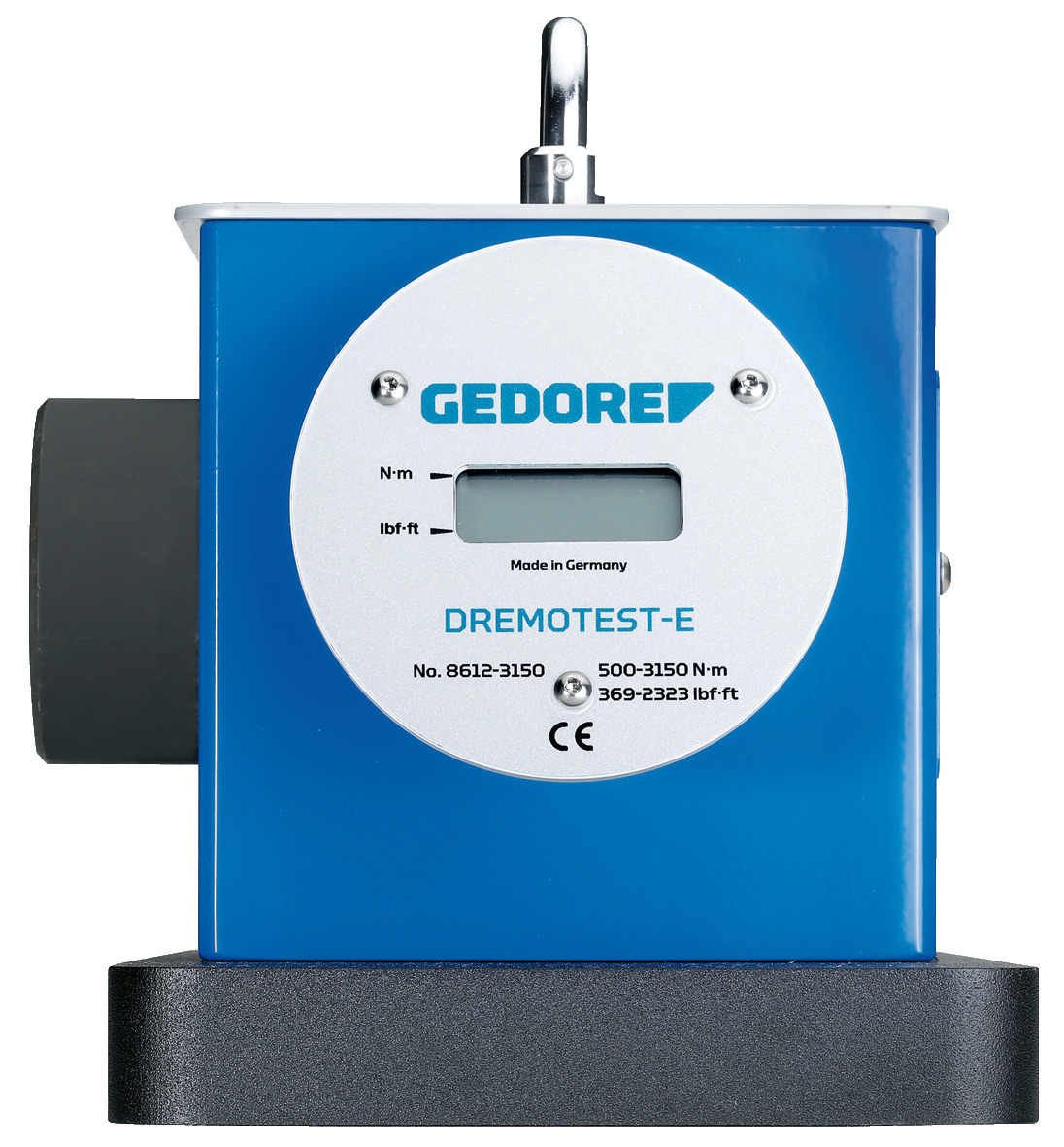

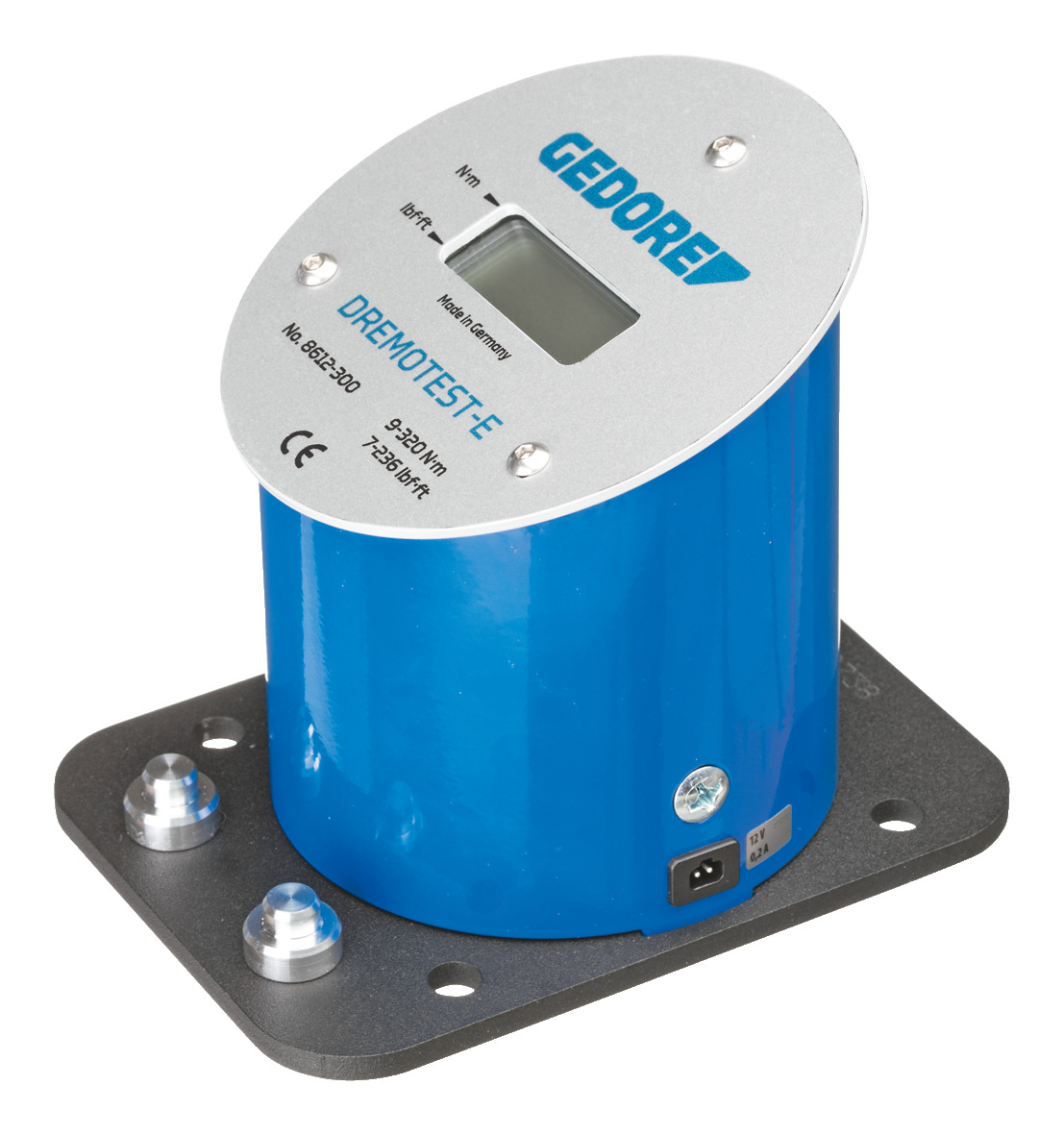

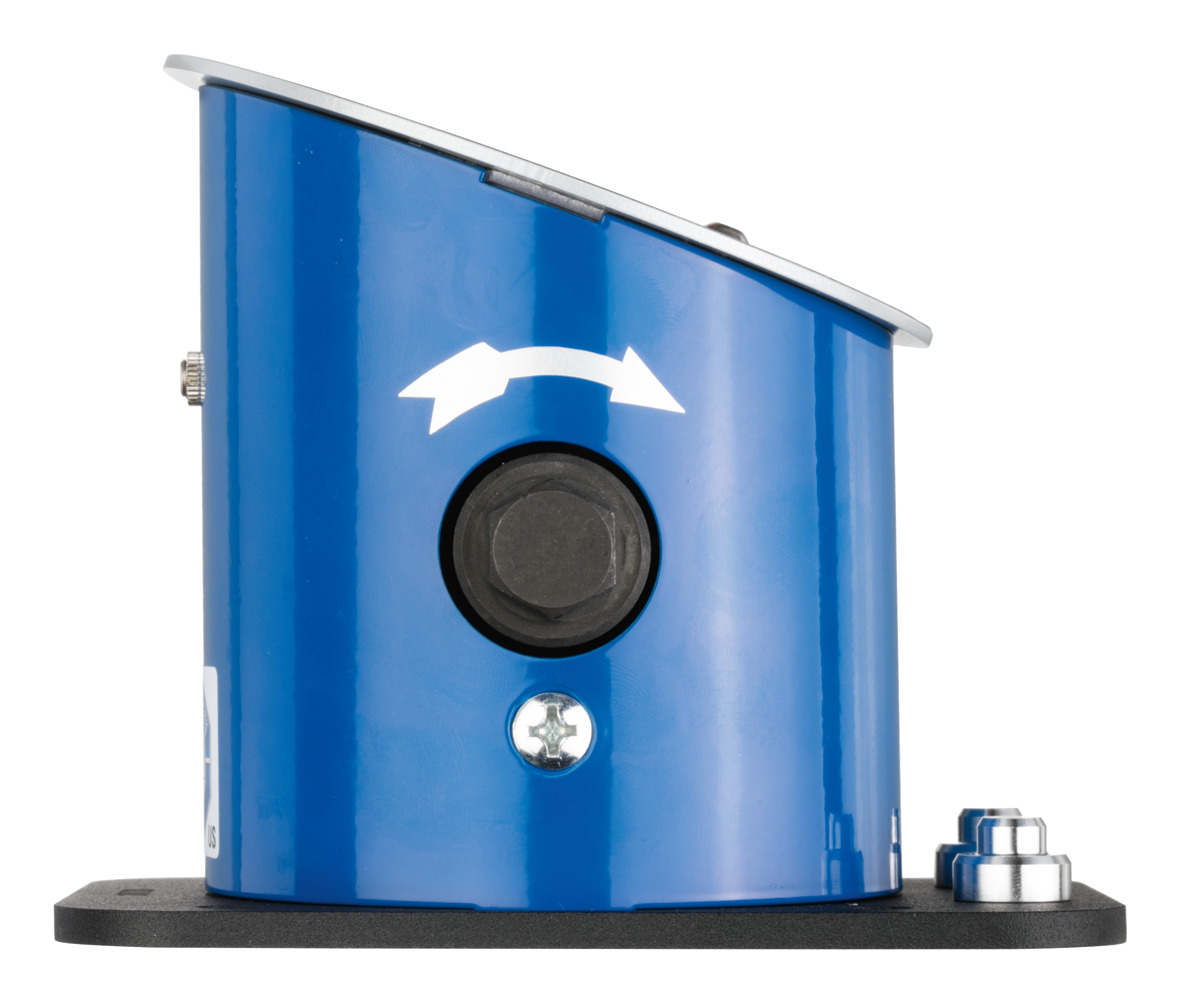

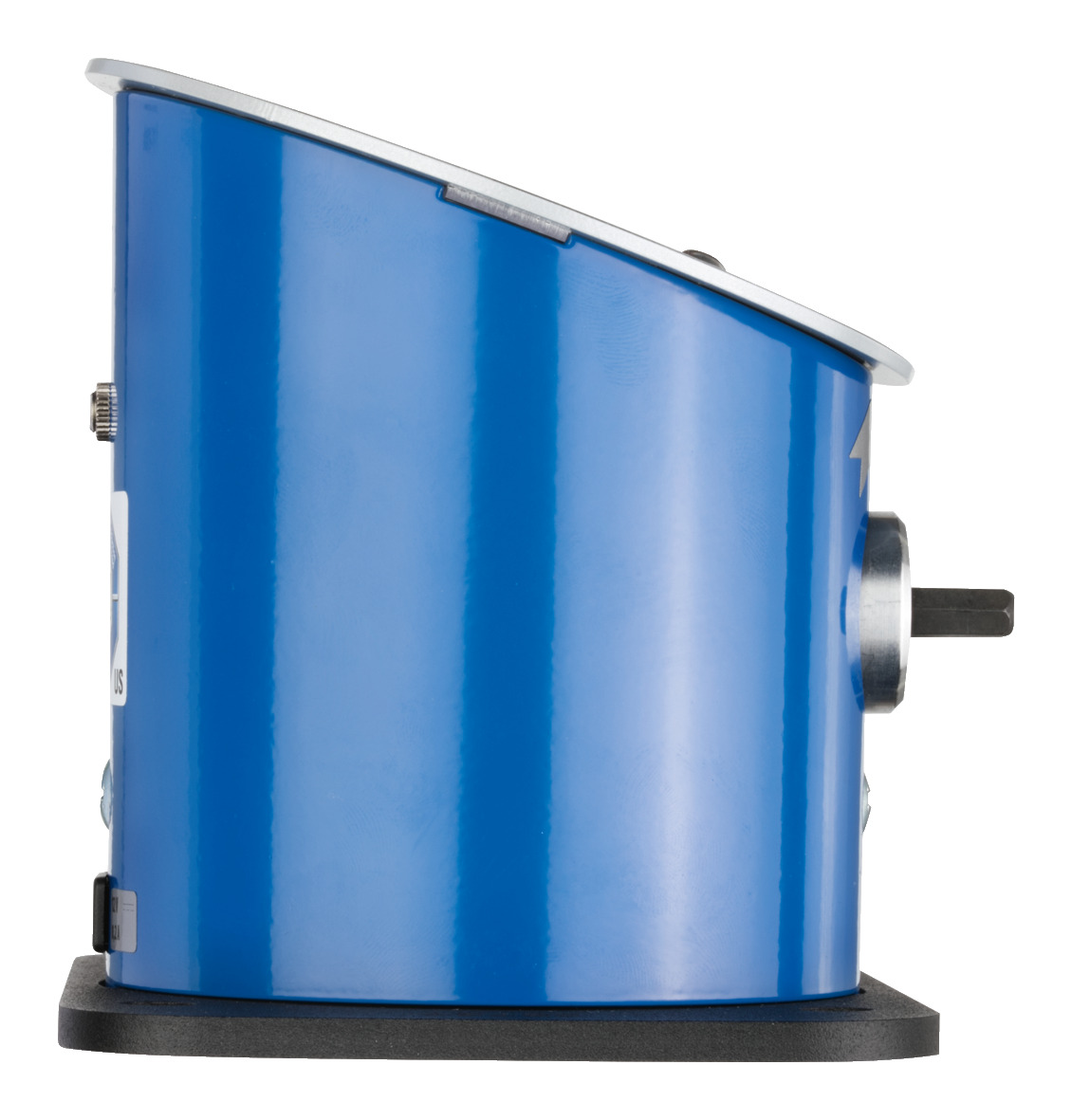

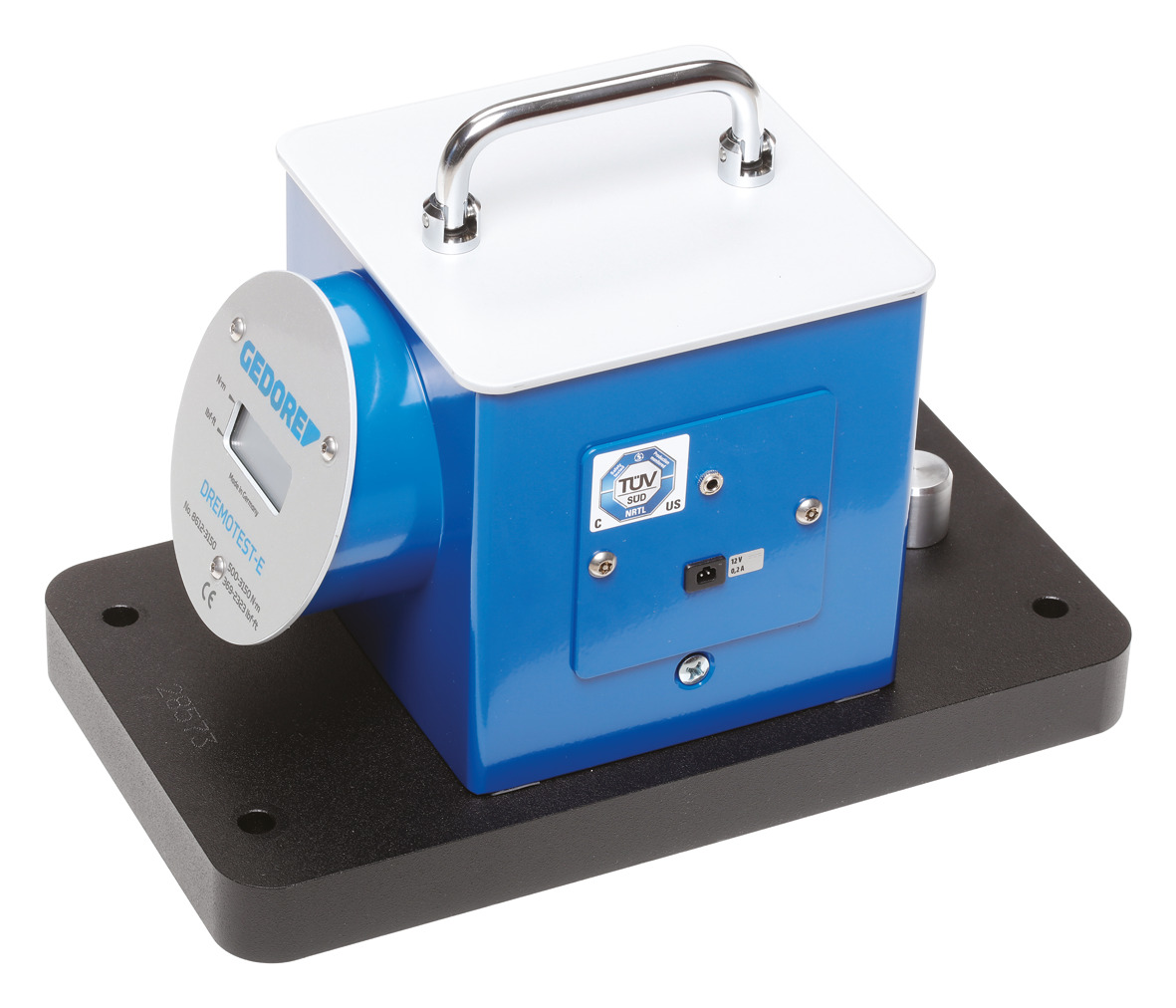

8612 Electronic torque tester DREMOTEST E 0,2–3150 N·m / 1,8 lbf·in — 2323 lbf·ft

• For checking or adjusting right-hand torque wrenches and torque screwdrivers, ideal for checking fixed torque wrenches on the line
• Easy to use, electronic test instrument with integrated torsion transducer (DMS)
• 5 models in the range 0,2 - 3150 Nm
• 5 models in the range from 0,2 to 3.150 N·m
• With 1/4", 3/8", 1/2", 3/4", 1" square adaptor or bit adaptor 1/4" or 3/8" (depending on model)
• High measurement accuracy: +/- 1% tolerance of reading, +/- 1 digit
• 1. peak value detection (first peak / breakpoint detection)
• Autoreset
• Switchable between Nm, lbf·ft and lbf·in
• Serial interface RS232 for PC
• Software for plausibility check on request - Software suite: (Code 3454630)
• Scope of delivery:
• Electronic torque tester
• RS232 Cable
• Power supply unit with EURO plug (UK, US, AUS-adaptor on request)
• 100 - 240 V, 50 - 60 Hz, max. 500 mA (note type plate)
• 2 socket wrench inserts (size and drive depending on model)
• Adaptor for No. 8612-3150
• Operating instructions
• Packaging
• Test certificate

Information

• Contents (Qty of pieces):1
• REACH:compliant
• Measurement accuracy:± 1 % Toleranz bei allen Ablesewerten, ± 1 Digit
• Interface:3,5 mm Klinkenausgang (RS232)
• Overload protection:0
• Graphic display:0
