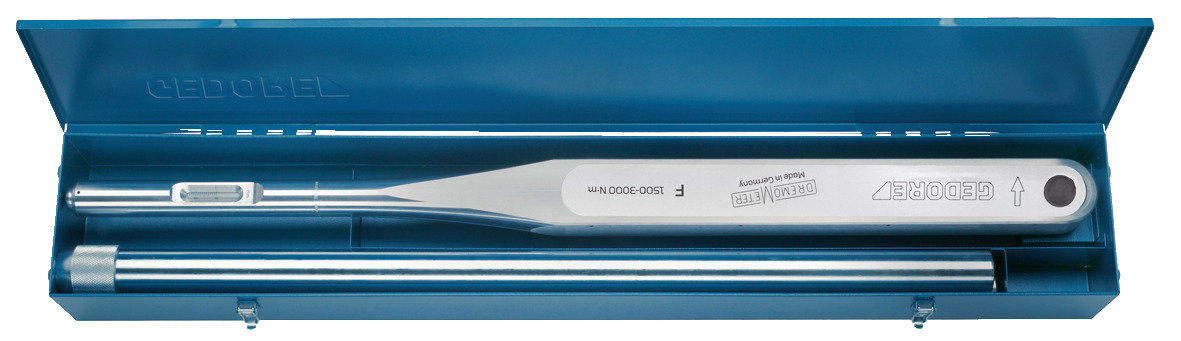

8572 F Torque wrench DREMOMETER

Order Code: 4571

Specifications

About this product

  • Socket:
  • Controlled screw tightening in the range of 1500 - 3000 Nm
  • For use in almost all industrial manufacturing areas
  • Features:
  • Classified according to DIN EN ISO 6789-2:2017 Type II Class A, incl. traceable test certificate, calibrated to a maximum permissible deviation of +/- 3 % and thus more precise than the +/- 4 % required by the standard
  • 1.1/2" square drive with pin-locking mechanism DIN 3121 - F 40, ISO 1174
  • Automatic short-path actuation with tactile impulse and audible signal
  • Single scale with a scale graduation of 50 Nm
  • Technical advantage/Function:
  • Lightweight yet robust (as the housing is made of an aluminium alloy) and resilient, very workshop-friendly
  • No inaccuracies whether used with both hands or held away from the handle (as for standard torque wrenches)
  • Both the square drive and fulcrum are on an axis which ensures a high degree of user safety; can be extended to reduce the user's working load.
  • Extremely low wear attributable to reduced forces in a lever mechanism
  • Forged lever chain from our group own quality forge
  • Maximum precision even when subjected to extreme continuous use
  • Long life cycles and tool lives
  • Easy operation - fast and safe torque tightening
  • Easy adjustment thanks to attractive adjusting button secured against loss at the end of the handle
  • For controlled clockwise tightening

Information

  • Net weight [g]:15000 g
  • Drive square inch:1.1/2"
  • Contents (Qty of pieces):1
  • Total length [mm]:1.037 mm
  • Torque (min.) [Nm]:1500 Nm
  • Torque (max.) [Nm]:3000 Nm
  • Torque range (min./max.) [Nm]:1500 Nm-3000 Nm
  • Torque range (min./max.):-
  • Total width [mm]:70 mm
  • Total height [mm]:40 mm
  • Material:Aluminum alloy
  • Drive connector square [metric]:40 mm
  • Graduation:50
  • Head height 1 [mm]:40 mm
  • Width of head 1 [mm]:70,0 mm
  • housing to square drive:35 mm
  • Length extension tube:925 mm
  • Drive type/drive:Single square rigid
  • Torque wrench type:F
  • Length of slip-on tube 2:745 mm
  • Standard:ISO 1174 DIN 3121 – F40
  • REACH:compliant
  • Calibration length:2309 mm
  • Net weight [kg]:15 kg
  • Storage/Content:Box
  • Trigger mechanism:Short path triggering
  • Precision +/-:+/- 3 %
  • Tightening direction:Right
  • Fixed setting:0
  • Test certificate:DIN EN ISO 6789-2:2017
  • Target groups:Industry Construction and commercial vehicles Military Energy Mechanical engineering Utilities Service Oil & Gas
  • Range of application:Assembly Maintenance and repair
