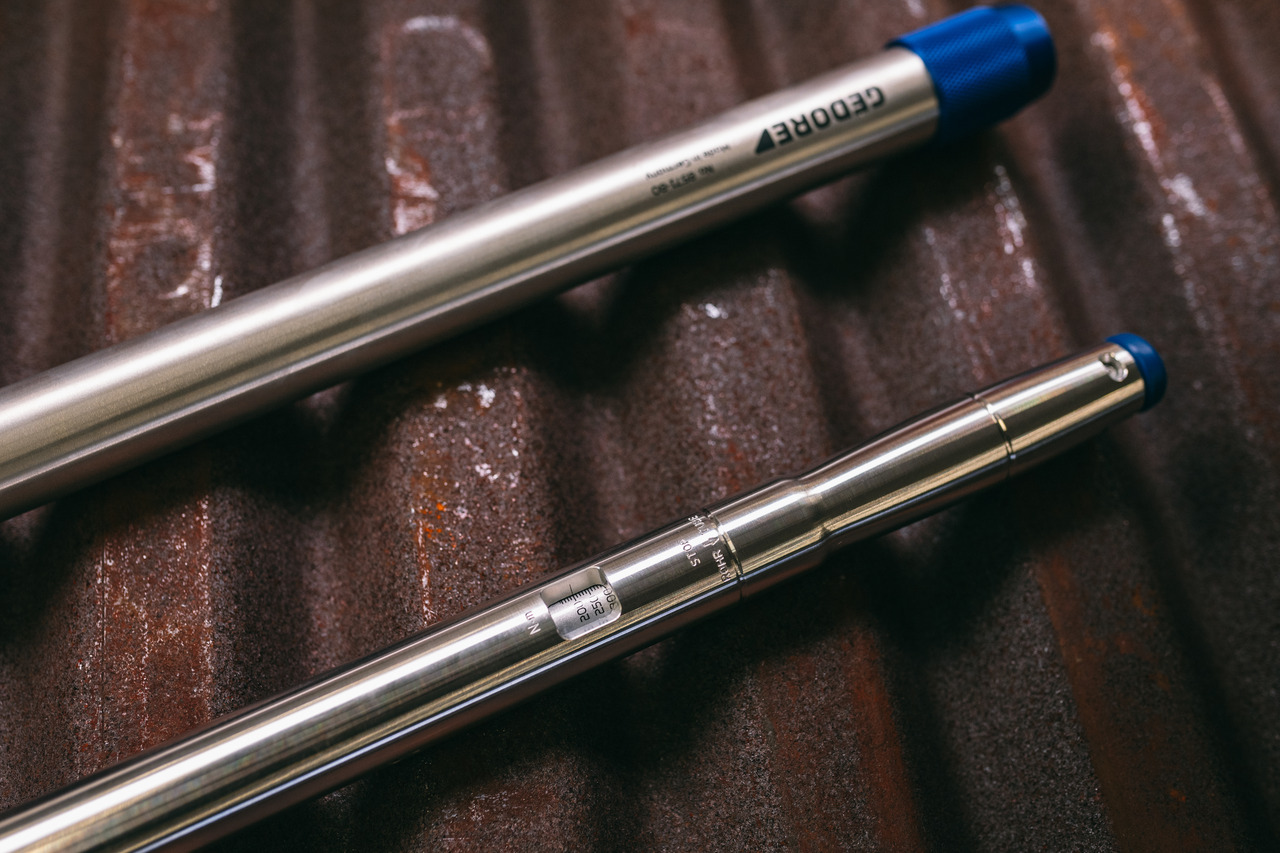

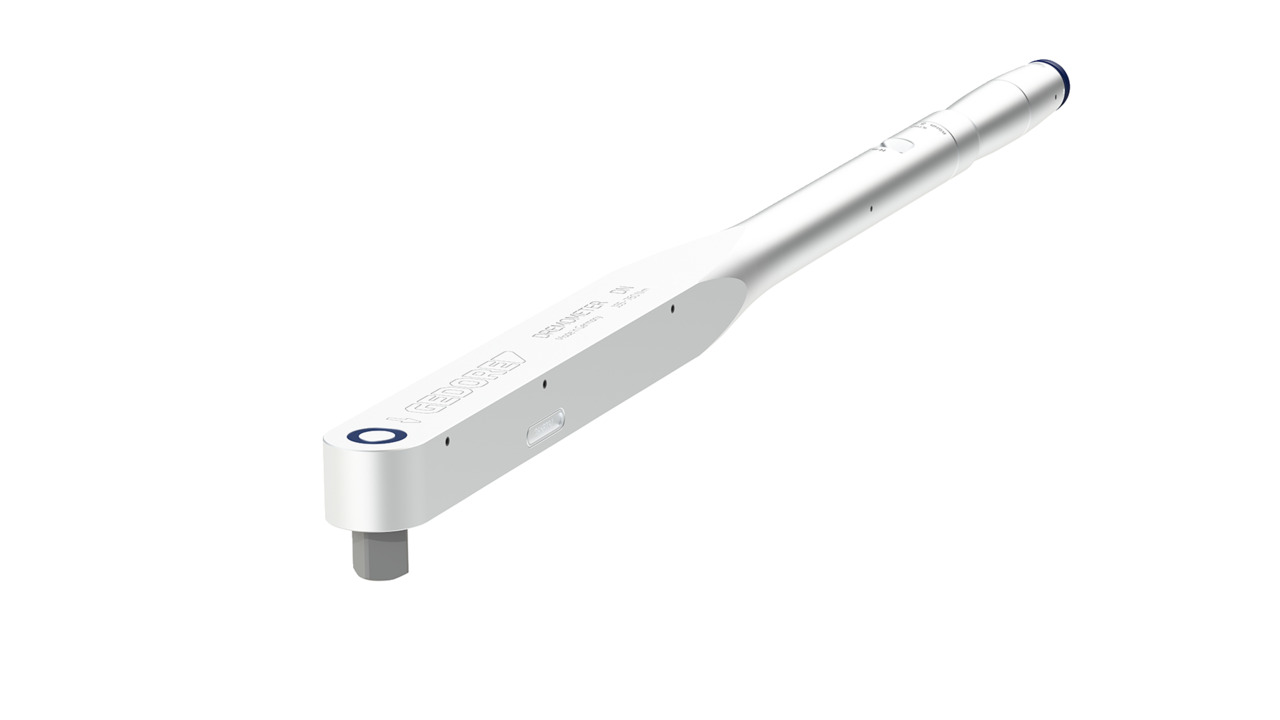

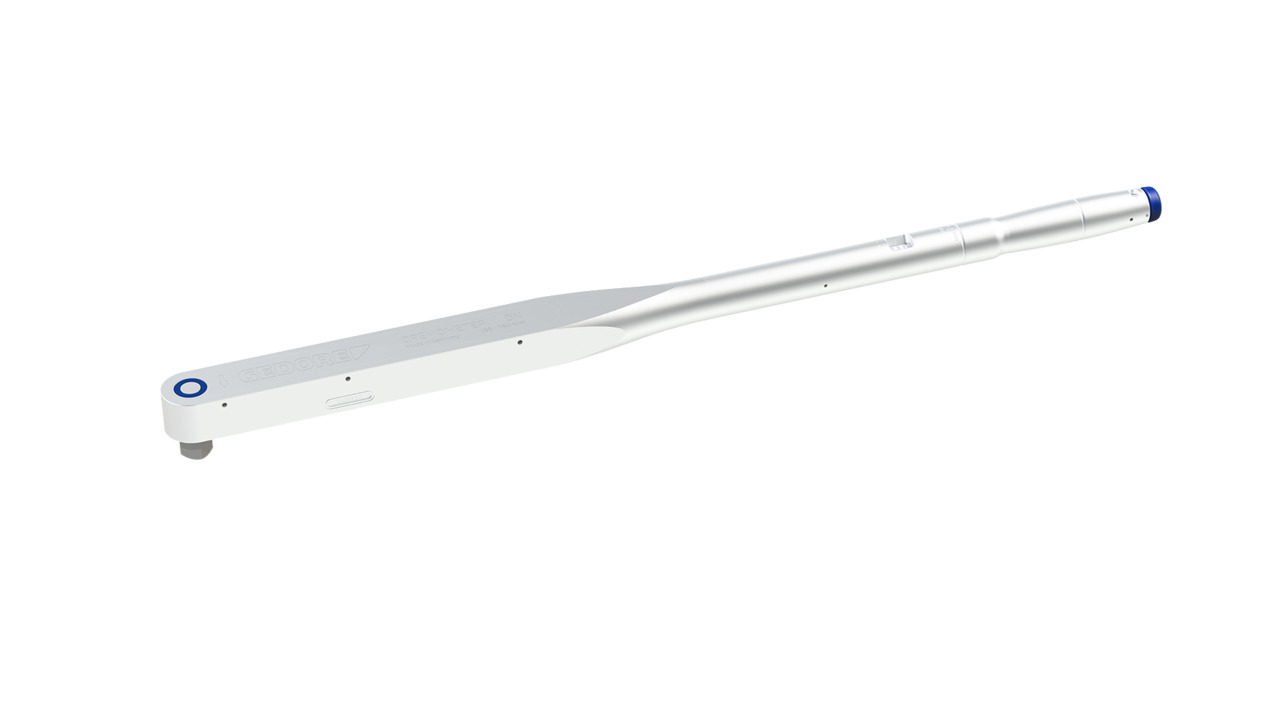

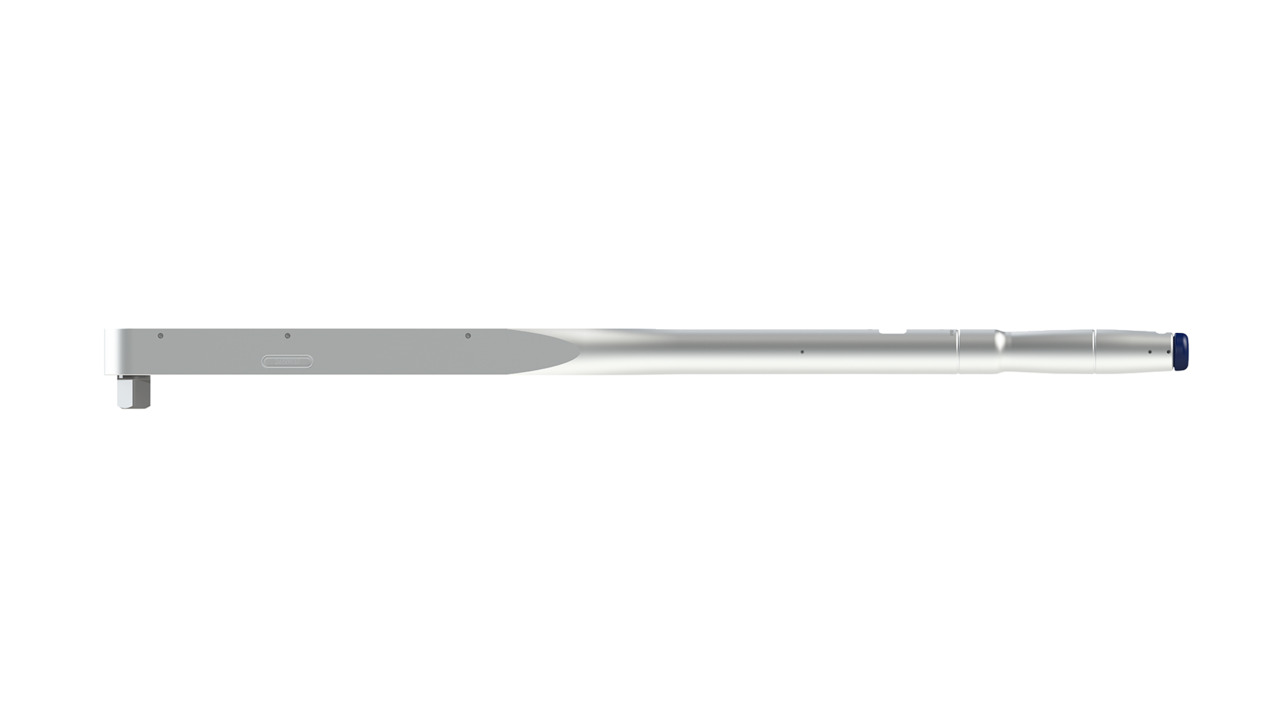

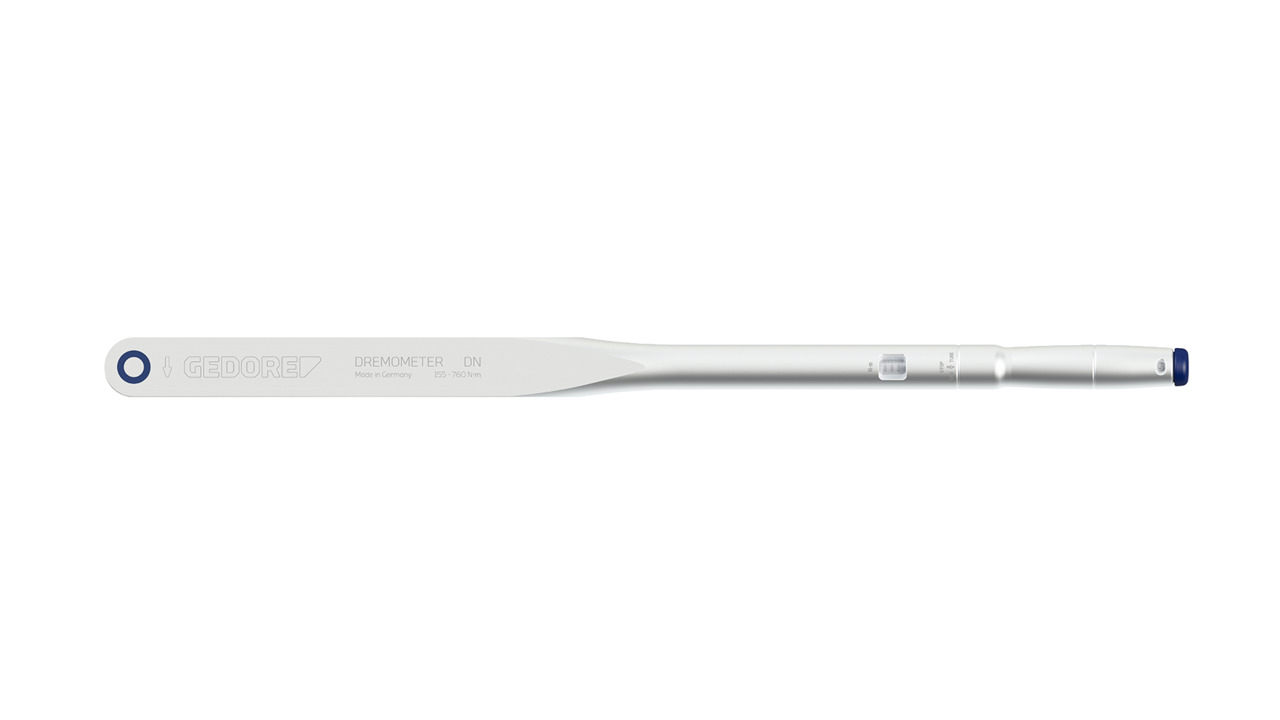

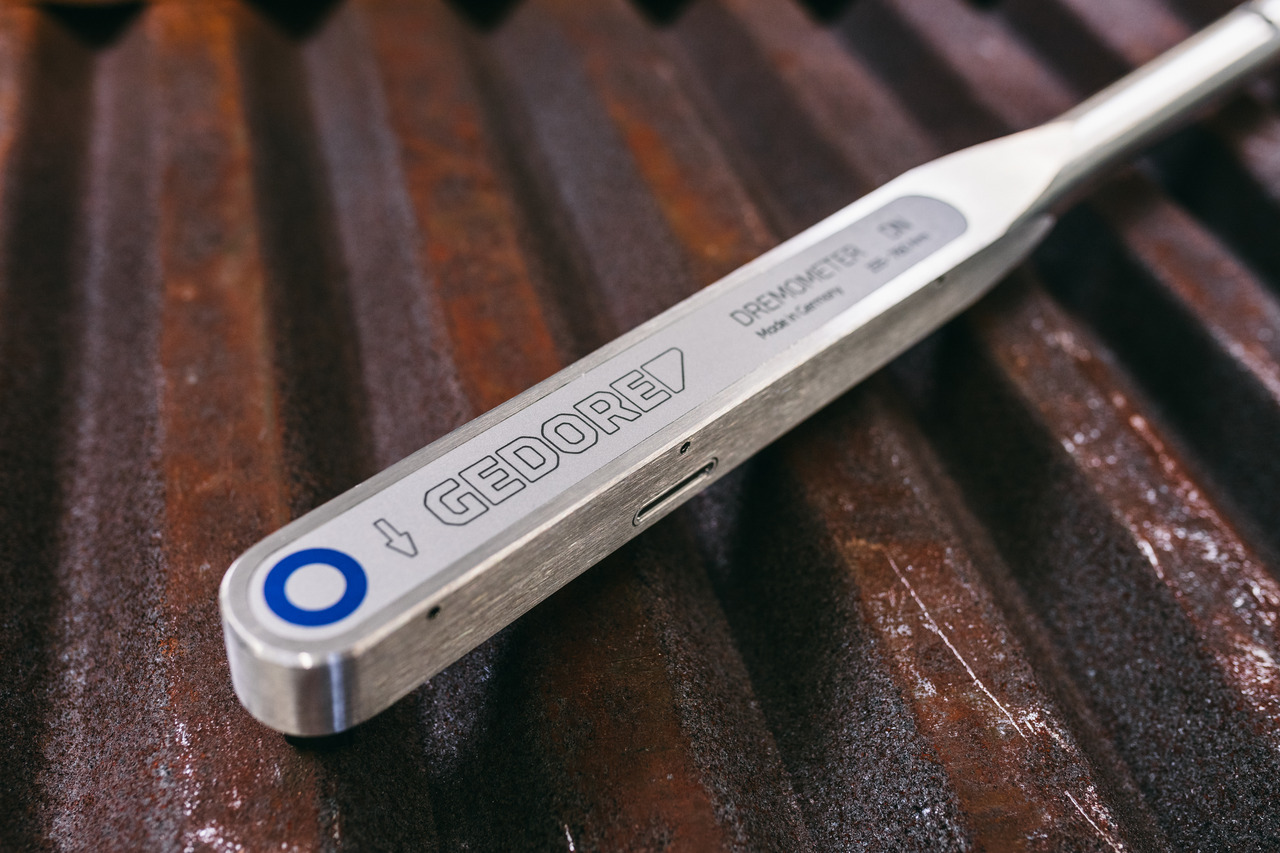

8563-N-05 Torque wrench DREMOMETER DNR set 3/4″

Order Code: 160053

Specification

About this product

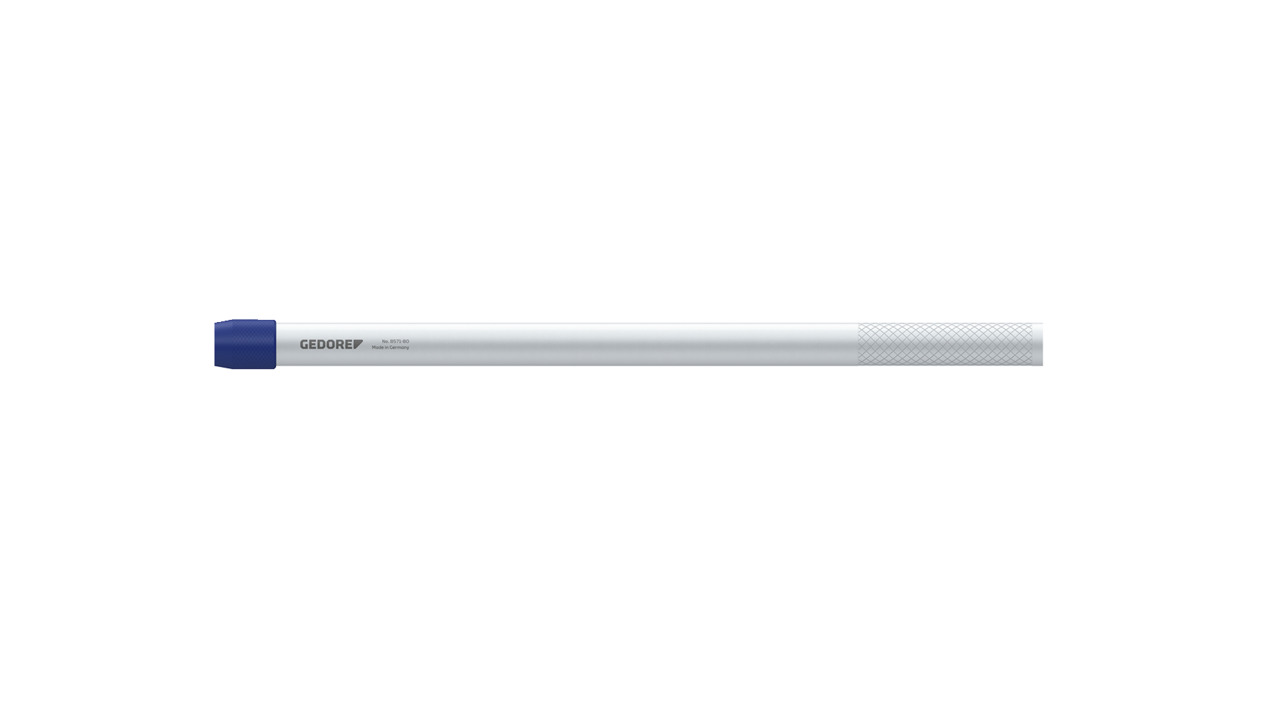

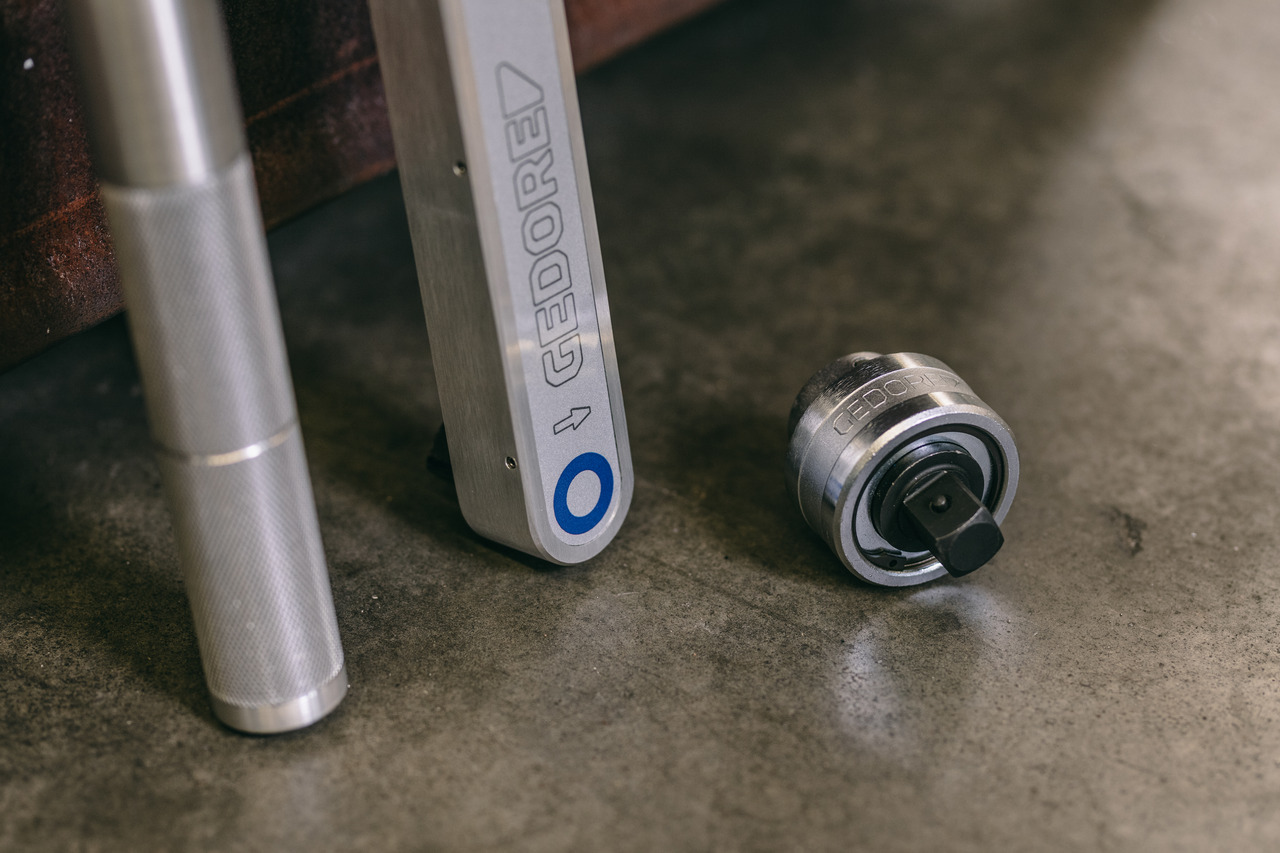

  • Torque wrench in the 155-760 N·m tightening range with test certificate; with extension tube

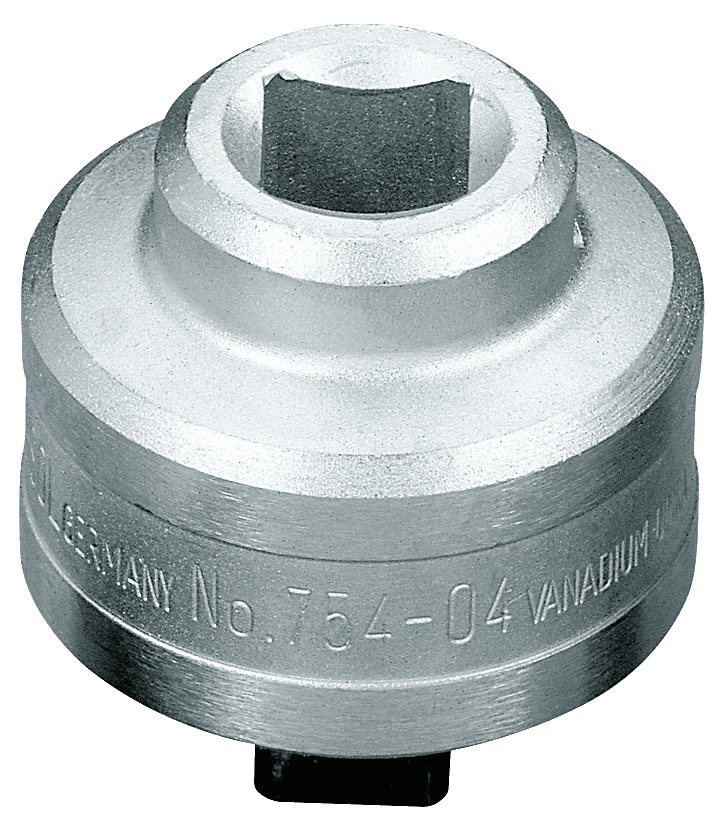

  • Controlled clockwise tightening; 3/4” output drive; plus clockwise rotating 3/4” add-on ratchet
  • Classified as per DIN EN ISO 6789-2:2017; adjusted to a maximum permissible +/-3% deviation and thus with a greater precision than the standard-stipulated +/-4%

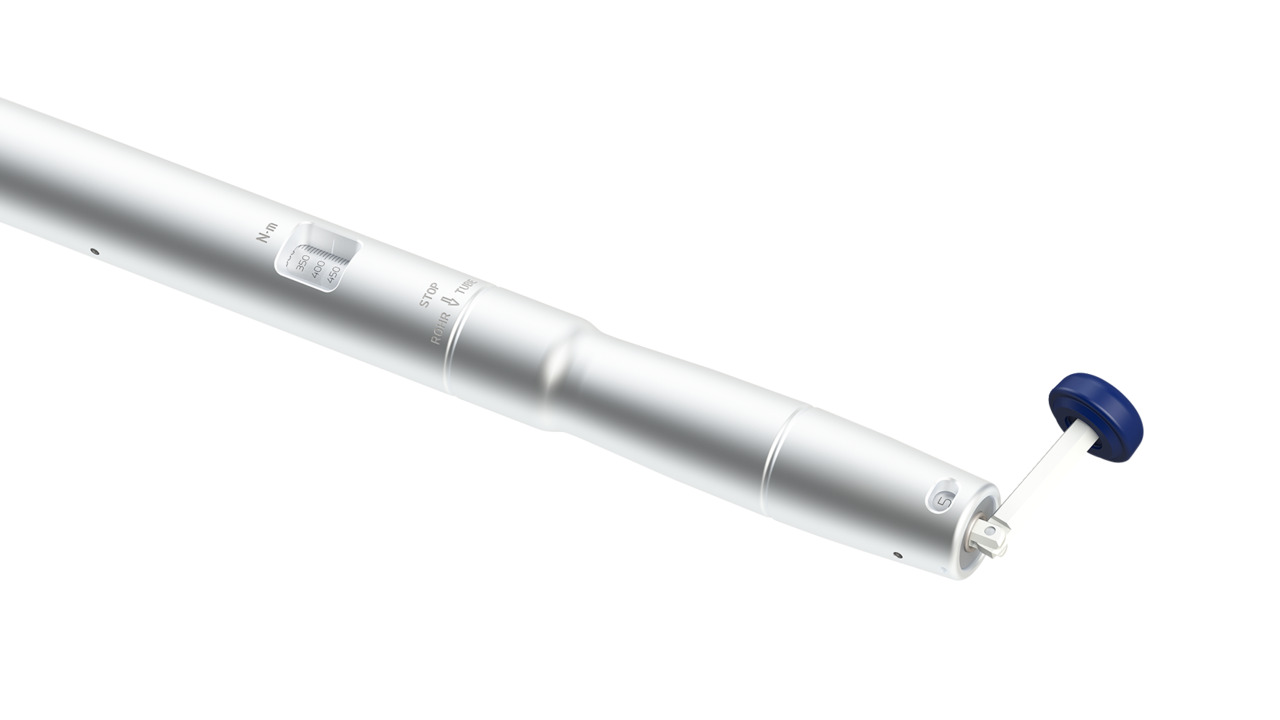

  • Vernier scale - resolution 1.0 N·m
  • Made in Germany

Information

  • Net weight [g]: 3005 g

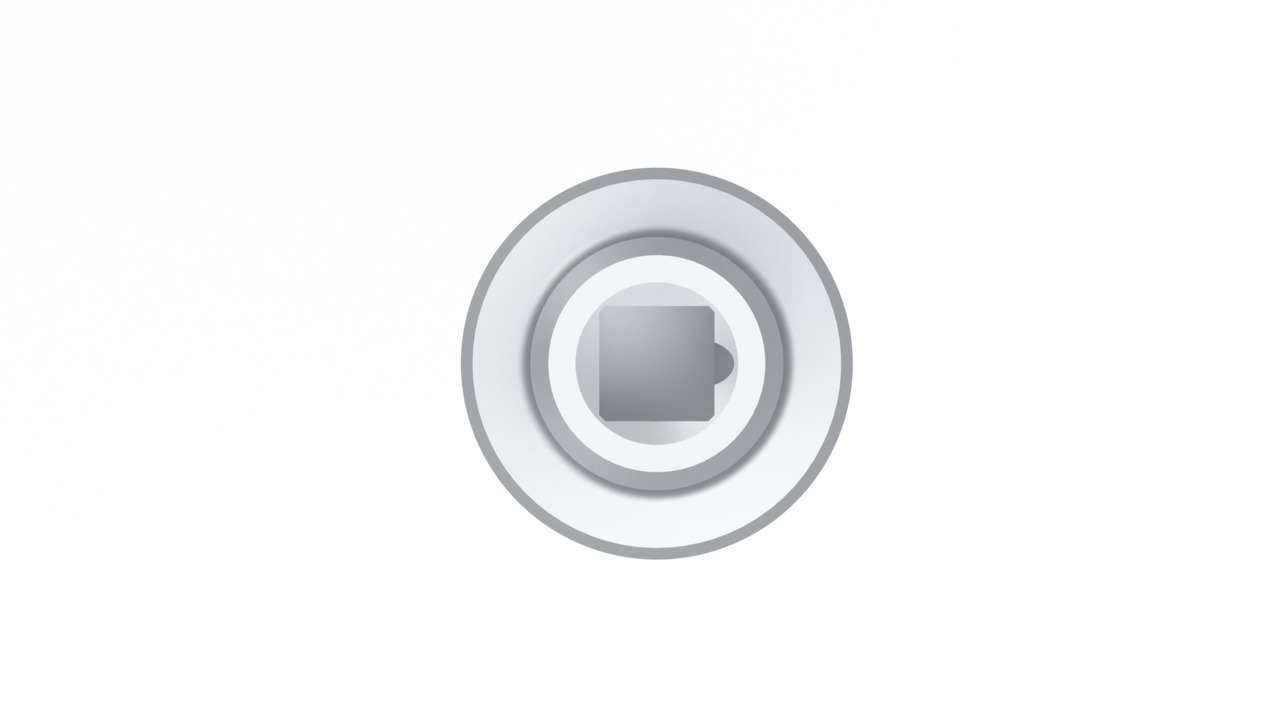

  • Drive connector square male: 3/4"
  • Contents (Qty of pieces): 1 tlg.
  • Total length [mm]: 812 mm
  • Torque (min.) [N·m]: 155 N·m
  • Torque (max.) [N·m]: 760 N·m
  • Total width [mm]: 45 mm
  • Total height [mm]: 35 mm
  • Drive connector square male: 40 mm
  • Graduation: 10
  • housing to square drive: 22,5 mm
  • Drive type/drive: Single square
  • vernier Nm: 1 N·m
  • REACH registration available: 0
  • Net weight [kg]: 3,005 kg
  • Precision +/-: +/- 3 %
  • Tightening direction: Right
  • Fixed setting: 0
  • Test certificate: DIN EN ISO 6789-2:2017
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
