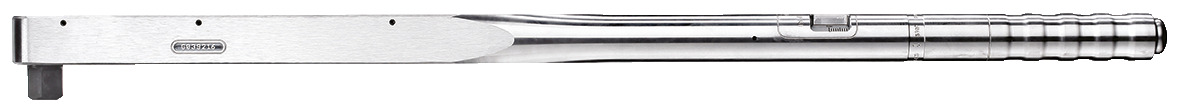

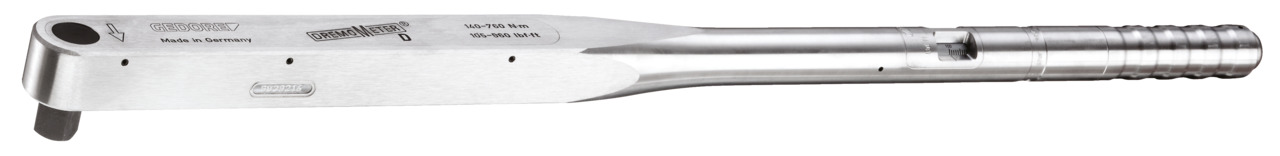

8563 D — 8568 DL Torque wrench DREMOMETER

Order Code: 4569

Specifications

About this product

  • Socket:
  • Controlled screw tightening in the range of 155 - 760 Nm / 115 - 560 lbf·ft
  • For use in almost all industrial manufacturing areas
  • Features:
  • Classified according to DIN EN ISO 6789-2:2017 Type II Class A, incl. traceable test certificate, calibrated to a maximum permissible deviation of +/- 3 % and thus more precise than the +/- 4 % required by the standard

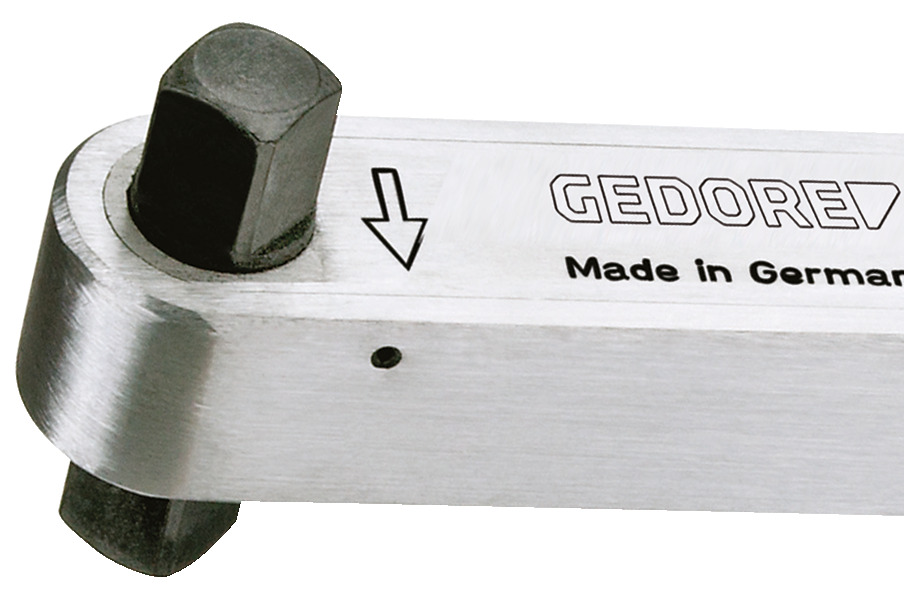

  • 3/4" square drive with pin-locking mechanism DIN 3120 - B 20, ISO 1174
  • Automatic short-path actuation with tactile impulse and audible signal
  • Double scale with a scale division of 10 Nm and 10 lbf ft
  • Technical advantage/Function:
  • Lightweight yet robust (as the housing is made of an aluminium alloy) and resilient, very workshop-friendly
  • No inaccuracies whether used with both hands or held away from the handle (as for standard torque wrenches). Both the square drive and fulcrum are on an axis which ensures a high degree of user safety; can be extended to reduce the user's working load.
  • Extremely low wear attributable to reduced forces in a lever mechanism
  • Forged lever chain from our group own quality forge
  • Maximum precision even when subjected to extreme continuous use
  • Long life cycles and tool lives
  • Easy operation - fast and safe torque tightening
  • Easy adjustment thanks to attractive adjusting button secured against loss at the end of the handle
  • Single- and double-square drive for controlled bi-directional tightening

Information

  • Net weight [g]:3200 g
  • Drive square inch:3/4"
  • Contents (Qty of pieces):1
  • Total length [mm]:812 mm
  • Torque (min.) [Nm]:155 Nm
  • Torque (max.) [Nm]:760 Nm
  • Torque (min.) [lbf·ft]:115 lbf·ft
  • Torque (max.) [lbf·ft]:560 lbf·ft
  • Torque range (min./max.) [Nm]:155 Nm-760 Nm
  • Torque range (min./max.):115 lbf·ft-560 lbf·ft
  • Total width [mm]:45 mm
  • Total height [mm]:60 mm
  • Material:Aluminum alloy
  • Drive connector square [metric]:20 mm
  • Graduation:10
  • Head height 1 [mm]:35 mm
  • Width of head 1 [mm]:45,0 mm
  • housing to square drive:22,5 mm
  • Drive type/drive:Single square rigid
  • Torque wrench type:D
  • Standard:DIN 3120 - B 20 ISO 1174
  • REACH:compliant
  • Calibration length:719 mm
  • Net weight [kg]:3,2 kg
  • Graduation [lbf·ft]:10 lbf·ft
  • Trigger mechanism:Short path triggering
  • Precision +/-:+/- 3 %
  • Tightening direction:Right
  • Fixed setting:0
  • Test certificate:DIN EN ISO 6789-2:2017
  • Target groups:Automotive Industry Construction and commercial vehicles Military Energy Mechanical engineering Workshop Utilities Service Agriculture Oil & Gas
  • Range of application:Assembly Series assembly Production Maintenance and repair
