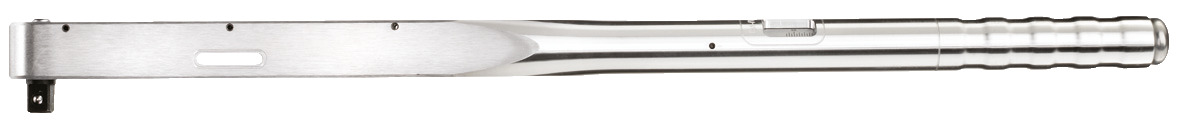

8562 C — 8567 CL Torque wrench DREMOMETER

Order Code: 4562

Specifications

About this product

  • Socket:
  • Controlled screw tightening in the range of 60 - 300 Nm / 45 - 220 lbf·ft
  • For use in almost all industrial manufacturing areas
  • Features:
  • Classified according to DIN EN ISO 6789-2:2017 Type II Class A, incl. traceable test certificate, calibrated to a maximum permissible deviation of +/- 3 % and thus more precise than the +/- 4 % required by the standard
  • 1/2" square drive with ball locking device as per DIN 3120 - A 12.5, ISO 1174
  • Automatic short-path actuation with tactile impulse and audible signal
  • Dual scale with a scale graduation of 5 Nm and 5 lbf·ft
  • With push button release
  • Technical advantage/Function:
  • Lightweight yet robust (as the housing is made of an aluminium alloy) and resilient, very workshop-friendly
  • No inaccuracies whether used with both hands or held away from the handle (as for standard torque wrenches)

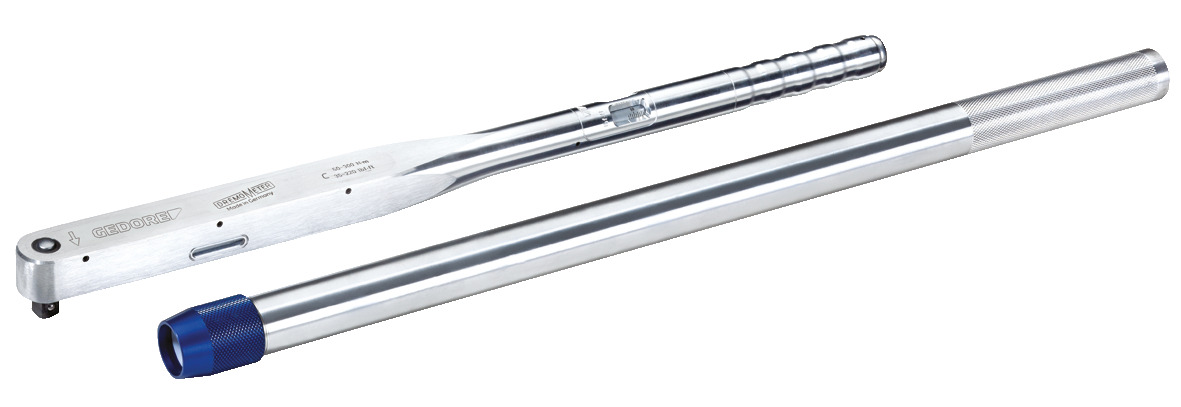

  • Both the square drive and fulcrum are on an axis which ensures a high degree of user safety; can be extended to reduce the user's working load.
  • Extremely low wear attributable to reduced forces in a lever mechanism
  • Forged lever chain from our group own quality forge
  • Maximum precision even when subjected to extreme continuous use
  • Long life cycles and tool lives
  • Easy operation - fast and safe torque tightening
  • Easy adjustment thanks to attractive adjusting button secured against loss at the end of the handle

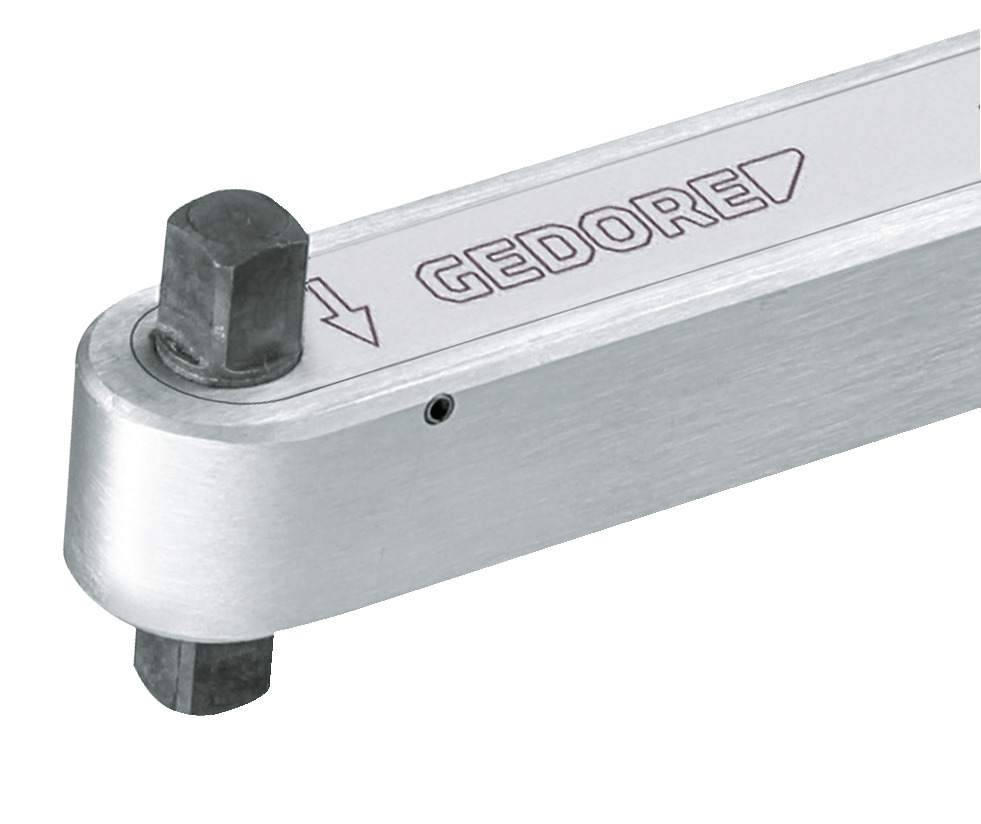

  • Single- and double-square drive for controlled bi-directional tightening

Information

  • Drive square inch:1/2"
  • Contents (Qty of pieces):1
  • Total length [mm]:617 mm
  • Torque (min.) [Nm]:60 Nm
  • Torque (max.) [Nm]:300 Nm
  • Torque (min.) [lbf·ft]:45 lbf·ft
  • Torque (max.) [lbf·ft]:220 lbf·ft
  • Torque range (min./max.) [Nm]:60 Nm-300 Nm
  • Torque range (min./max.):45 lbf·ft-220 lbf·ft
  • Total width [mm]:35 mm
  • Total height [mm]:48 mm
  • Material:Aluminum alloy
  • Drive connector square [metric]:12,5 mm
  • Graduation:5
  • Head height 1 [mm]:30 mm
  • Width of head 1 [mm]:35,0 mm
  • housing to square drive:17,5 mm
  • Drive type/drive:Single square rigid
  • Torque wrench type:C
  • Standard:DIN 3120 - B 20 ISO 1174
  • REACH:compliant
  • Calibration length:529 mm
  • Graduation [lbf·ft]:5 lbf·ft
  • Trigger mechanism:Short path triggering
  • Precision +/-:+/- 3 %
  • Tightening direction:Right
  • Fixed setting:0
  • Test certificate:DIN EN ISO 6789-2:2017
  • Scale division [Nm]:5 Nm
  • Target groups:Automotive Industry Construction and commercial vehicles Military Energy Mechanical engineering Workshop Utilities Service Agriculture Oil & Gas
  • Range of application:Assembly Series assembly Production Maintenance and repair
