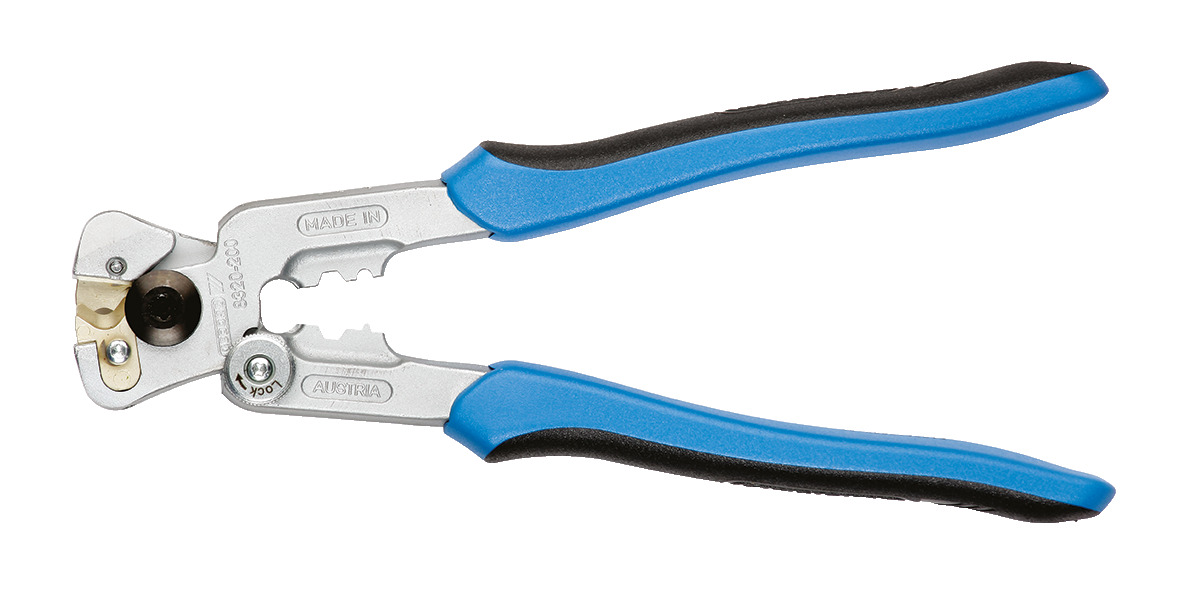

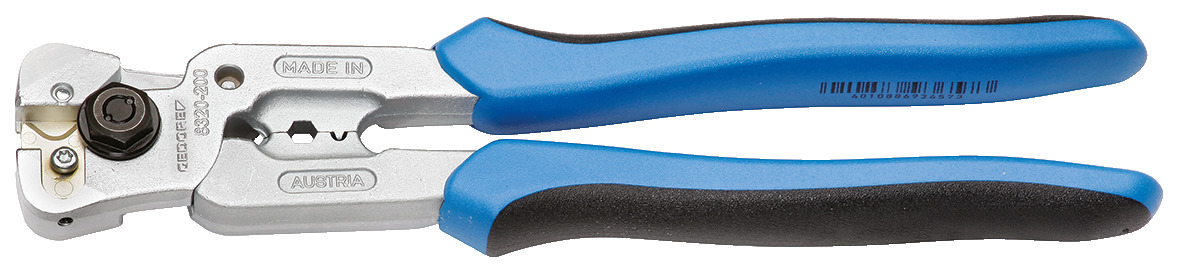

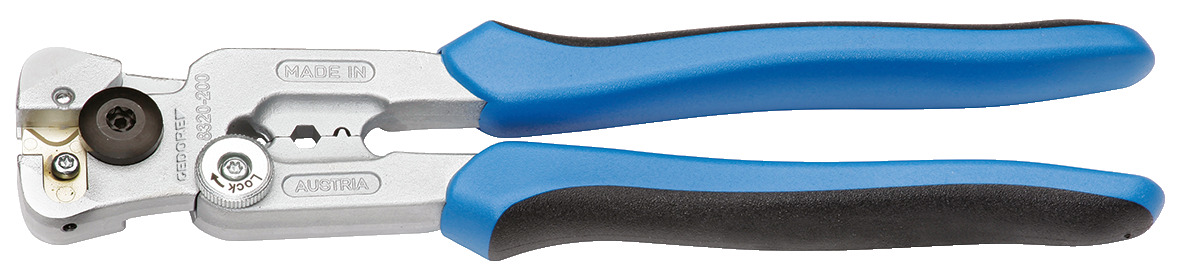

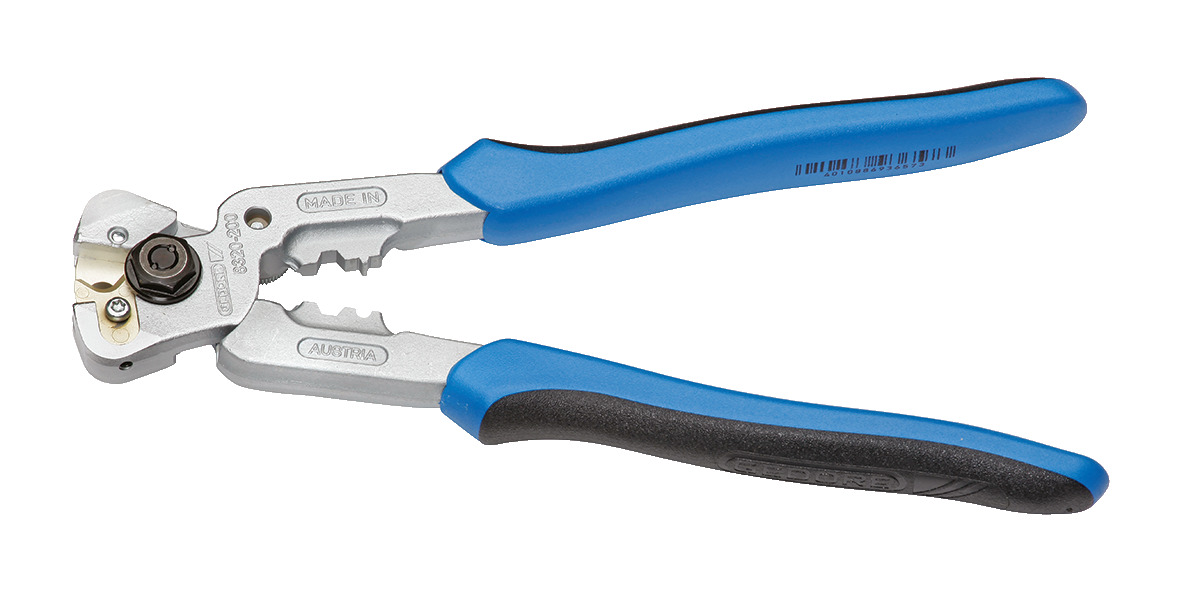

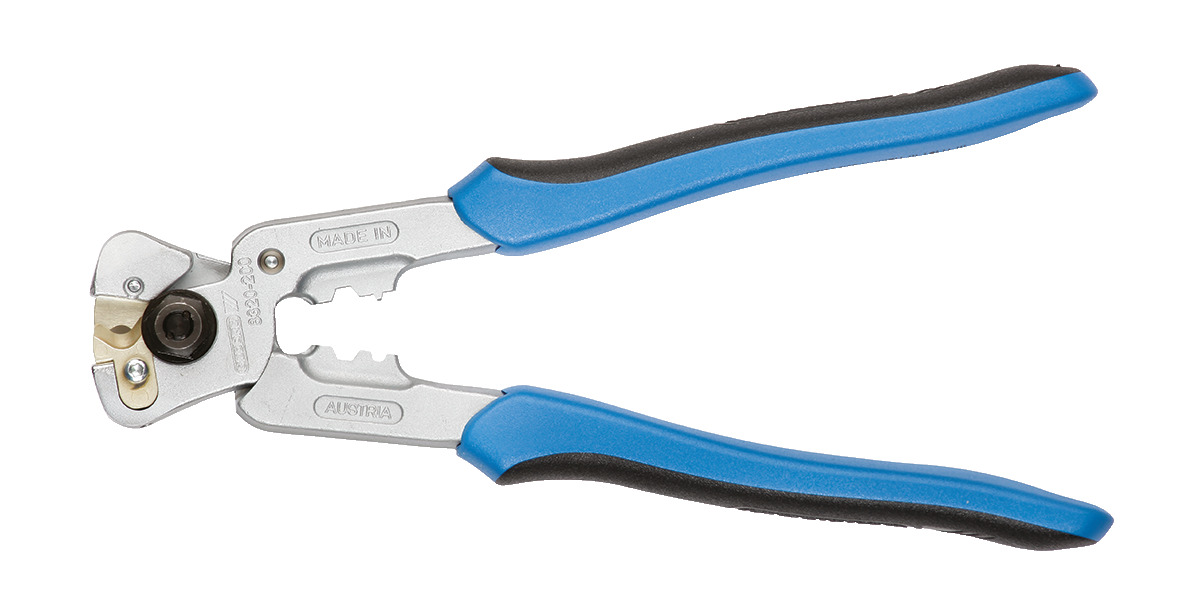

8320 JC Wire rope cutter
Specification
About this product
- Features:
- Easy-to-change cutting plates
- Cutting plates of powder metallurgical high-speed steel (HSS). Manufactured in the MIM process (Metal Injection Molding)
- Extremely high durability compared to traditional wire rope cutters
- Extremely soft shearing cut reliably prevents the wire rope from fanning out
- Jaws/Cutting edges:
- Bake/cut:
- Specially arched cutting edges
- Easy to replace cutting plates if worn
- Hardness 62 - 65 HRC
- Low effort required due to optimum cutting geometry
- 2 integrated press profiles for Bowden cable end caps and Bowden cable sheath end caps
- Cutting performance:
- Wire ropes up to 1800 N/mm² with max. 6 mm Ø (e.g. stainless steel wire ropes, wire ropes with steel and textile cables, Bowden cables, shrouds)
- Wire up to 750 N/mm² with max. 4 mm Ø (e.g. nails/wire pins, screws, bolts, ceiling hangers)
- Single and multicore copper and aluminium cables with max. 10 mm Ø
- Joint:
- Adjustable joint for precise cutting plate guidance
- Latch to prevent unwanted opening
- thighs/handles:
- Version JC = with 2-component handles
- Material/Finish:
- Plier body hot drop-forged
- Chrome-plated
Information
- Contents (Qty of pieces): 1 tlg.
- REACH registration available: 0
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
