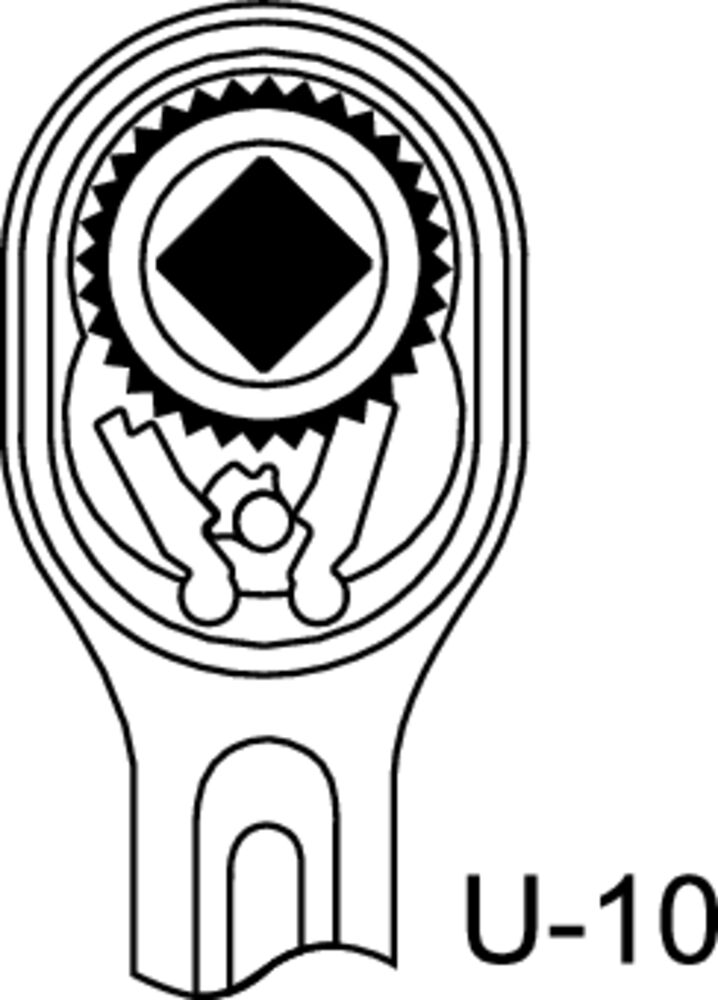

2193 U‑10 Reversible ratchet 1″

Order Code: 5640

Specification

About this product

  • Particularly suitable for robust use in industry and commercial vehicles
  • Acc. to DIN 3122, ISO 3315
  • With recessed lever change, locks in middle position
  • Return angle 11.25°
  • With push-fit bar handle No. 2187 G
  • For hand-operated sockets and accessories with square drive as per DIN 3120 - D 25, ISO 1174 with locking pin
  • Gedore vanadium steel 31CrV3, chrome-plated

Information

  • Net weight [g]: 5210 g
  • Drive connector square male: 1"
  • Contents (Qty of pieces): 1 tlg.
  • Total length [mm]: 810 mm
  • Material: Chrome-vanadium steel 31CrV3
  • Drive connector square male: 25 mm
  • Return angle: 11,25 °
  • Ratchet head height: 61,5 mm
  • No. of teeth: 32
  • Standard: DIN 3122 ISO 3315
  • REACH registration available: 1
  • Version/Execution: complete
  • Net weight [kg]: 5,21 kg
  • Push-button release: 0
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
