1993 U‑20 Reversible ratchet 1/2″

Order Code: 5632

Specification

About this product

  • Used throughout industry and the automotive world - and as well in confined spaces
  • Acc. to DIN 3122, ISO 3315
  • Small, drop shaped head for confined areas

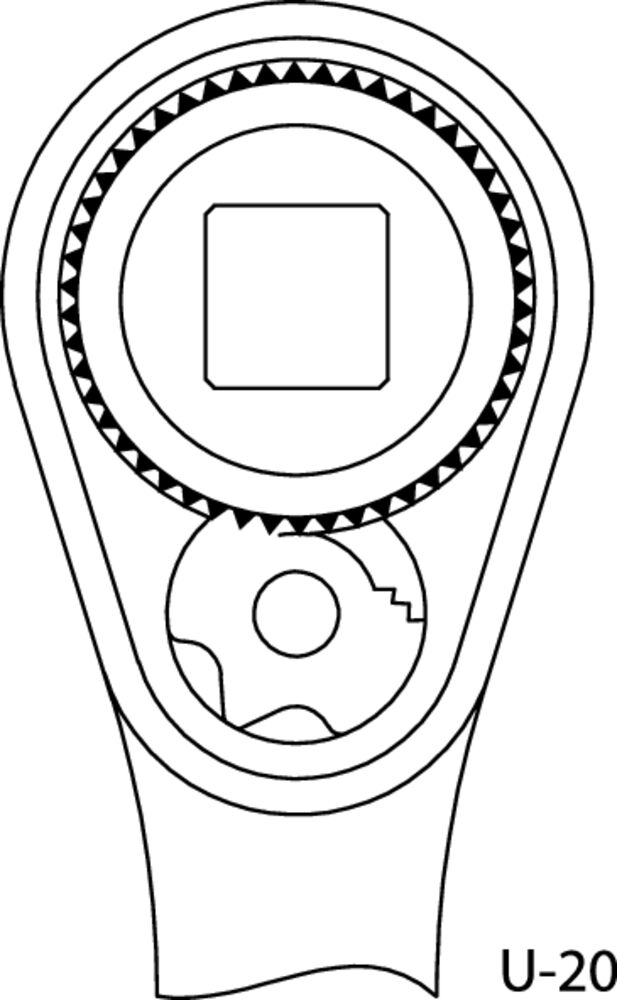

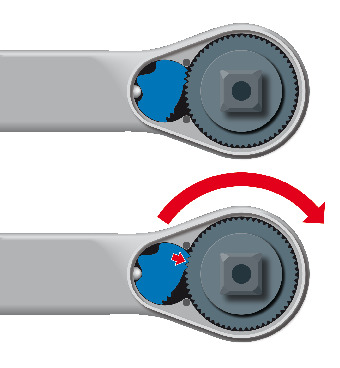

  • Fine-toothed (60 teeth), with lever change and push-button release
  • Return angle 6°
  • Non-slip 2-component handle with hanging hole
  • For hand-operated sockets and accessories with square drive as per DIN 3120 - C 12.5, ISO 1174, ball locking device
  • Gedore vanadium steel 31CrV3, chrome-plated

Information

  • Net weight [g]: 536 g
  • Drive connector square male: 1/2"
  • Contents (Qty of pieces): 1 tlg.
  • Total length [mm]: 270 mm
  • Material: Chrome-vanadium steel 31CrV3
  • Drive connector square male: 12,5 mm
  • Return angle: 6 °
  • Ratchet head height: 37,5 mm
  • No. of teeth: 60
  • Surface: chrome-plated
  • Standard: DIN 3122 ISO 3315
  • REACH registration available: 1
  • Net weight [kg]: 0,536 kg
  • Locking tool type: Ball locking device
  • Push-button release: 1
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
  • :
