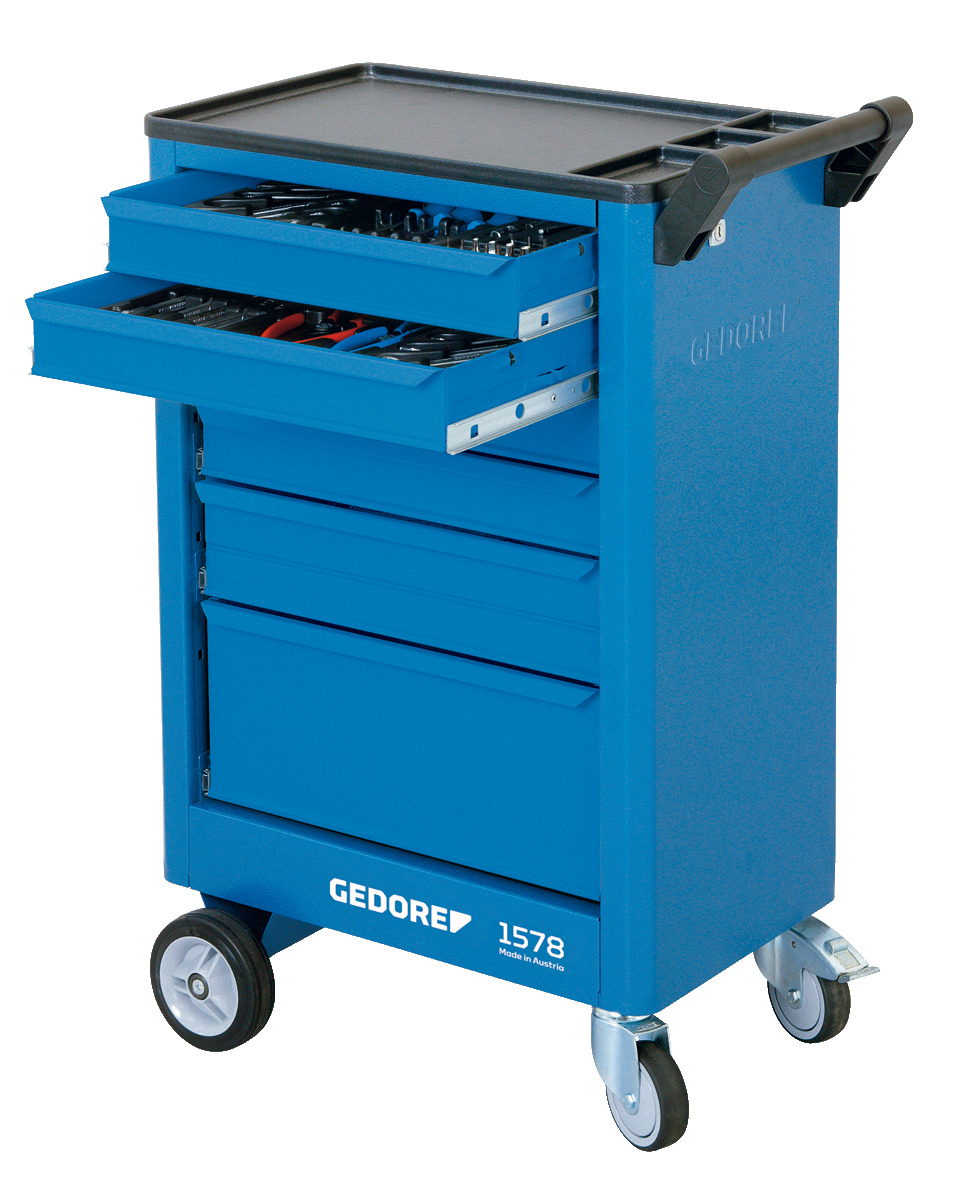

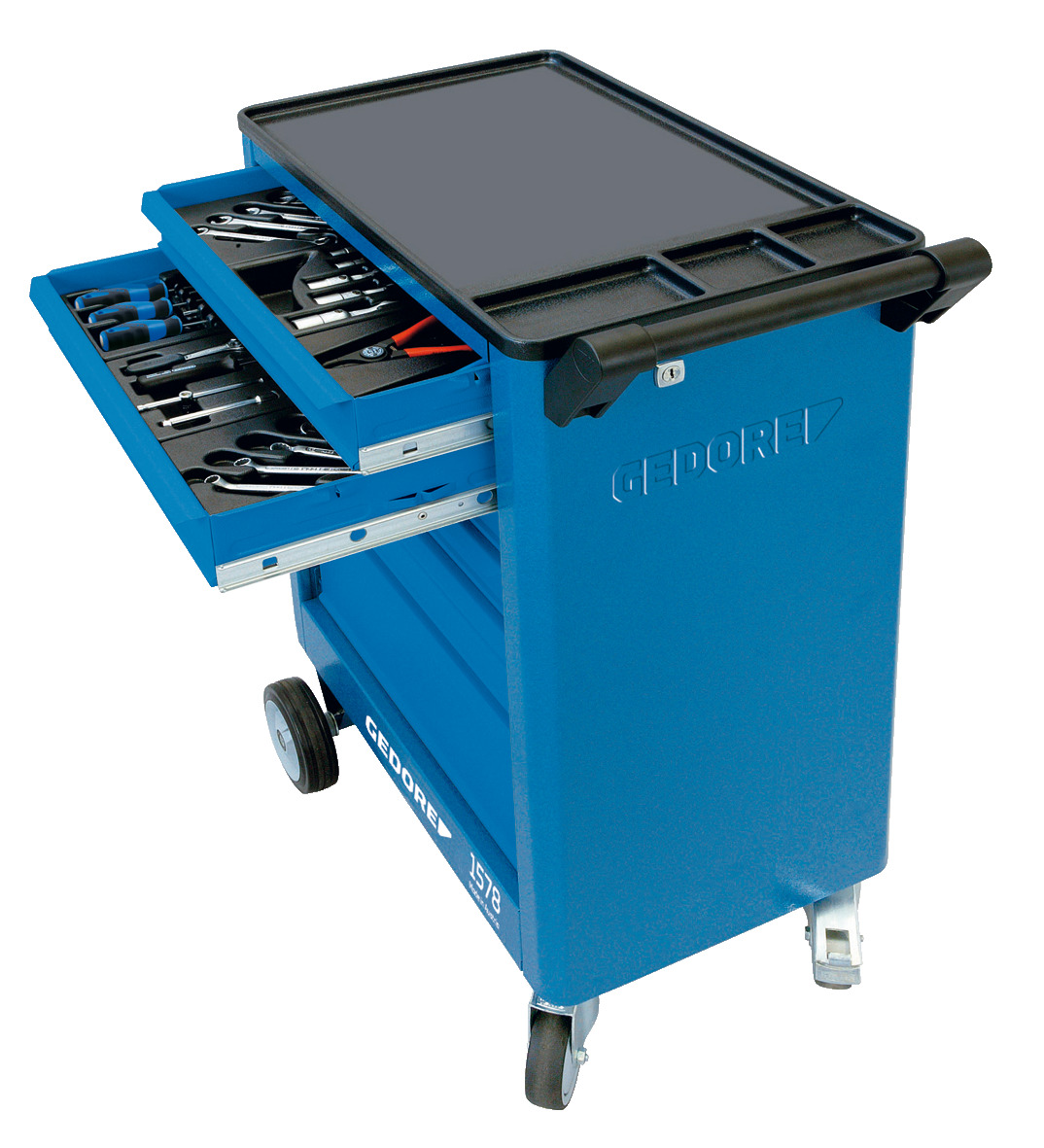

1578 Tool trolley with 6 drawers

• Body:
• Dimensions: H 930 x W 605 x D 375 mm
• Working platform in ABS, with 3 compartments for small parts
• Manoeuvrable and easy to steer with drive/steer handle
• Safety through heel protection for persons
• Sheet steel, corrosion and scratch-resistant, powder-coated, GEDORE blue

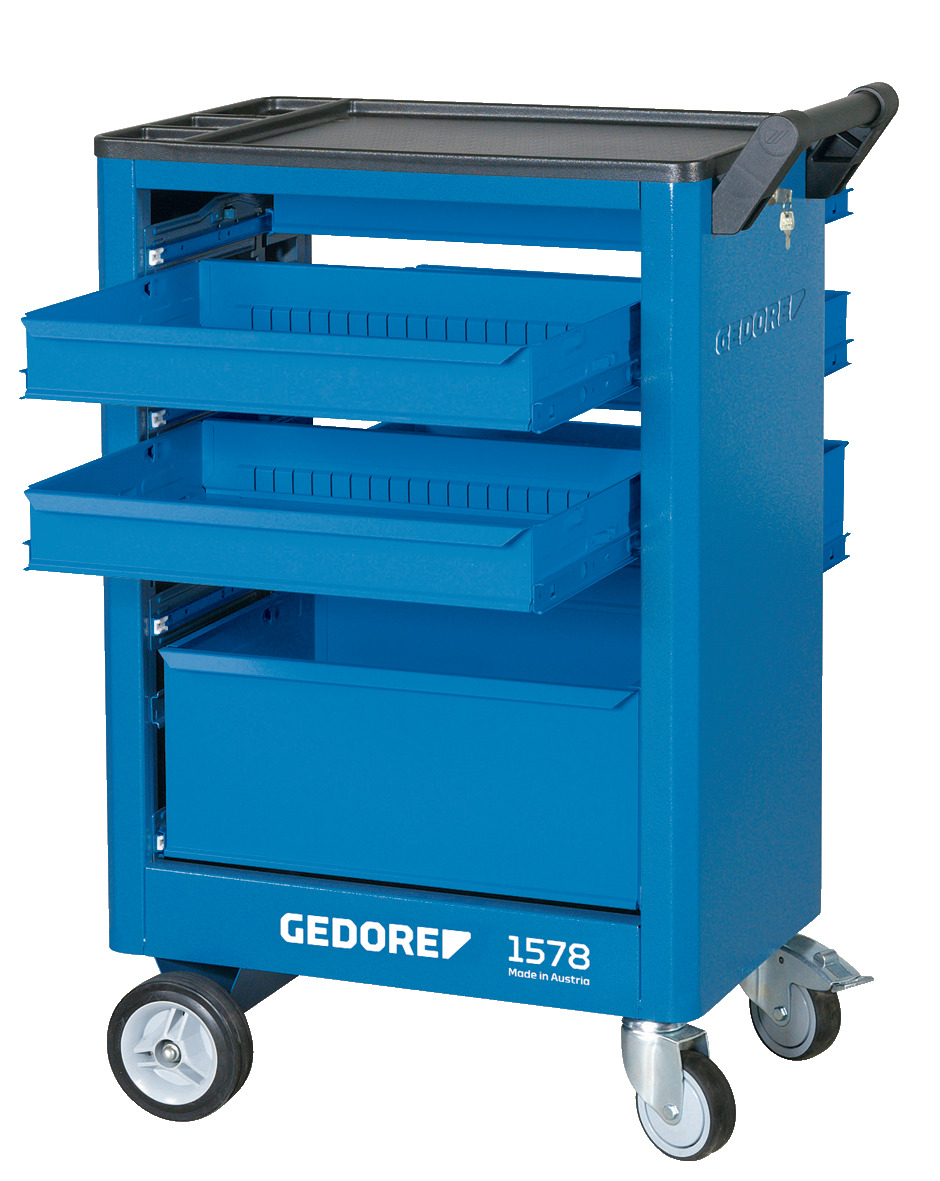

• Drawers:
• Central locking with cylinder clock
• 4 wide drawers (W 480 x D 325 x H 75 mm)
• 1 wide drawer (W 480 x D 325 x H 120 mm)
• 1 wide drawer (W 480 x D 325 x H 210 mm)

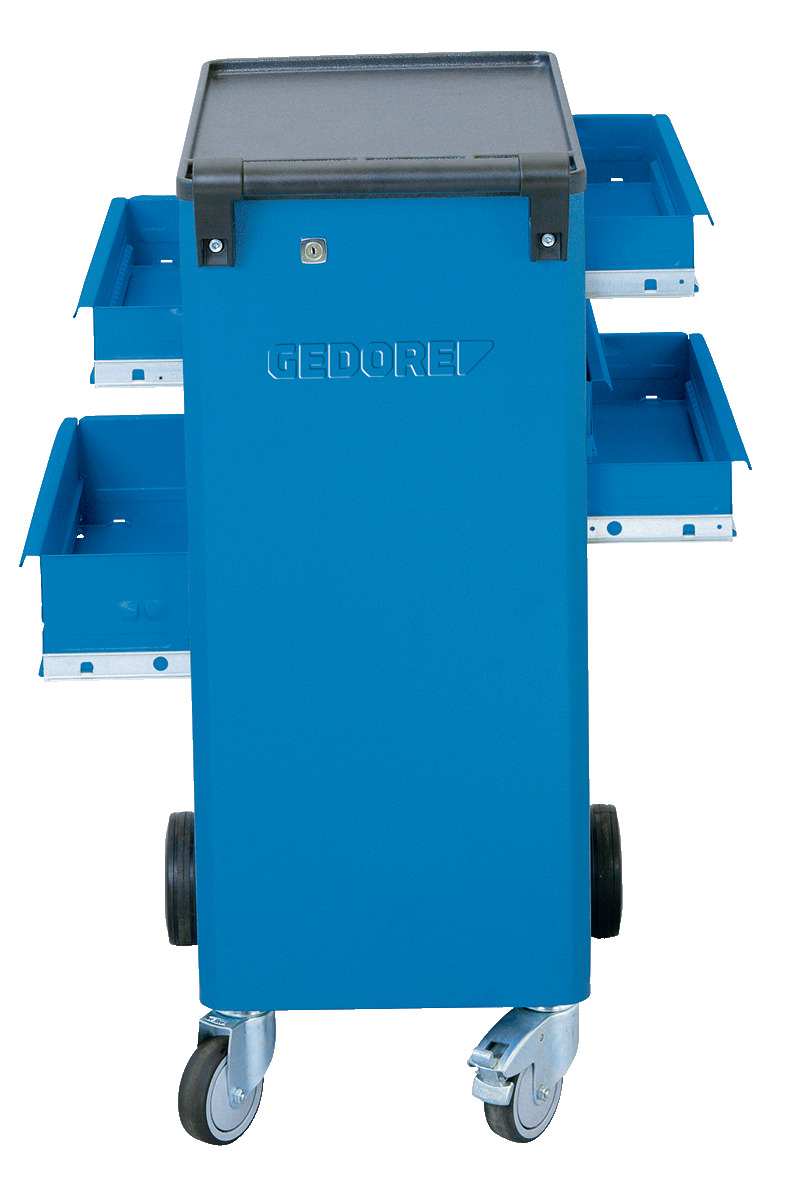

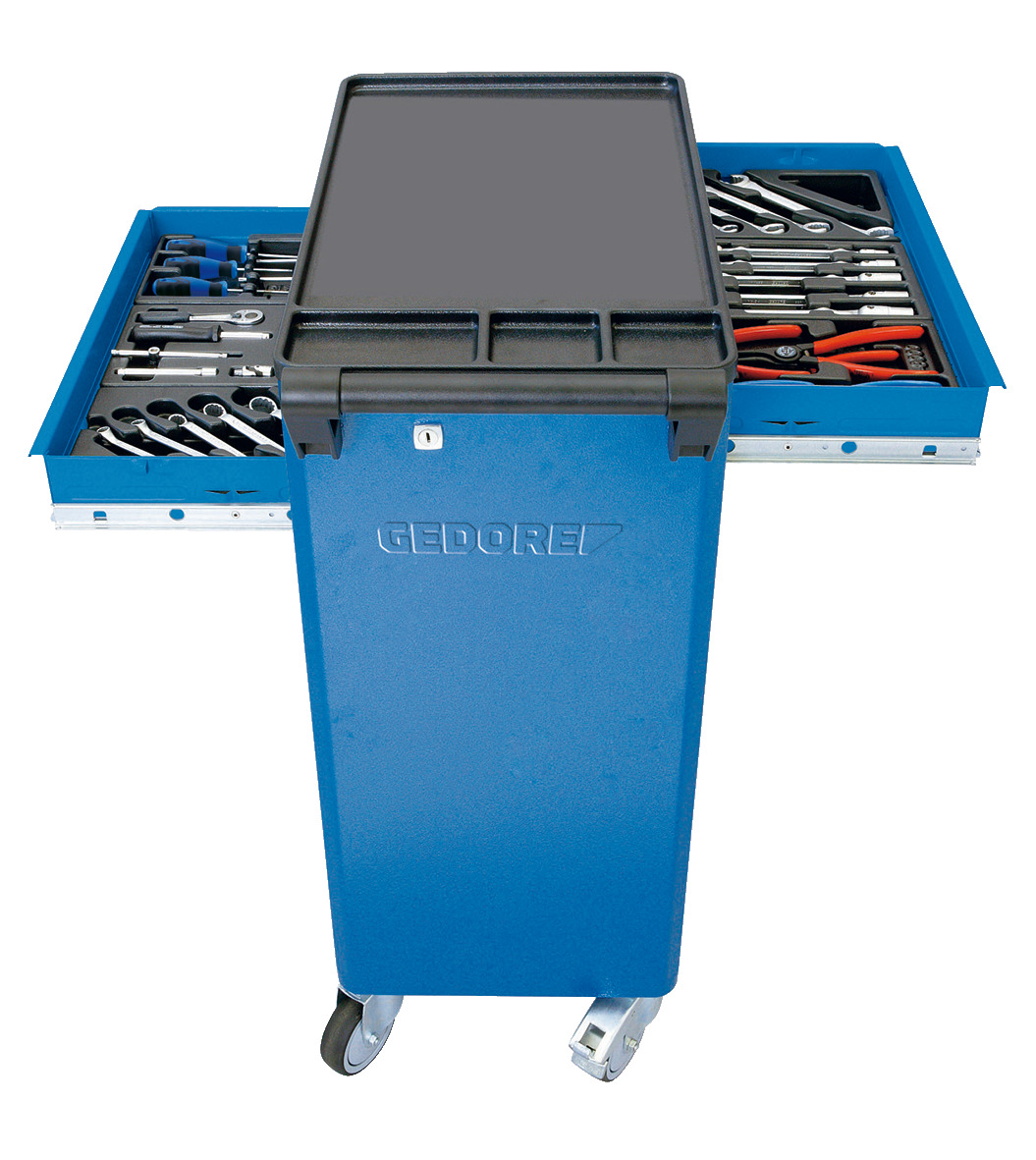

• All drawers extendable on both sides
• Can be individually equipped with lengthwise and crosswise dividers (can be ordered individually)
• Load capacity per drawer 20 kg
• Sheet steel, corrosion and scratch-resistant, powder-coated, GEDORE blue
• GEDORE chassis:
• Total load capacity 200 kg
• 2 high-performance wheels on roller bearings (fixed castors Ø 140 mm)
• 2 GEDORE easy-running wheels with ball bearings (swivel castors, 100 mm), one of them with total brake each
• The GEDORE trapezoidal axle construction secures smooth running, manoeuvrability and track-keeping also in case of maximum loads
• Accessories:
• 6 longitudinal (LT) and 2 transverse dividers (QT) made of galvanised sheet steel
• Options:
• Can be equipped with GEDORE tool modules (1500 ES/1500 CT)
• Special colours and designs on request
• Delivery without tools and accessories

Information

• Net weight [g]:43000 g
• Contents (Qty of pieces):1
• Total length [mm]:375 mm
• Total width [mm]:605 mm
• Total height [mm]:930 mm
• Dimension (L x W x H):930 mm x 605 mm x 375 mm
• Colour:GEDORE blue, RAL 5017
• Material:sheet steel
• No. of crosswise dividers:2
• No. of lengthwise dividers:6
• Drawer type:4x Type 1, H = 75 mm 1x Type 2, H = 120 mm 1x Type 3, H = 210 mm
• No. of drawers:6
• RAL colour tone:blue
• Fixed roller Ø (2x):140
• SwiveL castorØ w brakes (2x):100
• Single pull-out stop:0
• No. of wheels:4
• Working height:930
• Surface:powder-coated
• REACH:compliant
• Static load carrying capa.:200 kg
• Net weight [kg]:43 kg
• Load capacity per drawer:20 kg
