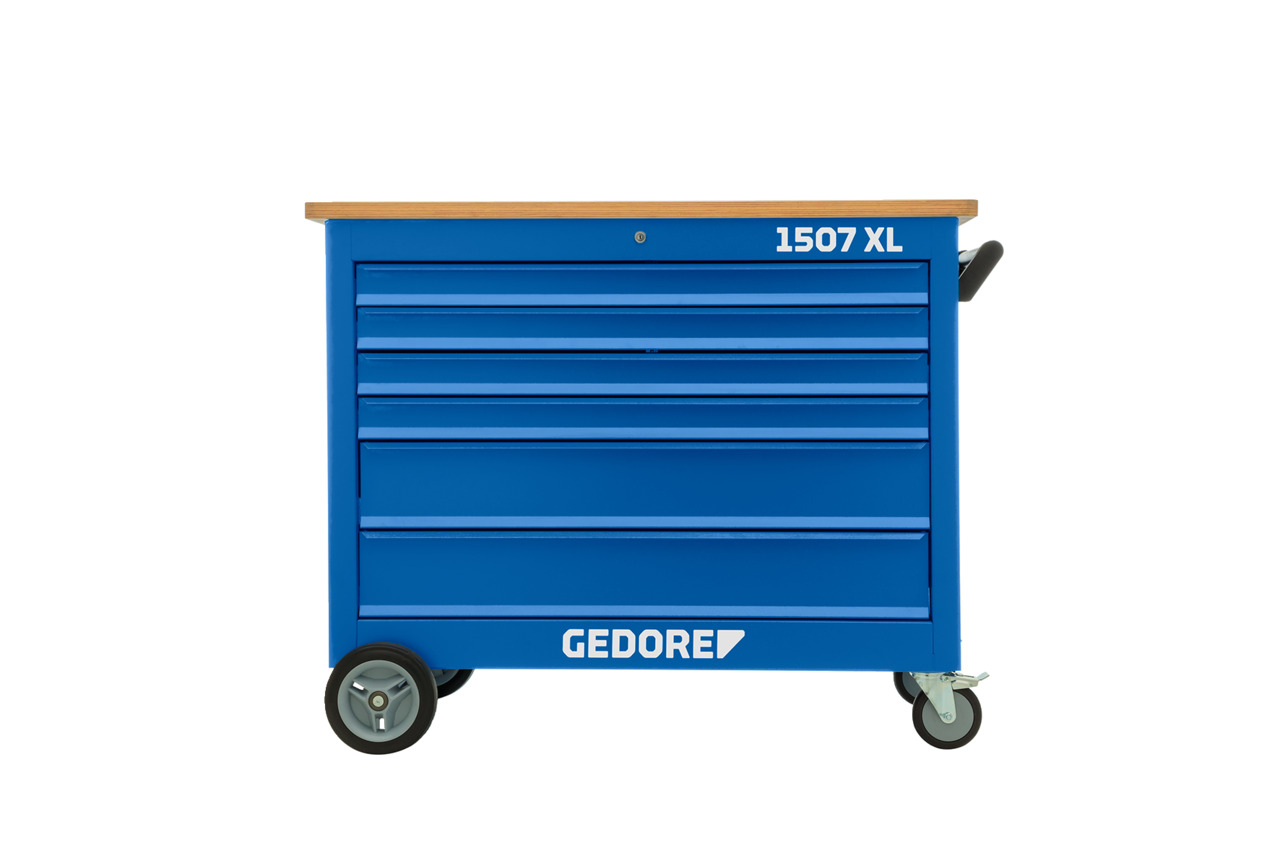

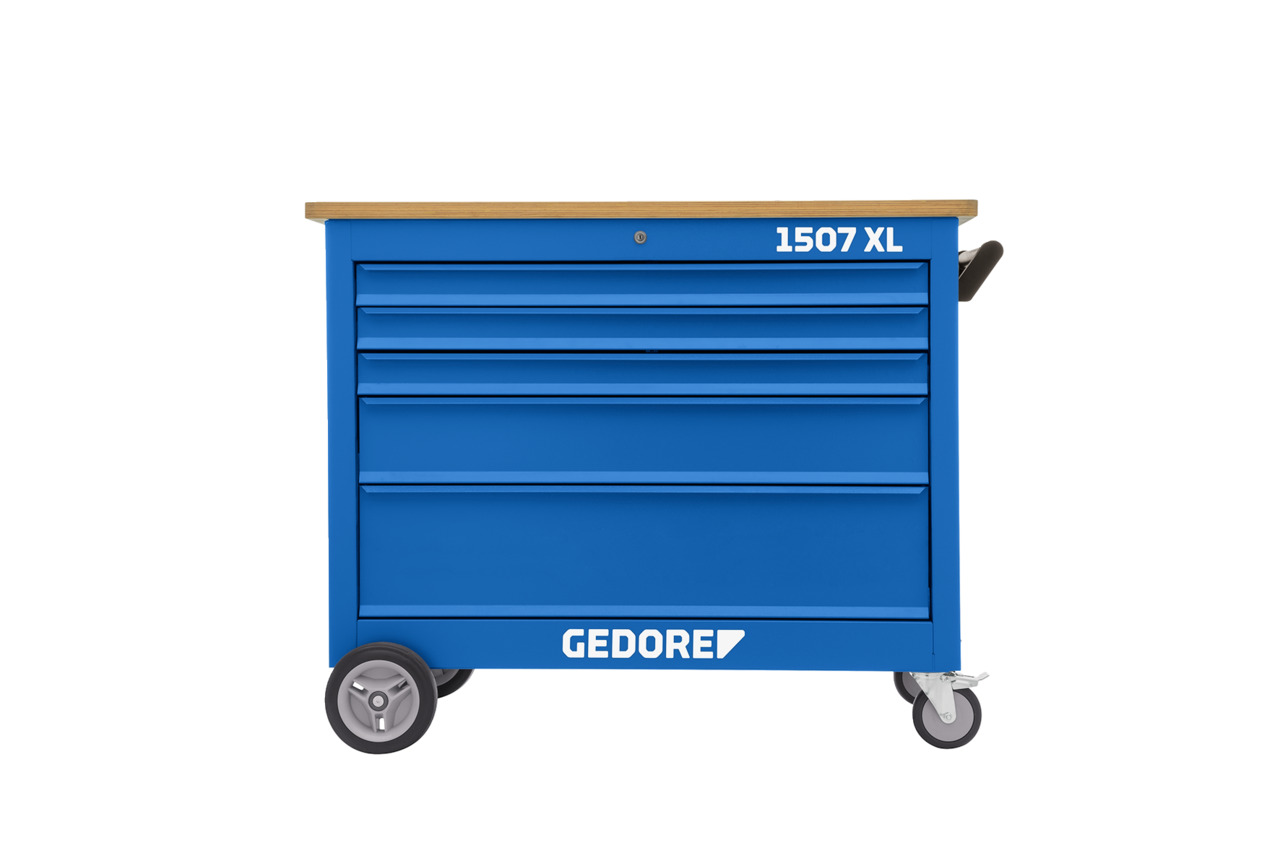

1507 XL Mobile workbench

• Body:
• Dimensions: H 985 x W 1200 x D 625 mm
• 30 mm thick multiplex beech wood worktop, surface additionally protected by linseed oil varnish
• Worktop set back to park flush against the wall
• One drawer unit in trolley width
• With handle for easy pushing, pulling and turning
• Side walls with Euro perforation 10 x 38 mm to fix hooks and tools
• Ready to take up tool holder KL-5501-20 for installation of spring compressor KL-5501
• Safety through heel protection for persons
• Sheet steel, corrosion resistant and scratch-proof powder-coated, Gedore blue
• Drawers:
• Central locking with cylinder lock
• Wide drawers (W 998 x D 474 mm) fully extendable, removable
• Individual drawer stopping stops more than one drawer being opened, one-handed operation
• Ball-bearing guide rails
• Load capacity per drawer 70 kg
• Sheet steel, corrosion resistant and scratch-proof powder-coated, Gedore blue
• Gedore High-performance chassis:
• Total load capacity 1000 kg, 750 kg when mobile
• 2 high-performance wheels on roller bearings (fixed castors Ø 200 mm)
• 2 smooth running wheels on ball bearings (swivel castors Ø 125 mm), both with total brake
• The Gedore trapezoidal axle construction secures smooth running, manoeuvrability and track-keeping also in case of maximum loads
• Options:
• Ideal for equipping with Gedore tool modules (1500 ES/1500 CT) maximum 9 pieces 1/3 modules possible per drawer
• Further drawer combinations on request
• Special colours and designs available on request
• Delivery without tools and accessories

Information

• Contents (Qty of pieces): 1 tlg.
• Total length [mm]: 675 mm
• Total width [mm]: 1.200 mm
• Total height [mm]: 985 mm
• Dimension (L x W x H): 985 mm x 1.200 mm x 675 mm
• Colour: Gedore blue, RAL 5017
• Material: sheet steel
• Drawer type: Type 1, H = 75 mm Type 2, H = 101,5 mm Type 3, H = 155 mm Type 4, H = 208 mm Type 5, H = 235 mm
• Thickness (e.g. workplate): 30 mm
• Load capacity kg: 750 kg
• Worktop dimensions: 1200 x 635 x 30 mm
• Fixed roller Ø (2x): 200
• SwiveL castorØ w brakes (2x): 125
• Single pull-out stop: 1
• No. of wheels: 4
• Working height: 985
• Surface: powder-coated
• REACH registration available: 0
• Static load carrying capa.: 1000 kg
• Load capacity per drawer: 70 kg
• :
• :
• :
• :
• :
• :
• :
• :
• :
• :
• :
• :
• :
• :
• :
• :
• :
• :
• :
• :
