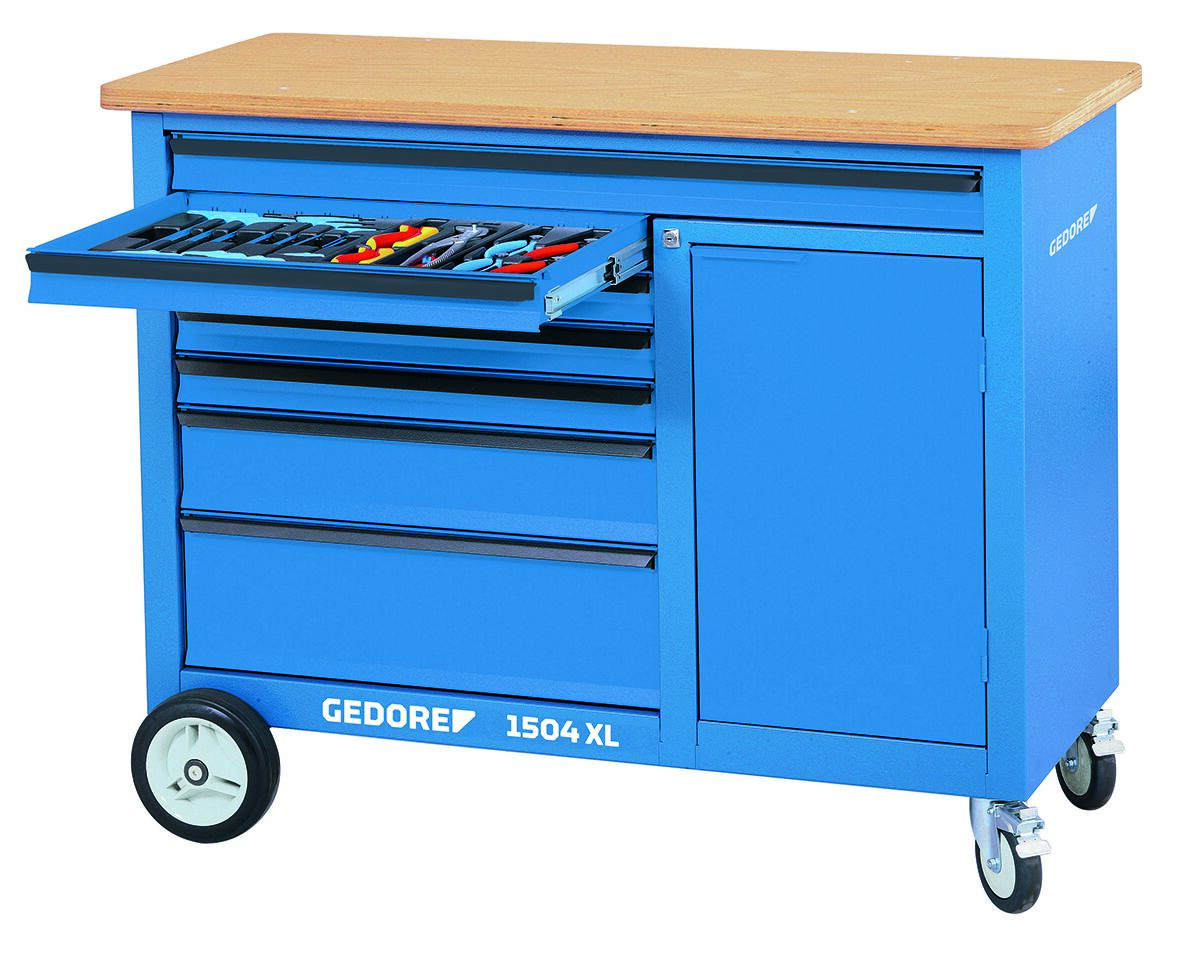

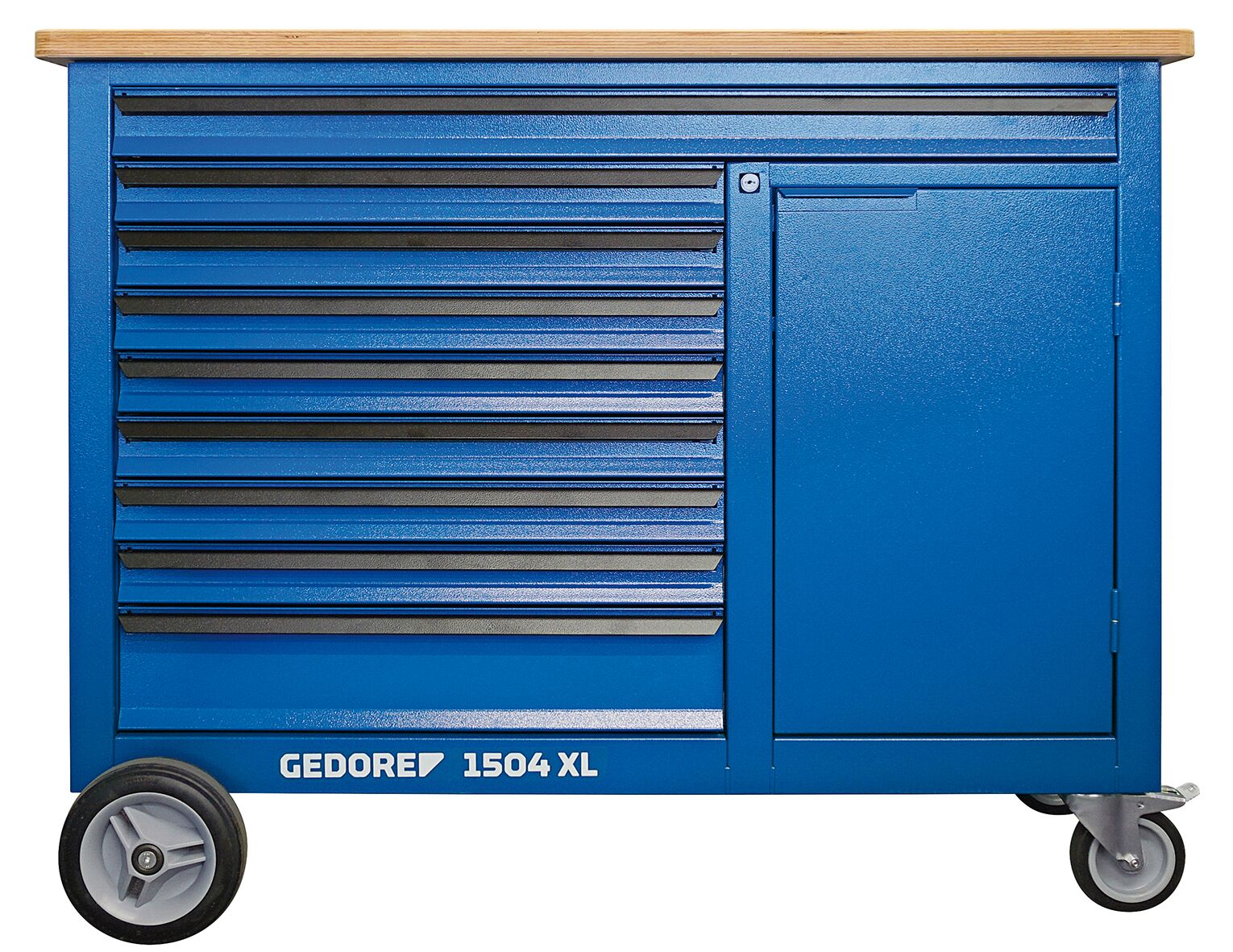

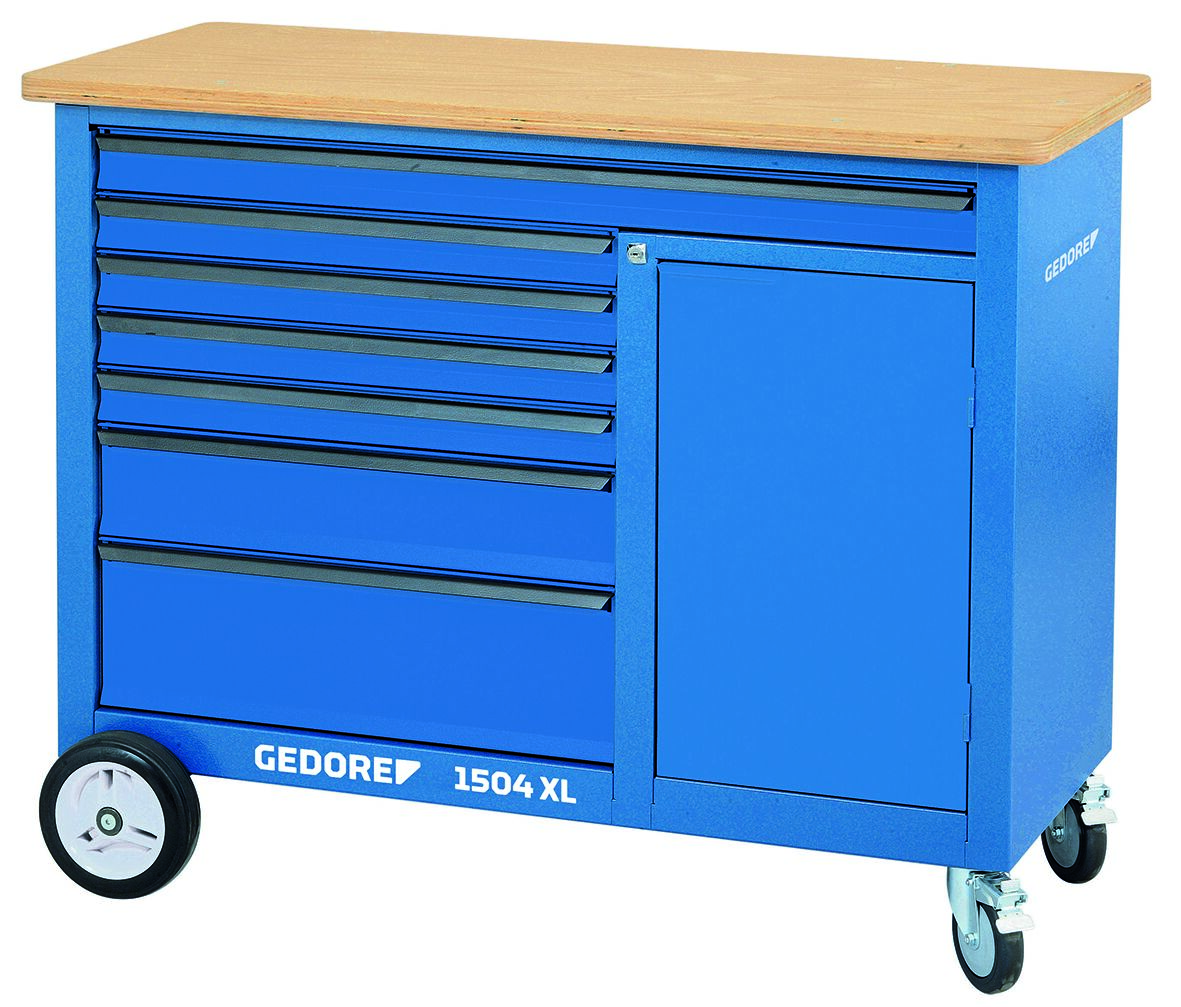

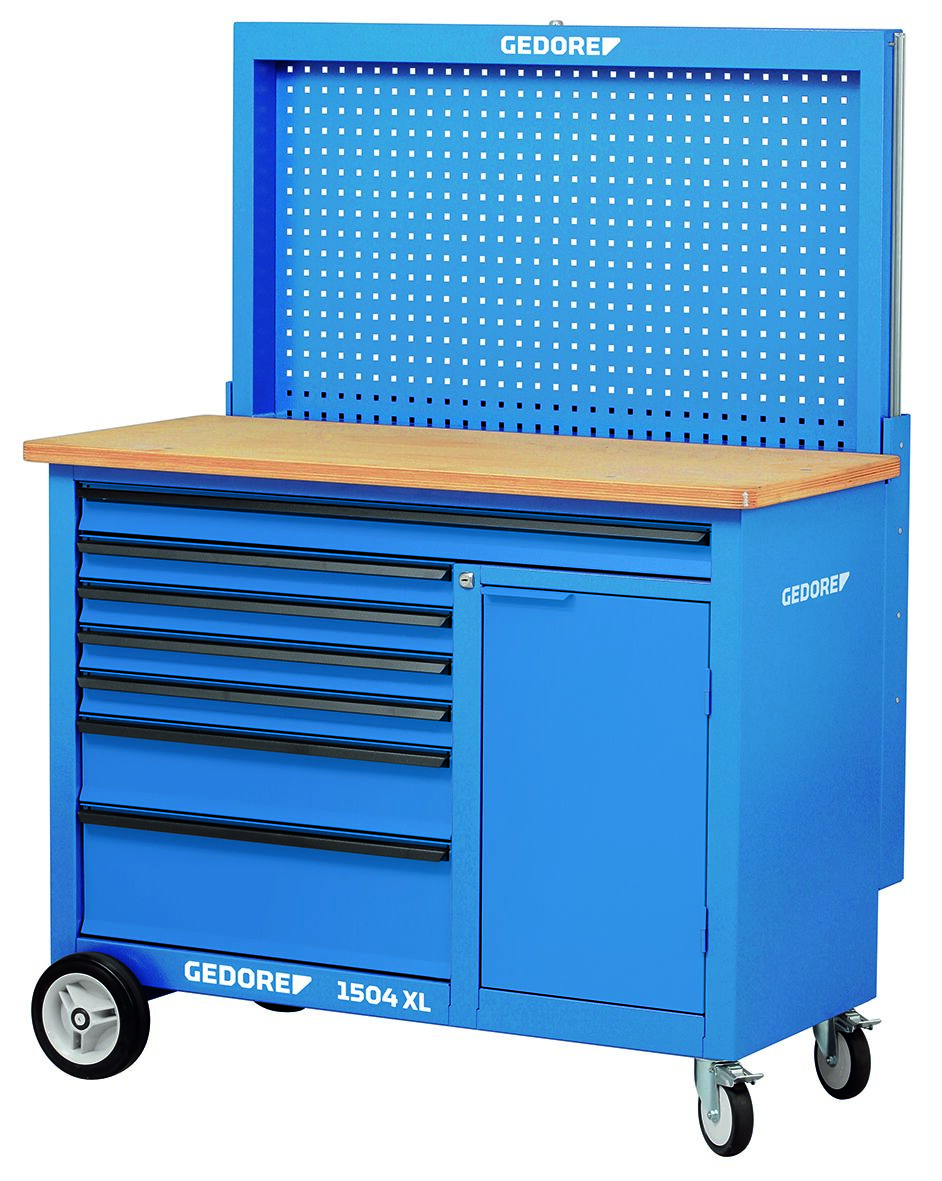

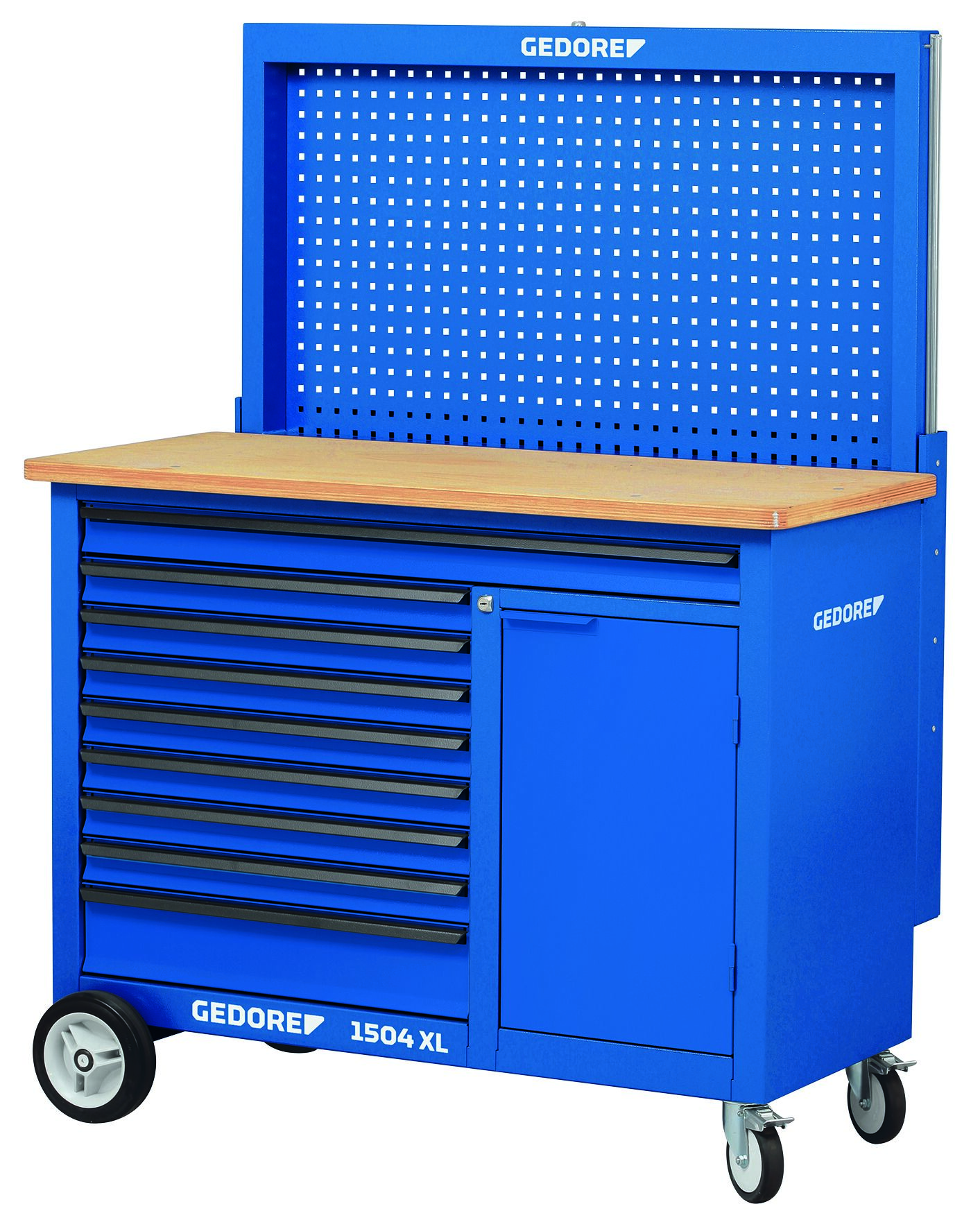

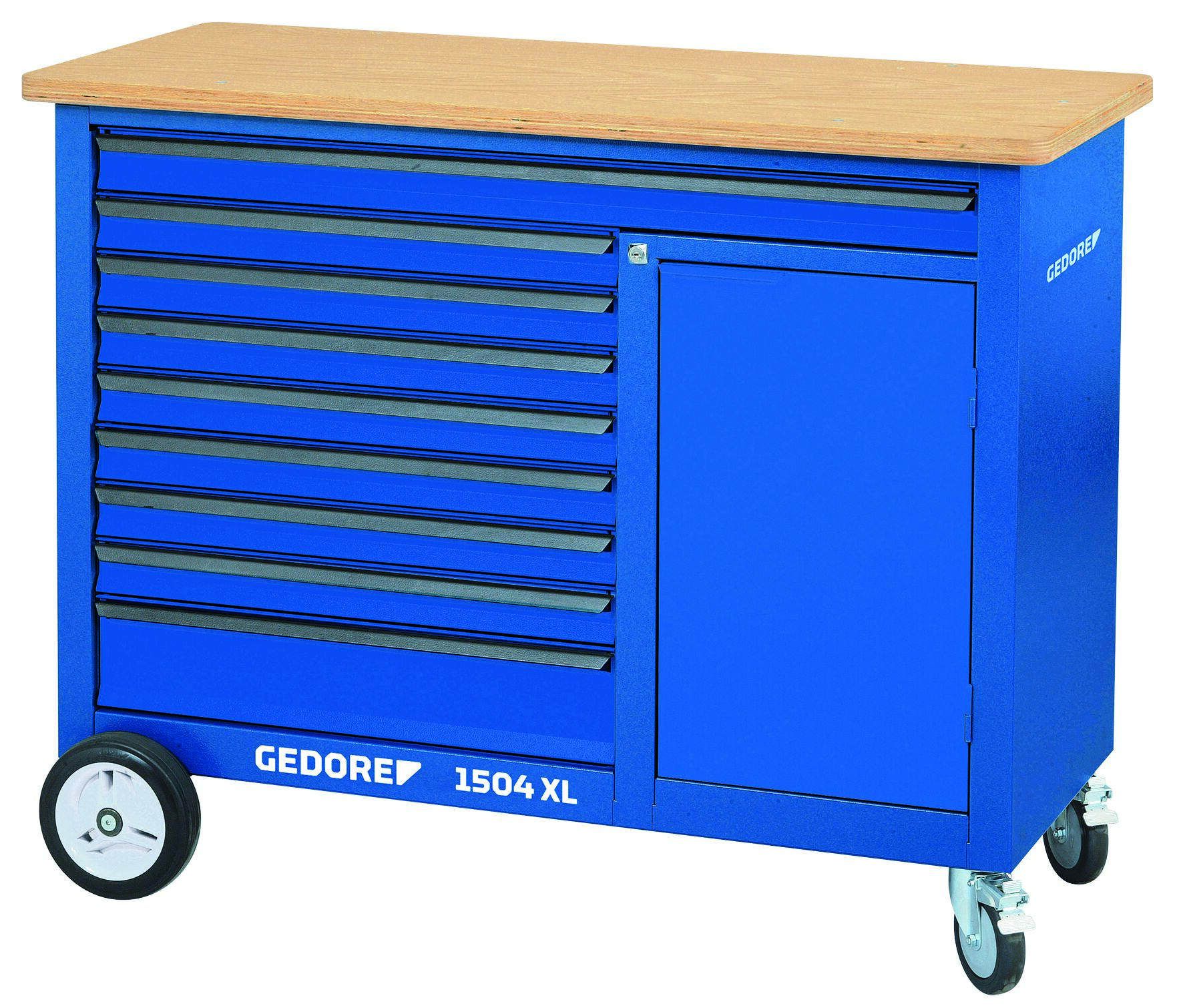

1504 XL Mobile workbench extra wide

In stock

Order Code: 6210

Specifications

Height (cm)98.5
Length (cm)125
Width (cm)63
Dimensions125 × 63 × 98.5 cm
WeightN/A

About this product

  • Body:
  • Sheet steel, corrosion and scratch-resistant, powder-coated, GEDORE blue
  • 30 mm thick multiplex laminated beech wood board, surface additionally protected by linseed oil varnish

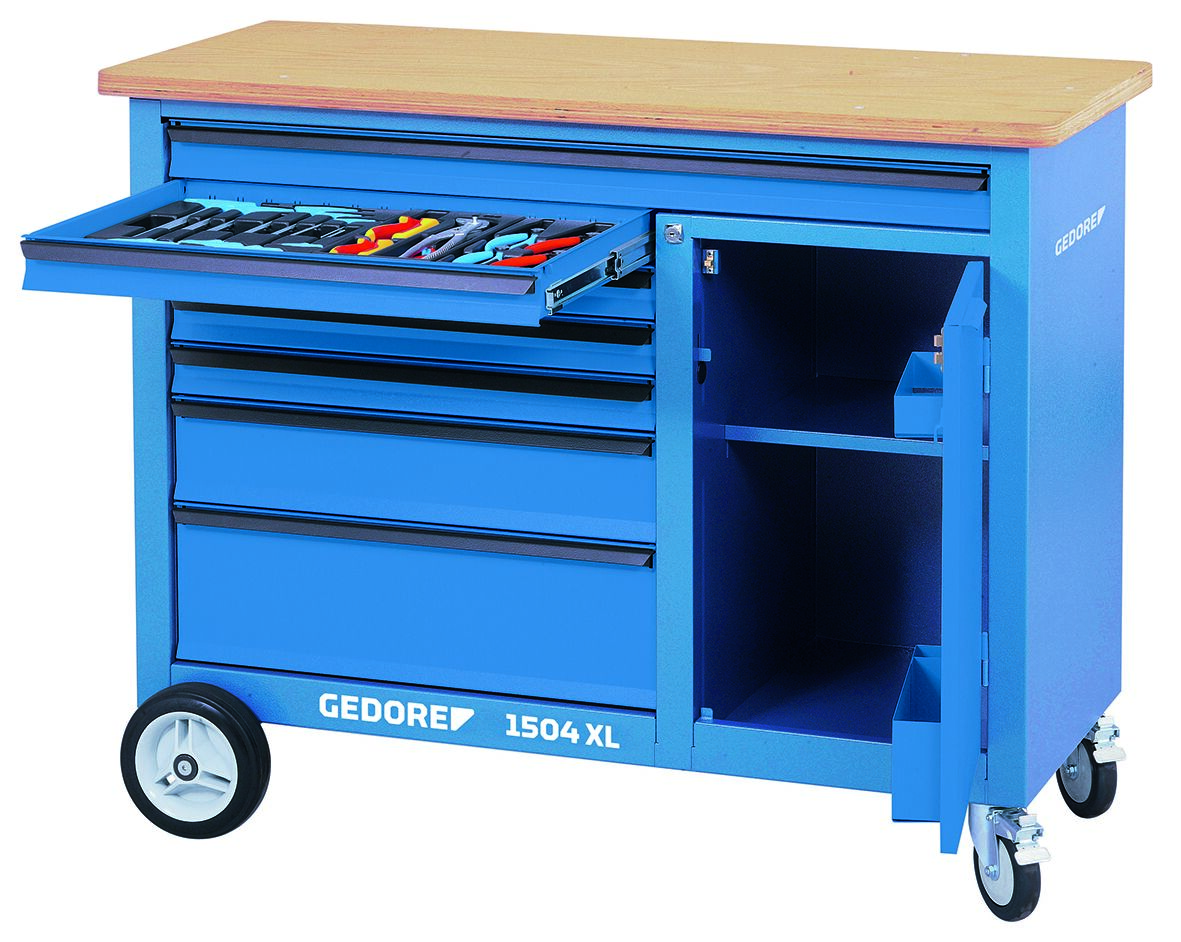

  • Large storage space with lower shelf and door
  • Safety through heel protection for persons
  • Drawers:
  • Central locking with cylinder clock
  • 1 XL drawer (W 1055 x D 400), 6 wide drawers (W 640 x D 400 mm) fully extendable, removable
  • Safety locking per drawer, one-hand operation
  • Guide rails with ball bearings
  • Can be individually equipped with lengthwise and crosswise dividers (can be ordered individually)
  • Load capacity per drawer 40 kg, bottom heavy-duty drawer 60 kg
  • GEDORE high-performance chassis:
  • Total load capacity 1000 kg, in mobile operation 750 kg
  • 2 GEDORE heavy-duty wheels with roller bearings (fixed castors, 200 mm)
  • 2 GEDORE easy-running wheels with ball bearings (swivel castors, 125 mm), both with total brake each
  • The GEDORE trapezoidal axle construction secures smooth running, maneuverability and track-keeping also in case of maximum loads
  • The GEDORE trapezoidal axle construction secures smooth running, manoeuvrability and track-keeping also in case of maximum loads
  • 10 length- (LT) and 2 crosswise (QT) dividers from zinc-plated sheet steel
  • Options:
  • Can be optimally equipped with GEDORE tool modules (No. 1500 ES/1500 CT or 2005 CT)

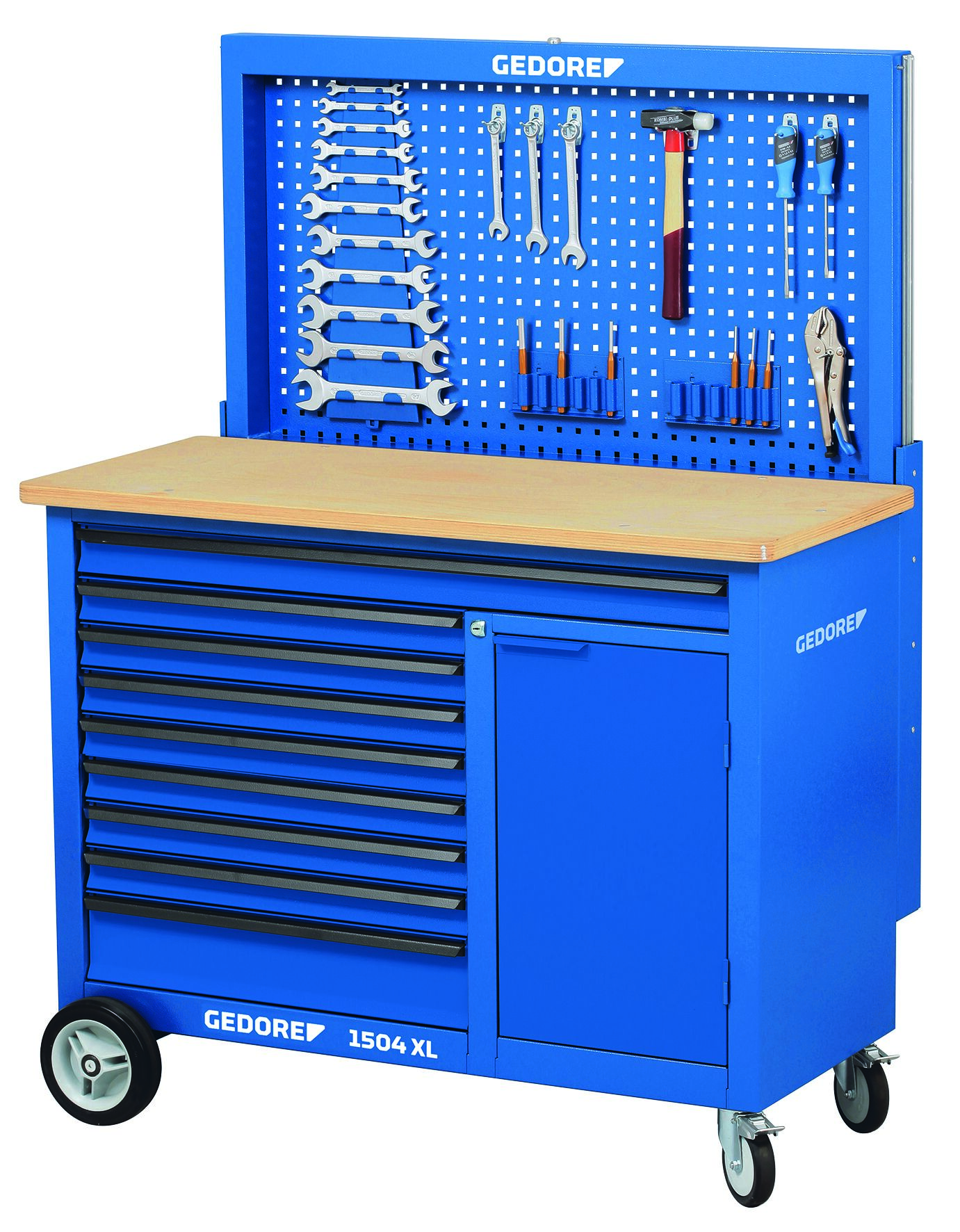

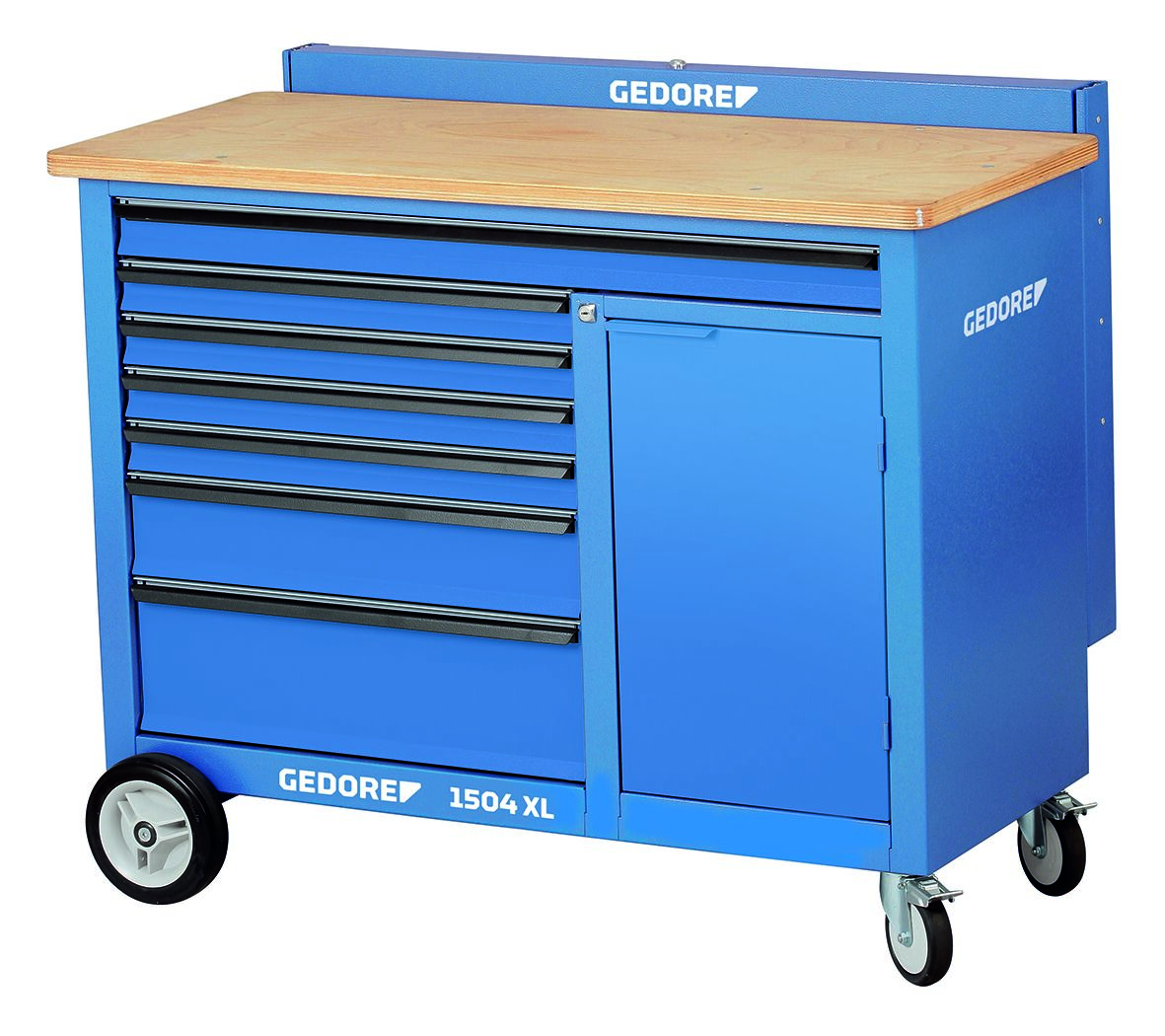

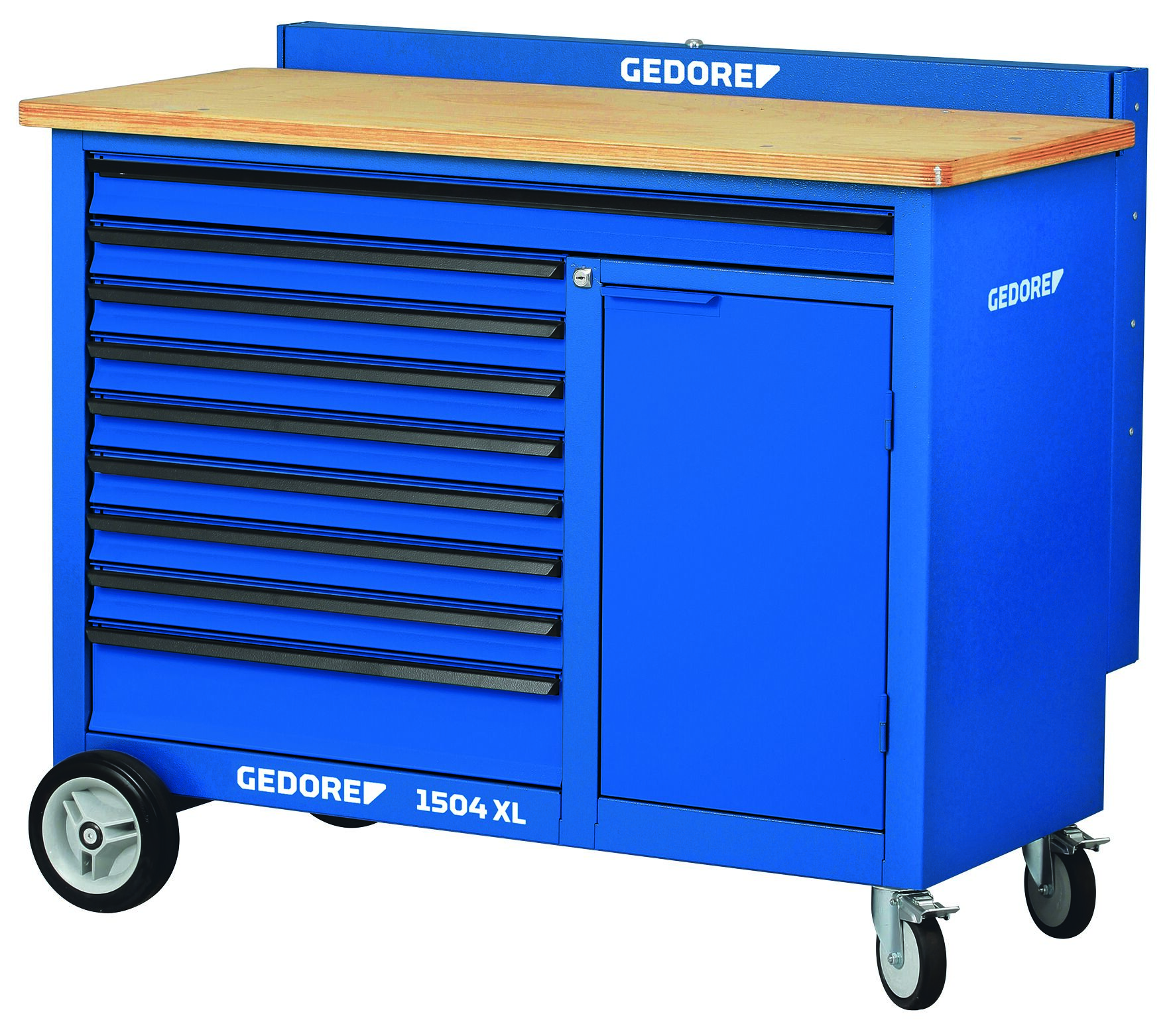

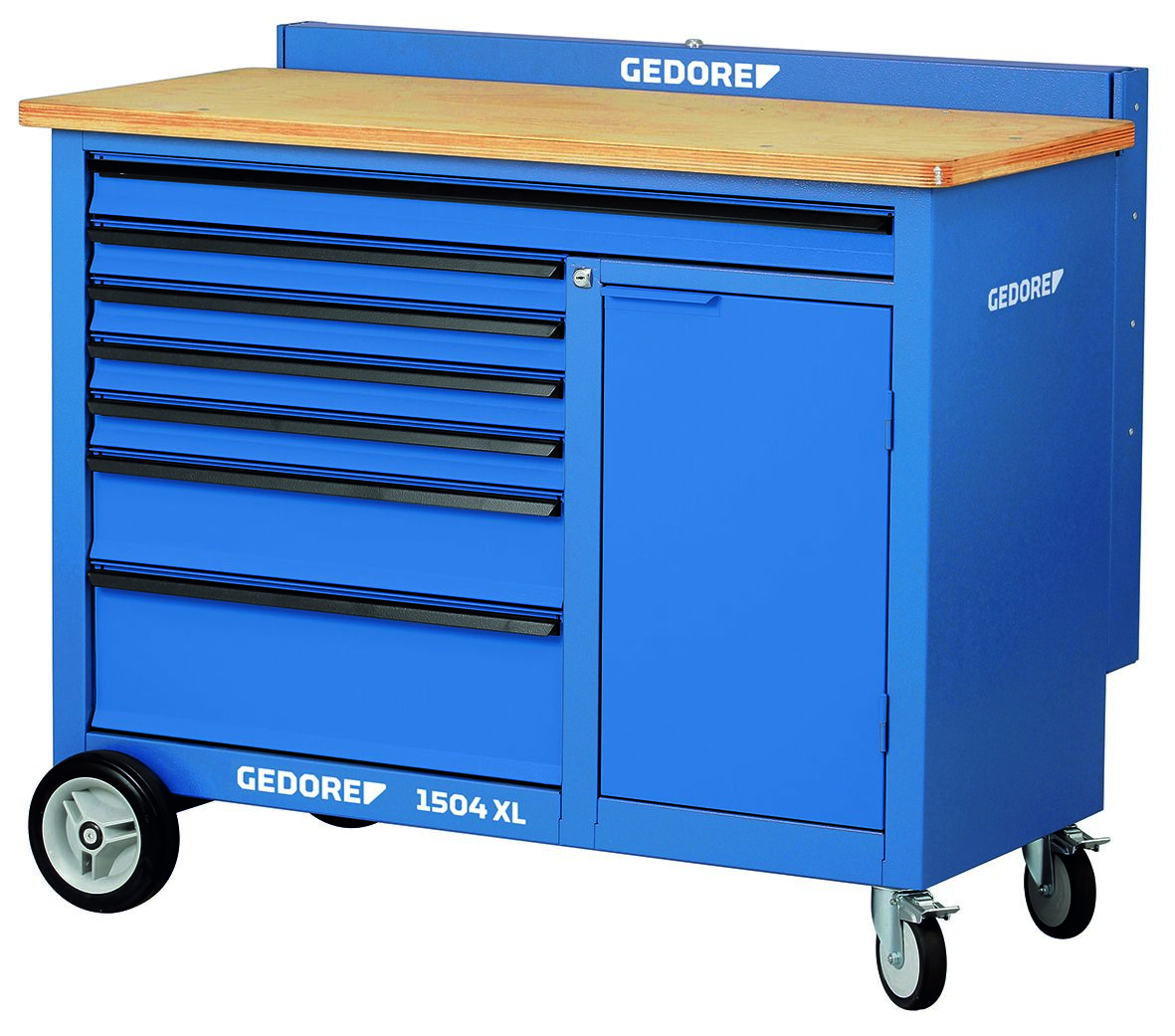

  • Rear panel R 1504 XL-L can be added
  • Further drawer versions upon request
  • Special colours and designs on request
  • Delivery without tools and accessories
  • Delivery without tools and accessories

Information

  • Contents (Qty of pieces):1
  • Total length [mm]:1.250 mm
  • Total width [mm]:630 mm
  • Total height [mm]:985 mm
  • Dimension (L x W x H):
  • Colour:GEDORE blue, RAL 5017
  • Material:sheet steel
  • No. of crosswise dividers:2
  • No. of lengthwise dividers:3
  • Drawer type:5x Type 1, H = 67 mm 1x Type 2, H = 137 mm 1x Type 3, H = 207 mm
  • Thickness (e.g. workplate):30 mm
  • Load capacity kg:750 kg
  • Worktop dimensions:1250 x 550 x 30 mm
  • Fixed roller Ø (2x):200
  • SwiveL castorØ w brakes (2x):125
  • Single pull-out stop:0
  • No. of shelves:1
  • No. of wheels:4
  • Working height:985
  • Surface:powder-coated
  • Static load carrying capa.:1000 kg
  • Load capacity per drawer:40 kg
  • Load heavy duty drawer:60 kg
