1.04/B Universal puller 2‑arm pattern, rigid legs with leg brake
Specification
About this product
- Due to the bending-moment reinforcement on its back face, the energy-saving design of the cross-beam means even stronger and safer pulling work
- Strong drop forged pattern
- Pulling legs forged from one piece
- The legs clamp automatically when under tension
- With leg brake - prevents unintentional leg slipping. The leg can be slid along the cross-beam at the push of a button
- Can be used as external and internal puller by repositioning the hooks
- Scale for uniform adjustment of the puller legs. Allows centred pulling, with optimised application of force, even when extremely high pulling forces are required

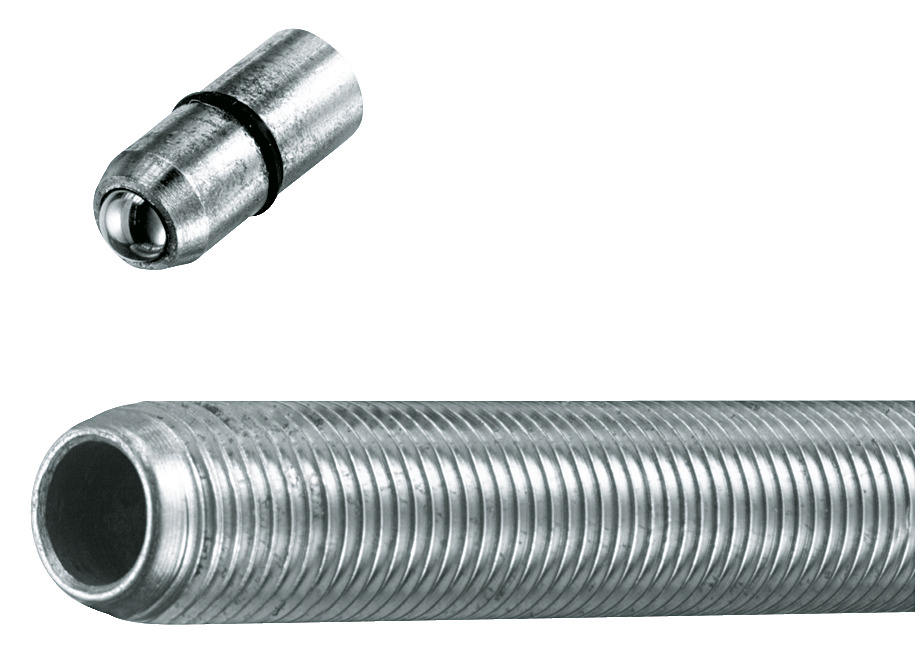

- Exchangeable spindle tip (ball or tip)
- Spindle thermo-chemically hardened
Information
- Contents (Qty of pieces): 1 tlg.
- Use: For removing drive pulleys, wheels, ball bearings etc.
- Version/Execution: 2-arm pattern
- Graduation: 1
- No. of hooks: 2
- reversible arms available: 1
- Clamping bracket available: 0
- No. of arms: 2
- REACH registration available: 0
- Hook brake available: 1
- Hook can be moved parallel: 1
- Quick release lever avail.: 0
- 3D-Data available: 0
- Spindle anti-slip device: 0
- Spindle Surface coating: Nitro-carburated
- Screws included: 0
- Anti-slip device spindle: 0
- Exchangeable spindle tip: 1
- retrofitable w hydr. spindle: 0
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
